1970 Yamaha HT1 (HT1) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1970 Yamaha HT1 (HT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

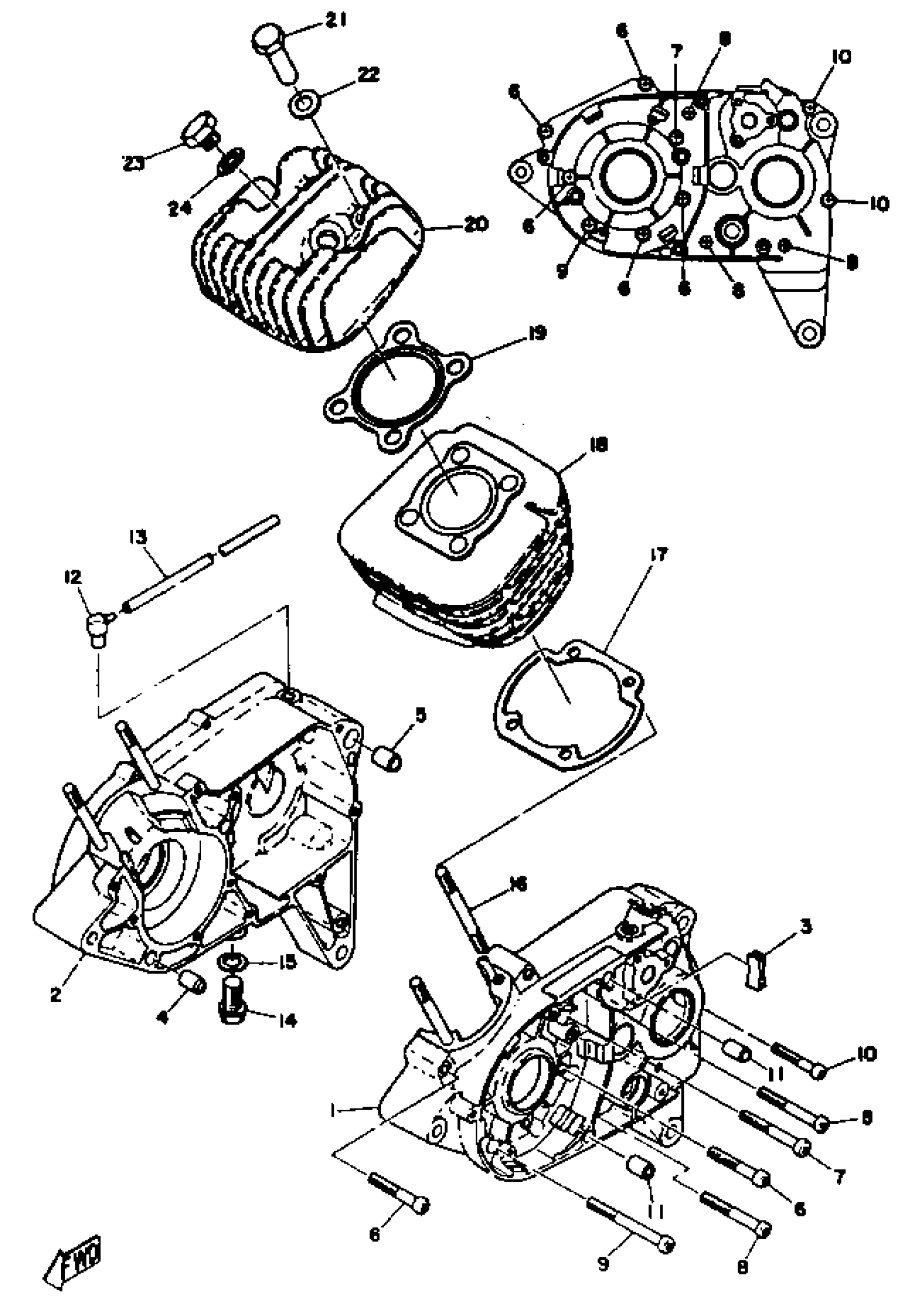

1970 Yamaha HT1 (HT1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(276-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(276-15121-03-00)

1
Out of stock

2

CRANKCASE 2

(276-15121-03-00)

1
Out of stock

3

GROMMET

248-15357-00-00

1

$6.58

In stock

4

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

5

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

6

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

7

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

8

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

9

SCREW PAN HEAD

98580-06565-00

—
Out of stock

10

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

11

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

12

BREATHER

583-15371-00-00

1
Out of stock

13

HOSE(7EG)

90446-07241-00

1

$7.42

In stock

14

1

$6.71

In stock

15

GASKET (3JD1)

90430-12207-00

—

$6.77

In stock

16

BOLT STUD 276113610000

90116-08065-00

—
Out of stock

17

GASKET, CYLINDER

3UL-11351-00-00

—

$6.17

In stock

18

CYLINDER 1

(276-11311-01-00)

1
Out of stock

18

CYLINDER 1

(276-11311-70-00)

1
Out of stock

19

GASKET,CYLINDER HEAD

276-11181-01-00

—

$26.88

In stock

20

HEAD, CYLINDER 1

(276-11111-01-94)

1
Out of stock

20

HEAD, CYLINDER 1

(276-11111-70-94)

1
Out of stock

21

NUT (3V6)

90179-08303-00

—

$7.14

In stock

22

WASHER PLATE 278111750000

90201-12362-00

—

$6.42

In stock

23

PLUG, BLIND

90340-14022-00

1
Out of stock

24

GASKET

214-11198-01-00

—

$2.66

In stock
