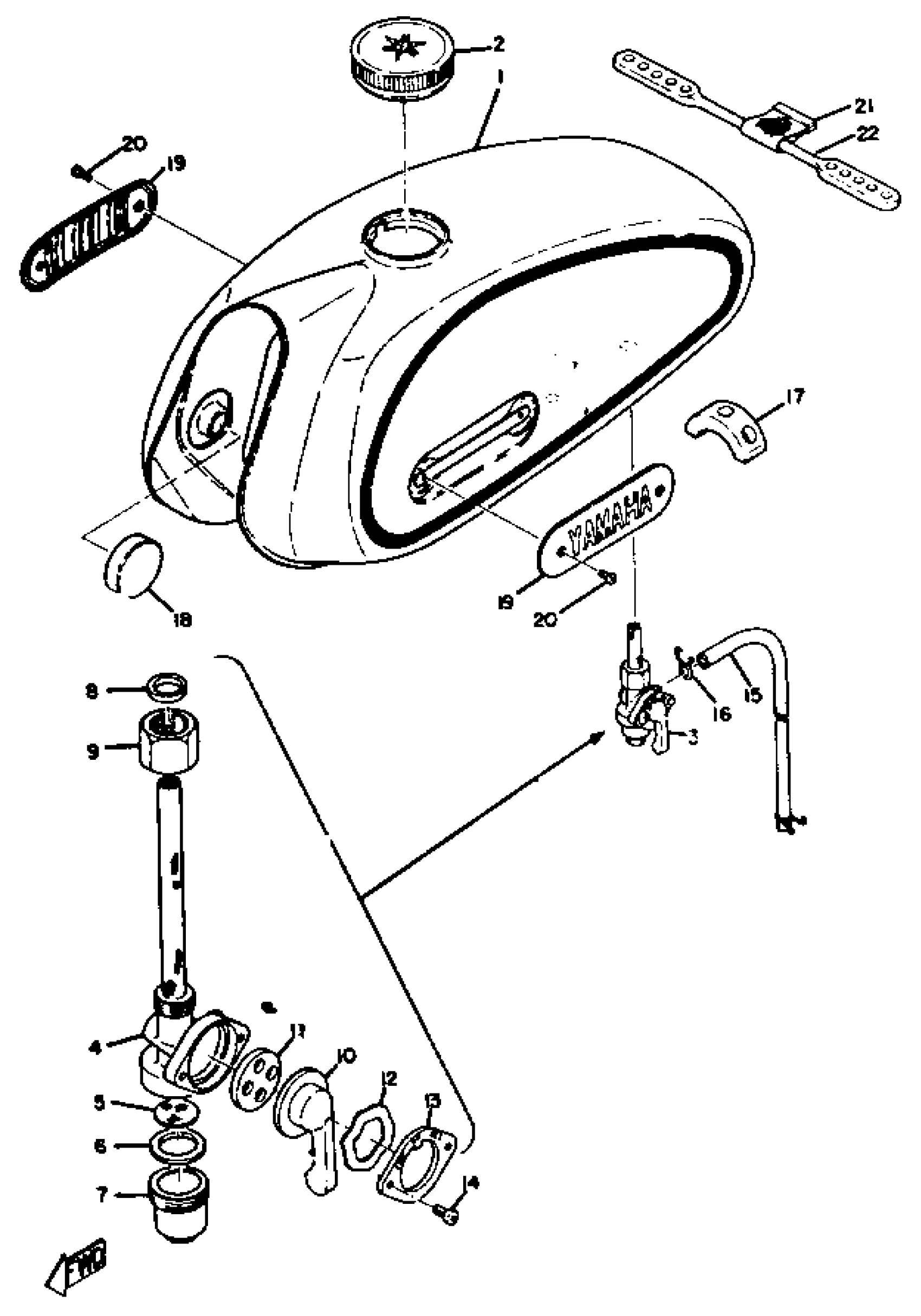

Yamaha HT1 (HT1) 1970 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(276-24110-00-01)

Unavailable

1

FUEL TANK

(276-24110-00-03)

Unavailable

1

FUEL TANK

(276-24110-00-04)

Unavailable

2

CAP ASSY

122-24610-01-00

$22.99

3

FUEL COCK ASSY 1

357-24500-20-00

$117.99

5

. NET, FILTER 2

304-24515-00-00

Unavailable

6

GASKET, FILTER

498-24522-00-00

$39.99

7

. CUP, FILTER

1A0-24521-01-00

Unavailable

8

GASKET, FUEL COCK

434-24532-00-00

$8.99

9

. NUT

132-24531-00-00

Unavailable

10

. LEVER, COCK

168-24524-00-00

Unavailable

11

VALVE

137-24523-00-00

$8.99

12

WASHER, WAVE

132-24518-00-00

$5.49

13

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

HOSE (L420)

90445-092K1-00

Unavailable

16

CLIP 101235600

90467-08003-00

Unavailable

16

CLIP

90467-100A1-00

Unavailable

17

DAMPER, LOCATING 3

(248-24183-00-00)

Unavailable

18

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

19

EMBLEM 1

276-24161-00-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

21

BAND, TANK FITTING 1

214-24173-00-00

Unavailable

22

BAND, TANK FITTING 2

248-24173-00-00

Unavailable
