FRONT FORK & FRONT FENDER

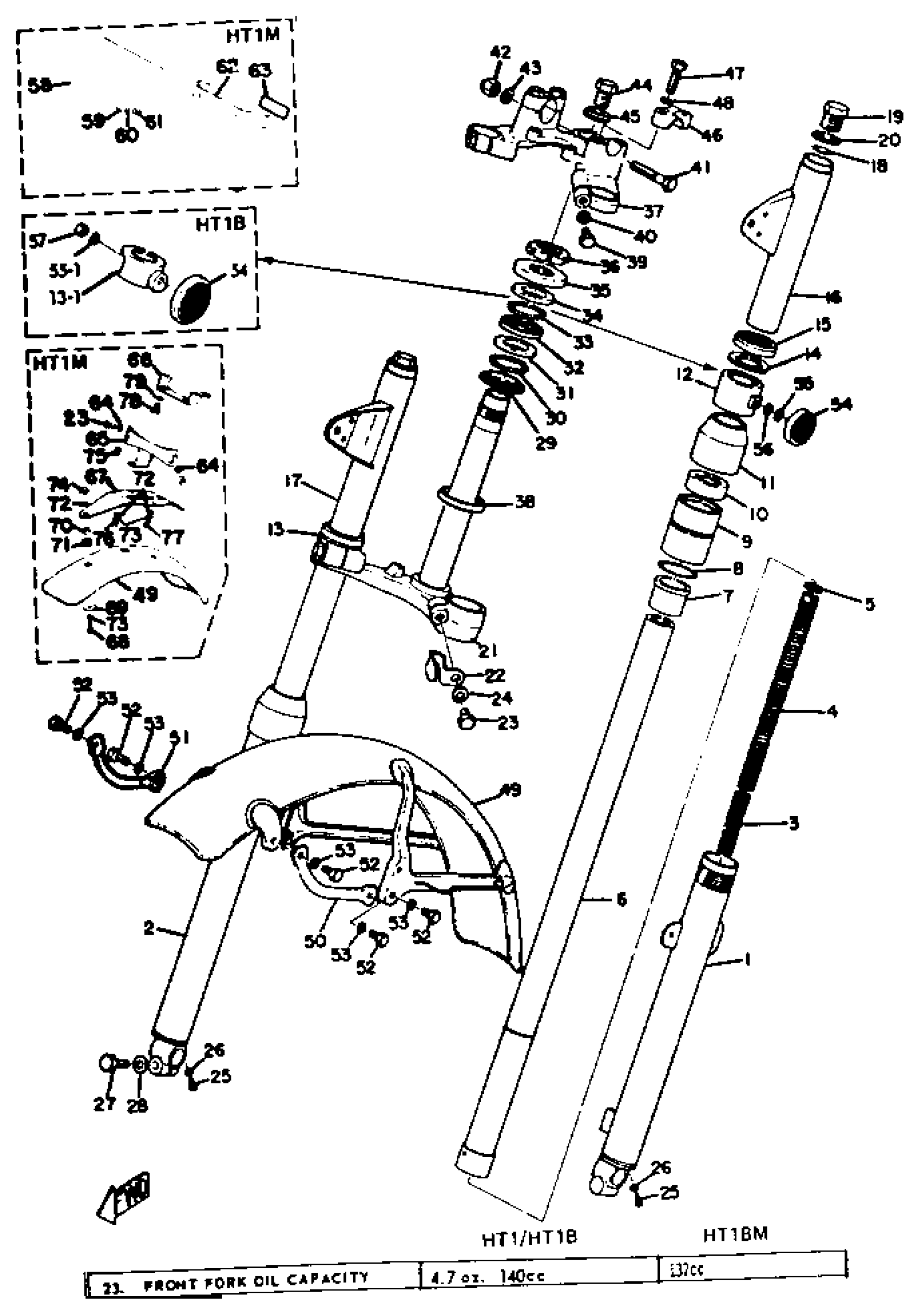

Yamaha HT1 (HT1) 1970 FRONT FORK & FRONT FENDER Diagram
#
1
TUBE, OUTER 1
(276-23126-50-35)
Unavailable
1
FRONT FORK ASSEMBLY
(277-23100-60-01)
Unavailable
1
FRONT FORK ASSEMBLY
(277-23100-61-02)
Unavailable
1
FRONT FORK ASSEMBLY
(319-23100-50-35)
Unavailable
2
TUBE, OUTER 2
(276-23136-50-35)
Unavailable
3
SPRING, REBOUND
(276-23151-50-00)
Unavailable
4
SPRING, FRONT FORK
(276-23141-50-00)
Unavailable
5
WASHER, SPRING UPR
(276-23149-50-00)
Unavailable
6
TUBE, INNER 1
(276-23124-50-00)
Unavailable
7
METAL, SLIDE 1
(357-23125-90-00)
Unavailable
8
. O-RING
122-23147-00-00
Unavailable
9
OUTER NUT
(196-23150-41-00)
Unavailable
10
OIL SEAL (5R6)
93110-27010-00
Unavailable
11
. SEAL, DUST
276-23144-50-00
Unavailable
12
COVER, OUTER 1
(277-23122-60-00)
Unavailable
13
COVER, OUTER 1
(277-23122-61-00)
Unavailable
14
PACKING(LAMP STAY)
164-23163-00-00
Unavailable
15
GUIDE, COVER LOWER
(276-23116-50-00)
Unavailable
16
COVER, UPPER 1
(276-23121-50-34)
Unavailable
16
COVER, UPPER 1
(276-23121-50-52)
Unavailable
17
COVER, UPPER 2
(276-23131-50-34)
Unavailable
17
. NO LONGER AVAILABLE
276-23131-50-52
Unavailable
18
GASKET
307-23114-00-00
Unavailable
19
BOLT, CAP
205-23111-40-00
Unavailable
20
. WASHER, CAP
276-23112-50-00
Unavailable
21
UNDER BRACKET
(276-23340-50-33)
Unavailable
21
UNDER BRACKET
(277-23340-60-33)
Unavailable
22
HOLDER, CABLE 1
(256-23318-60-00)
Unavailable
23
BOLT 1
122-23346-02-00
Unavailable
24
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
25
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
26
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
27
BOLT (682)
97013-08025-00
Unavailable
28
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
29
RACE, BALL 1
B6E-23411-00-00
Unavailable
30
BALL
93501-04011-00
Unavailable
31
RACE, BALL 2
B6E-23412-00-00
Unavailable
32
RACE, BALL 2
BP2-23412-00-00
Unavailable
33
BALL
93503-16003-00
Unavailable
34
COVER, BALL RACE
122-23416-00-00
Unavailable
35
COVER, BALL RACE
122-23416-00-00
Unavailable
36
NUT
90179-25004-00
Unavailable
37
CROWN, HANDLE
(276-23435-01-33)
Unavailable
38
SEAL, DUST
164-23462-00-00
Unavailable
39
BOLT, HEXAGON
97013-08030-00
Unavailable
40
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
41
BOLT
97013-08045-00
Unavailable
42
NUT, CROWN
95303-08800-00
Unavailable
43
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
44
BOLT
90101-14113-00
Unavailable
45
WASHER, SPECIAL SHAPE
90209-14022-00
Unavailable
46
HOLDER, HANDLE UPR
(315-23441-00-93)
Unavailable
47
BOLT, HEXAGON
97013-08030-00
Unavailable
48
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
49
FENDER, FRONT
(276-21510-00-35)
Unavailable
49
FENDER, FRONT
(284-21510-00-35)
Unavailable
50
STAY, FENDER 1
(276-21513-00-35)
Unavailable
51
STAY, FENDER 2
(276-21514-00-35)
Unavailable
52
BOLT (661)
97013-06012-00
Unavailable
53
WASHER, SPRING
92995-06100-00
Unavailable
54
REFLECTOR, FRONT 1
(233-85111-00-00)
Unavailable
54
. REFLECTOR, FRONT 1
341-85111-00-00
Unavailable
55
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
56
. WASHER, PLAIN
92990-05200-00
Unavailable
57
NUT, HEXAGON (663)
95380-05600-00
Unavailable
58
PLATE, NUMBER
(263-23485-00-00)
Unavailable
59
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
60
WASHER, SPRING
92995-06100-00
Unavailable
61
WASHER, PLATE
90201-06086-00
Unavailable
62
STAY, PLATE
(319-23487-00-00)
Unavailable
63
O-RING
(93210-67057-00)
Unavailable
64
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
65
STAY, FENDER 1
(284-21513-00-35)
Unavailable
66
STAY, FENDER 2
284-21514-00-35
Unavailable
67
BRACKET, FENDER
(284-21512-00-35)
Unavailable
68
BOLT(3DM)
97024-06020-00
Unavailable
69
WASHER PLATE 256216150000
90201-06062-00
Unavailable
70
COLLAR (J10)
90387-06026-00
Unavailable
71
GROMMET (1E5)
90480-13163-00
Unavailable
72
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
73
WASHER, SPRING
92995-06100-00
Unavailable
74
NUT (J17)
95380-06800-00
Unavailable
75
BOLT (661)
97013-06012-00
Unavailable
76
NUT, HEXAGON
95380-06600-00
Unavailable
77
BOLT (661)
97013-06012-00
Unavailable
78
BOLT, HEXAGON
97013-08016-00
Unavailable
79
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
