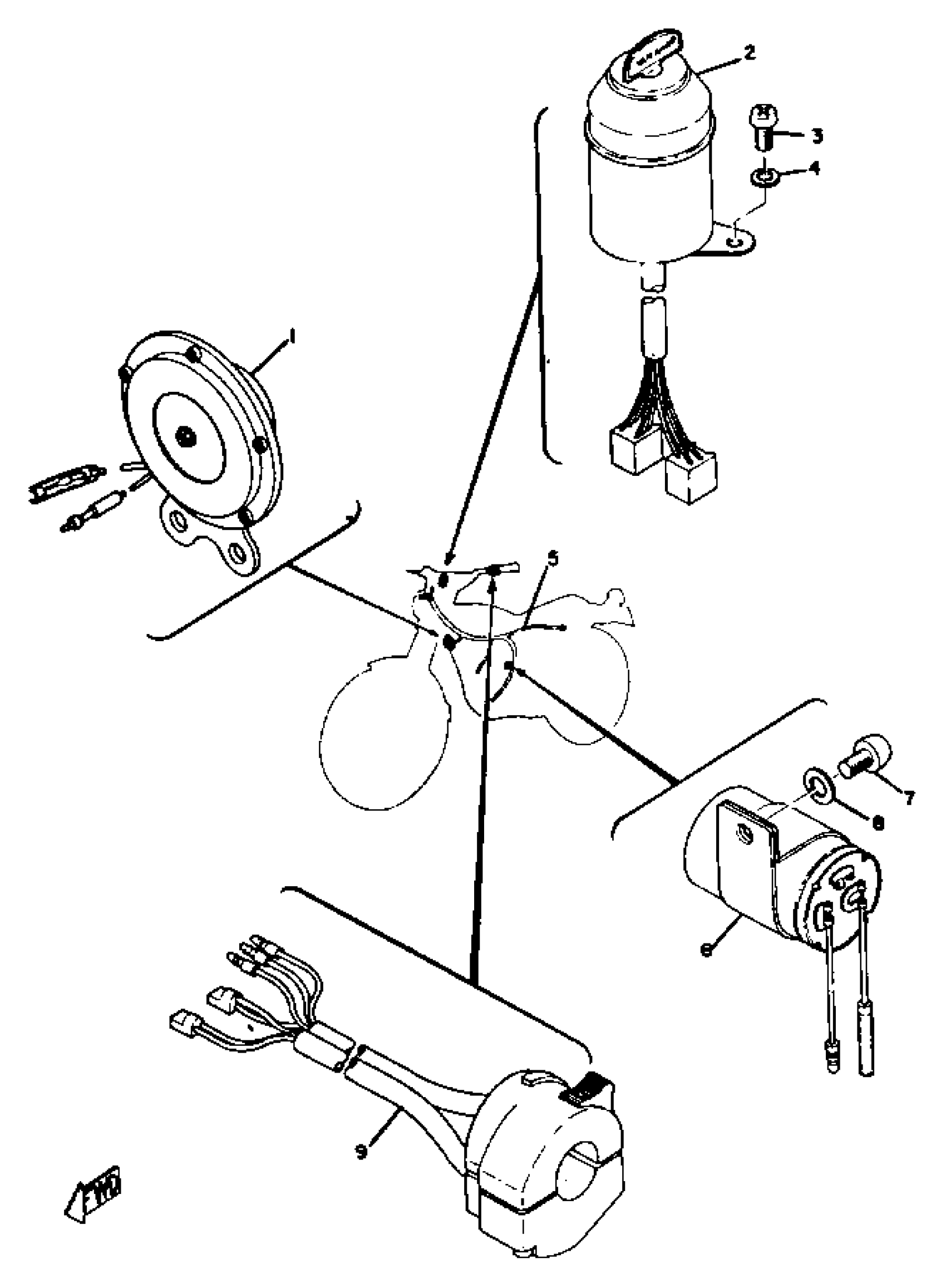

Yamaha HT1 (HT1) 1970 ELECTRICAL (HT1-B) Diagram

#

Description

Price

1

HORN

266-83371-12-00

Unavailable

2

MAIN SWITCH ASSEMBLY

(276-82508-20-00)

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WIRE HARNESS ASSEMBLY

(277-82590-21-00)

Unavailable

6

FLASHER RELAY ASSEMBLY

(115-83350-62-00)

Unavailable

7

SCREW PAN HEAD

98580-06010-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SWITCH, HANDLE 3

233-83973-00-94

Unavailable
