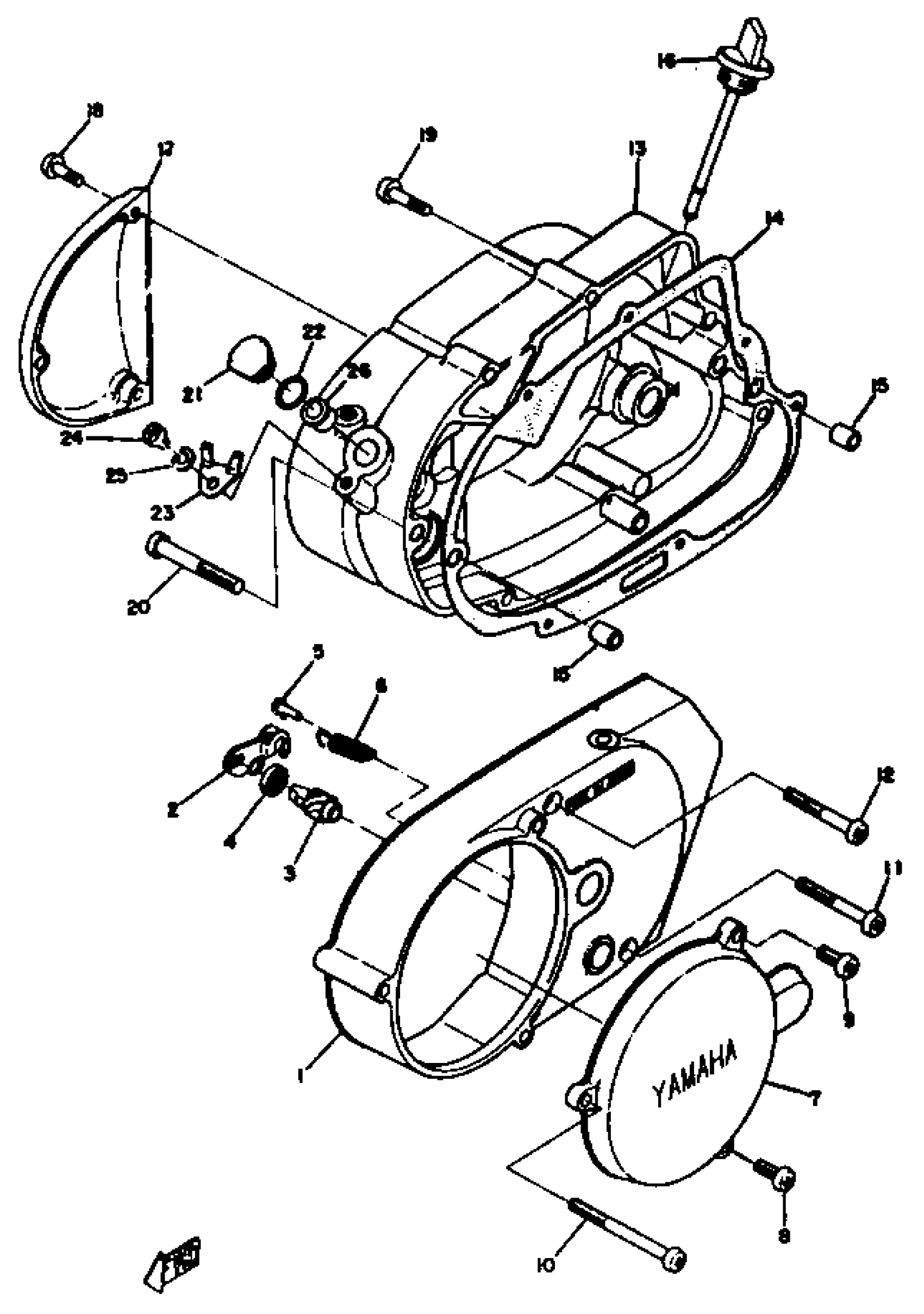

Yamaha HT1 (HT1) 1970 CRANKCASE COVER Diagram

#

Description
Price

1

CRANKCASE COVER ASSY (L.H)

382-W1541-60-00

Unavailable

2

. LEVER, PUSH

276-16342-00-00

Unavailable

3

SCREW, PUSH

241-16341-01-00

$31.99

4

SEAL 0IL (2V7)

93104-10085-00

$9.49

5

HOOK, SPRING

132-16346-00-00

$9.99

6

SPRING TENSION 132163450000

90506-10019-00

$7.49

7

COVER, 1

276-15415-11-00

Unavailable

8

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

9

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

10

SCREW, BIND (JH1)

98580-06560-00

Unavailable

11

SCREW PAN HEAD

98580-06550-00

$8.49

12

SCREW PAN HEAD

98580-06545-00

$5.60

13

COVER, CRANKCASE R 001

(276-15421-02-00)

Unavailable

13

COVER, CRANKCASE R 001

(276-15421-02-00)

Unavailable

13

COVER, CRANKCASE R 001

(276-15421-02-00)

Unavailable

14

GASKET, CRANKCASE COVER 1

3GY-15451-00-00

Unavailable

14

GASKET, CRANKCASE COVER 1

3GY-15451-00-00

Unavailable

15

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

16

PLUG, OIL LEVEL

180-15362-00-00

Unavailable

16

PLUG, OIL LEVEL

(276-15362-00-00)

Unavailable

16

PLUG, OIL LEVEL

315-15362-01-00

Unavailable

17

COVER, OIL PUMP

(248-15416-01-Y4)

Unavailable

18

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

19

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

20

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

21

CAP, HOUSING

(241-17819-00-00)

Unavailable

22

O-RING (137)

93210-13016-00

Unavailable

23

STOPPER

5U7-17812-00-00

Unavailable

24

SCREW PAN HEAD

98580-06010-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

BUSH (214-17843-00)

90381-08002-00

Unavailable
