CRANK & PISTON

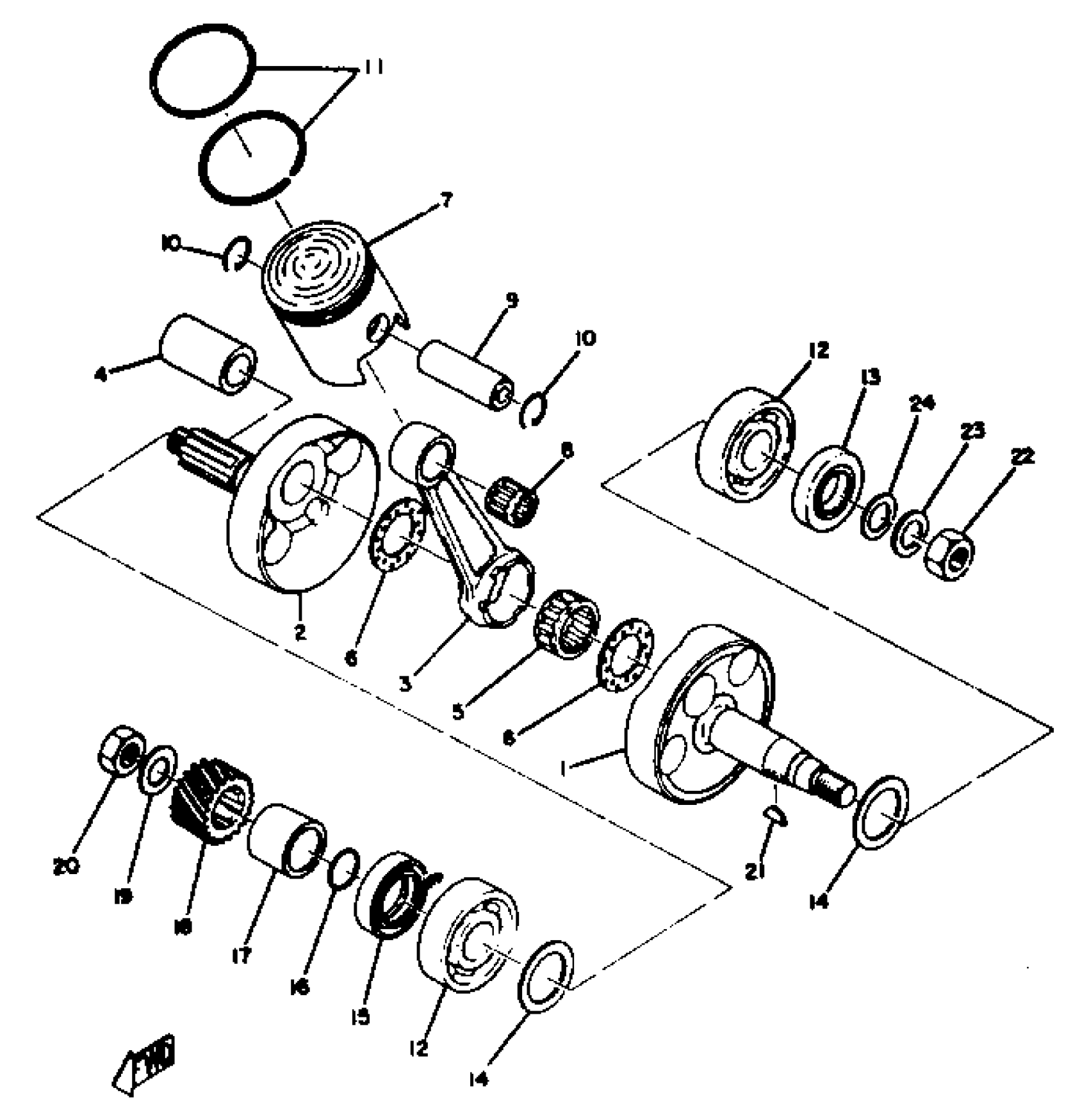

Yamaha HT1 (HT1) 1970 CRANK & PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
(276-11400-01-00)
Unavailable
1
CRANK 1
(276-11412-01-00)
Unavailable
1
RING, PISTON
(276-11611-70-00)
Unavailable
1
RING, PISTON 1ST
(276-11611-80-00)
Unavailable
1
RING, PISTON 2ND (2ND O.S)
276-11611-90-00
Unavailable
2
CRANK 2
(276-11422-00-00)
Unavailable
3
ROD, CONNECTING
164-11651-00-00
Unavailable
5
BRG,CYL-CAL ROLLER 14G TM
93310-42237-00
Unavailable
6
WASHER (29L)
90209-22248-00
Unavailable
7
PISTON STD
(276-11631-00-96)
Unavailable
7
PISTON STD
(276-11631-70-96)
Unavailable
7
PISTON 1 O/S 0.25 (50.25MM 1ST O.S)
276-11635-00-00
Unavailable
7
PISTON 1 O/S 0.25
(276-11635-70-00)
Unavailable
7
PISTON 2 O/S 0.50 (50.50MM 2ND O.S)
276-11636-00-00
Unavailable
7
PISTON 2 O/S 0.50
(276-11636-70-00)
Unavailable
8
BRG,CYL-CAL ROLLER 7G TM
93310-21403-00
Unavailable
9
PIN, PISTON
131-11633-00-00
Unavailable
10
CIRCLIP 131116340000
93450-15023-00
Unavailable
11
PISTON RINGSET STD
2VT-11601-01-00
Unavailable
11
PISTON RINGSET 1ST
2VT-11601-11-00
Unavailable
11
PISTON RINGSET 2ND
2VT-11601-21-00
Unavailable
12
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
13
OIL SEAL(4BA)
93102-20447-00
Unavailable
14
SHIM, CRANK 1
136-11561-00-03
Unavailable
14
SHIM, CRANK 1
136-11561-00-04
Unavailable
14
SHIM, CRANK 1
136-11561-00-05
Unavailable
15
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
16
O-RING(3KX)
93210-180A6-00
Unavailable
17
COLLAR, DISTANCE 2761613600
90387-20175-00
Unavailable
18
GEAR, PRI DRIVE
(276-16111-00-00)
Unavailable
19
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
20
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
21
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
22
NUT(3DM)
95304-12600-00
Unavailable
23
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
24
WASHER (492)
90201-12535-00
Unavailable
