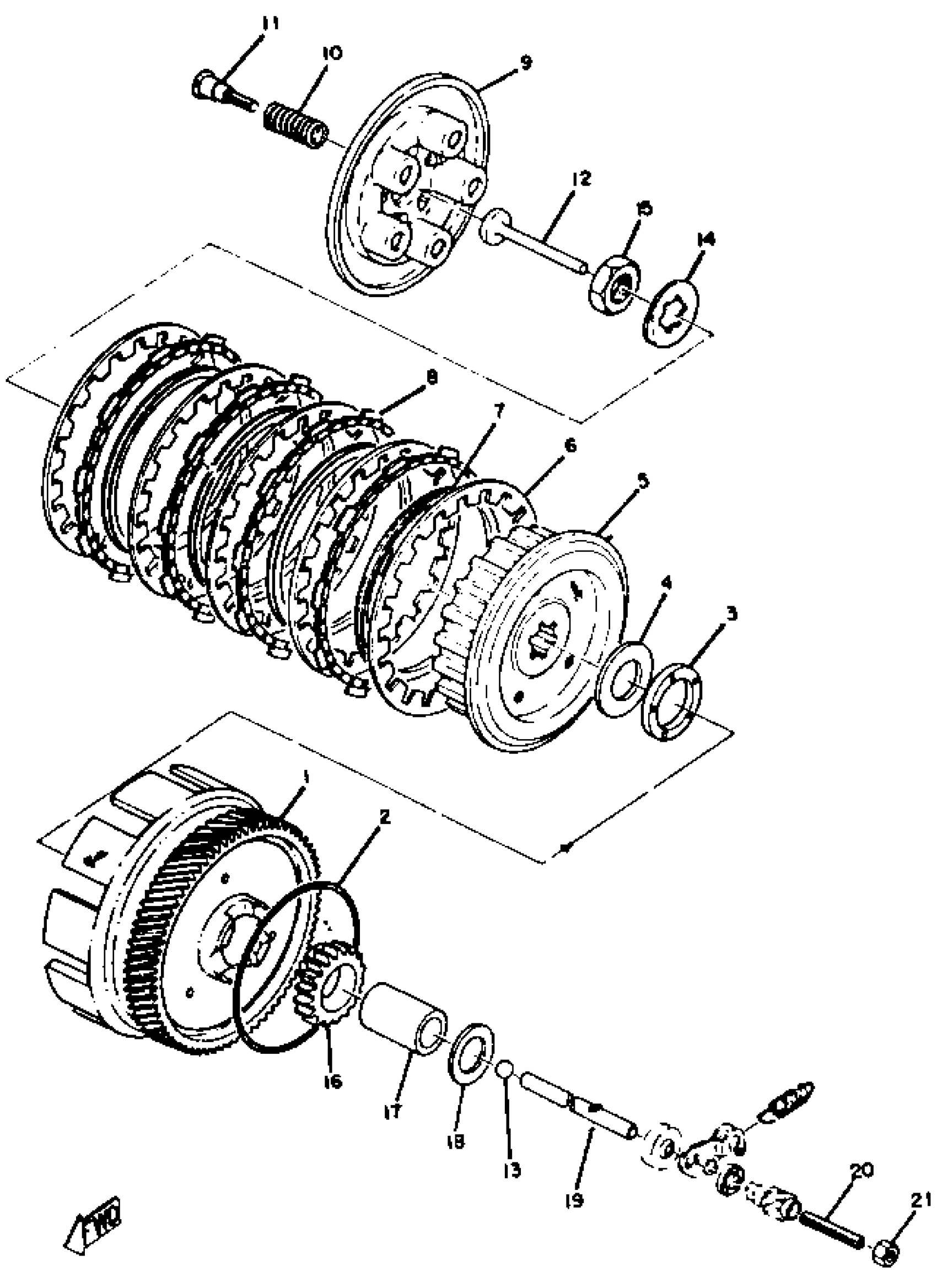

Yamaha HT1 (HT1) 1970 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

(276-16150-00-00)

Unavailable

1

CLUTCH ASSEMBLY

(276-16301-01-00)

Unavailable

2

RING, FRICTION

132-16369-00-00

$9.99

3

. BEARING, FLAT #41

93341-22302-00

Unavailable

4

PLATE, THRUST 1

(276-16154-00-00)

Unavailable

5

. BOSS, CLUTCH

132-16371-02-00

Unavailable

6

PLATE, CLUTCH 1

336-16324-10-00

$18.49

7

RING, CUSHION

137-16367-00-00

$17.49

8

PLATE, FRICTION

3HA-16321-00-00

$31.99

9

PLATE, PRESSURE

132-16351-00-00

$55.99

10

SPRING (137-16333-00)

90501-20122-00

$4.99

11

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

12

ROD,PUSH (1)

137-16356-00-00

$31.99

13

BALL

93501-04011-00

$8.49

14

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

15

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

16

GEAR, KICK PINION

(164-15631-01-00)

Unavailable

17

SPACER (517)

90560-17146-00

Unavailable

18

PLATE, THRUST

122-16164-00-00

Unavailable

19

ROD, PUSH 2

276-16357-00-00

Unavailable

20

BOLT SET 241163430000

90113-06013-00

Unavailable

21

NUT(650)

95380-06700-00

Unavailable
