CARBURETOR

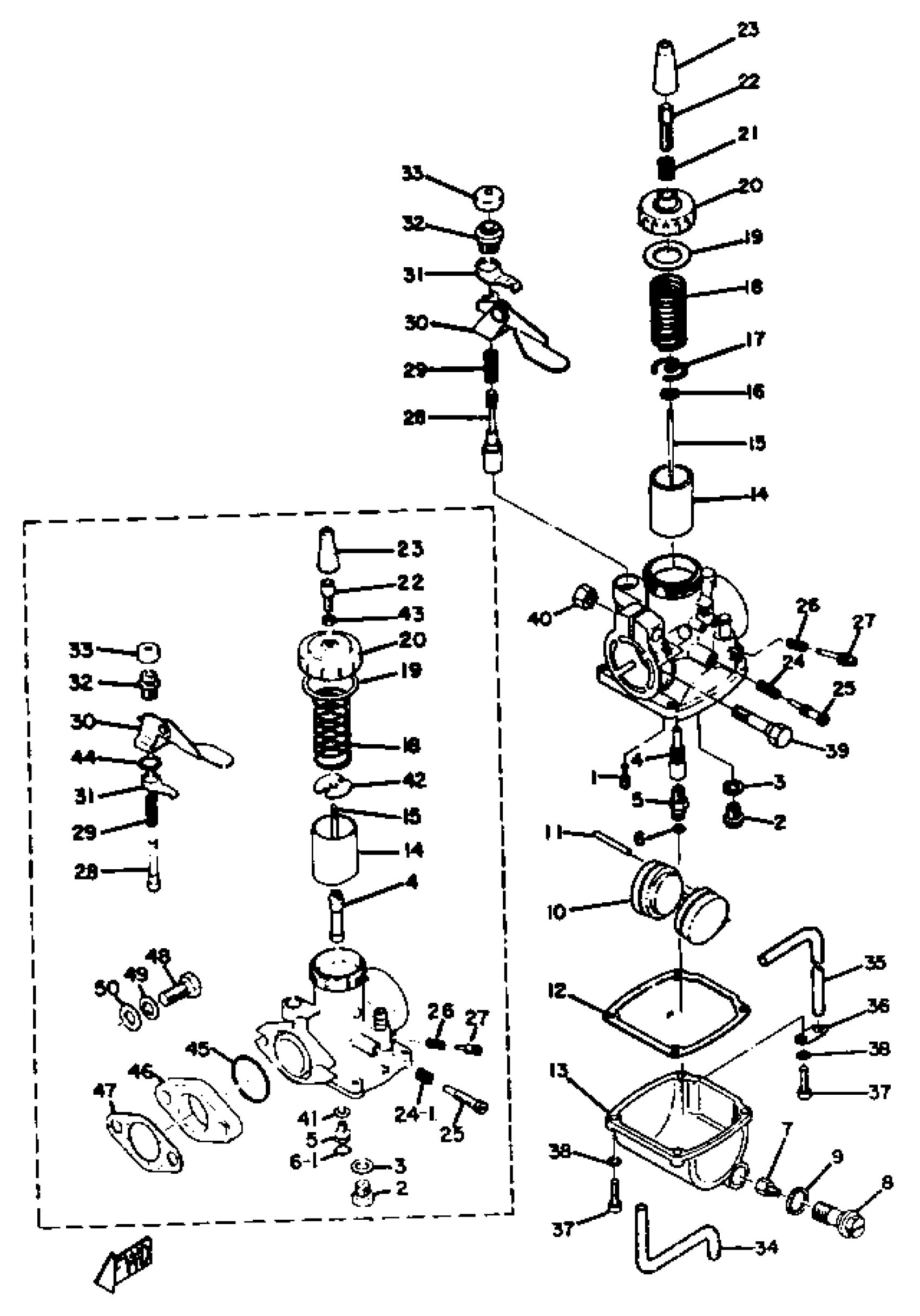

Yamaha HT1 (HT1) 1970 CARBURETOR Diagram
#
1
SPRING, THROTTLE STOP
127-14133-00-00
Unavailable
1
JET, PIL0T (# 30)
193-14142-30-A0
Unavailable
1
CARBURETOR ASSEMBLY 1
(276-14101-70-00)
Unavailable
1
CARBURETOR ASSEMBLY 1
(277-14101-60-00)
Unavailable
2
VALVE SEAT ASSY
353-14190-15-00
Unavailable
4
NOZZLE, MAIN
(174-14141-26-00)
Unavailable
4
NOZZLE, MAIN
(248-14141-28-00)
Unavailable
5
SETTER, NEEDLE JET
(248-14145-01-00)
Unavailable
5
. SETTER, NEEDLE JET
276-14145-00-00
Unavailable
7
. JET, MAIN #80
137-14143-16-00
Unavailable
7
. JET, MAIN #85
137-14143-17-00
Unavailable
7
. JET, MAIN #90
137-14143-18-00
Unavailable
7
. JET, MAIN #120
137-14143-24-00
Unavailable
7
JET, MAIN #130
137-14143-26-A0
Unavailable
7
JET, MAIN #140
137-14143-28-A0
Unavailable
8
BOLT,BANJO
479-14166-00-00
Unavailable
9
. GASKET
248-14198-00-00
Unavailable
10
. FLOAT
156-14185-00-00
Unavailable
10
FLOAT
205-14185-00-00
Unavailable
11
PIN, FLOAT
127-14186-00-00
Unavailable
12
. GASKET, FLOAT CHAMBER
156-14184-00-00
Unavailable
12
GASKET, FLOAT CHAMBER
164-14184-00-00
Unavailable
13
BODY, FLOAT CHMBR 1
(248-14181-01-00)
Unavailable
13
BODY, FLOAT CHMBR 1
(276-14181-00-00)
Unavailable
14
VALVE, THROTTLE 1
(193-14112-20-00)
Unavailable
14
. VALVE, THROTTLE 1
204-14112-20-00
Unavailable
15
. NEEDLE
156-14116-03-00
Unavailable
15
NEEDLE
(156-14116-07-00)
Unavailable
16
CLIP
137-14137-00-00
Unavailable
17
. SEAT, SPRING
137-14136-00-00
Unavailable
18
SPRING, THROTTLE VALVE
248-14131-00-00
Unavailable
18
SPRING, THROTTLE VALVE
3X3-14131-00-00
Unavailable
19
GASKET
193-14126-00-00
Unavailable
19
GASKET
246-14126-00-00
Unavailable
20
TOP, MIXING CHAMBER
193-14158-00-00
Unavailable
20
. TOP, MIXING CHAMBER
802-14158-00-00
Unavailable
21
SPRING, THRTL STOP
(193-14133-00-00)
Unavailable
22
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
22
SCREW, CABLE ADJUSTING
(193-14124-26-00)
Unavailable
23
. UNAVAILABLE IN PRICE BOOK
174-14179-01-00
Unavailable
23
CAP
8A7-14169-00-00
Unavailable
24
SPRING, AIR ADJUSTING
174-14134-00-00
Unavailable
25
THROTTLE SCREW SET
40T-14103-00-00
Unavailable
25
THROTTLE SCREW SET
53L-14103-00-00
Unavailable
26
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
26
SPRING, AIR ADJUSTING
174-14134-00-00
Unavailable
27
AIR SCREW SET
22K-14104-00-00
Unavailable
27
AIR SCREW SET
23X-14104-00-00
Unavailable
28
PLUNGER, STARTER
132-14171-00-00
Unavailable
28
. PLUNGER, STARTER
174-14171-00-00
Unavailable
29
SPRING, PLUNGER
132-14135-00-00
Unavailable
29
SPRING, PLUNGER
156-14135-00-00
Unavailable
30
. LEVER, STARTER 1
(248-14175-00-00)
Unavailable
30
LEVER, STARTER 1
(276-14175-00-00)
Unavailable
31
. PLATE, STARTER LEVER
(170-14178-00-00)
Unavailable
31
PLATE, STARTER LVR
(174-14178-00-00)
Unavailable
32
CAP, PLUNGER
(132-14174-00-00)
Unavailable
32
. CAP, PLUNGER
802-14174-00-00
Unavailable
33
COVER, PLUNGER CAP
132-14173-00-00
Unavailable
33
. COVER, PLUNGER CAP
802-14173-00-00
Unavailable
34
PIPE
23F-14197-00-00
Unavailable
35
PIPE, AIR VENT
183-14197-01-00
Unavailable
36
PLATE
132-14146-00-00
Unavailable
37
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
38
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
39
SCREW, BODY FITTING
(137-14125-00-00)
Unavailable
40
NUT, HEXAGON
95380-06600-00
Unavailable
41
WASHER,MAIN JET
137-14153-00-00
Unavailable
42
. STOPPER, CABLE
246-14132-00-00
Unavailable
43
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
44
WASHER, STARTER LVR
(132-14179-00-00)
Unavailable
45
O-RING
248-14147-00-00
Unavailable
46
MANIFOLD, INTAKE
(248-13555-01-00)
Unavailable
47
GASKET, MANIFOLD
248-13556-71-00
Unavailable
48
BOLT, HEXAGON
97013-08030-00
Unavailable
49
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
50
WASHER, PLAIN
92990-08200-00
Unavailable
