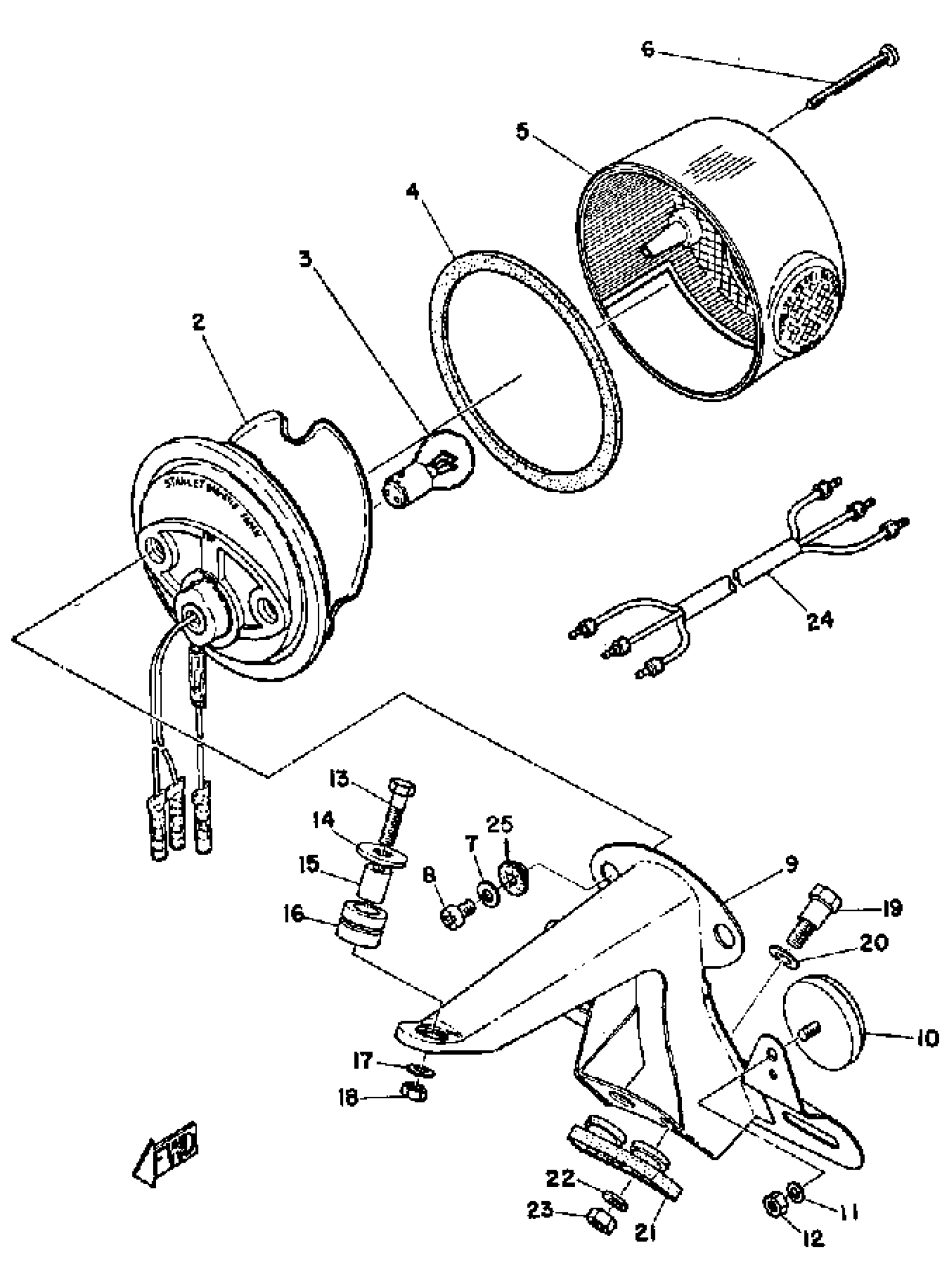

Yamaha HS1 (HS1) 1970 TAIL LAMP (HS1-B) Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

256-84710-61-00

Unavailable

2

BASE, TAILLIGHT

(275-84511-61-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, LENS

275-84523-60-00

Unavailable

5

LENS, TAILLIGHT

(275-84521-60-00)

Unavailable

6

SCREW, PAN HEAD

98507-04050-00

$3.02

7

SCREW

(479-84526-00-00)

Unavailable

8

WASHER, SPECIAL

2H7-84754-00-00

$10.99

9

. BRACKET, LICENSE

341-84751-61-93

Unavailable

10

REFLECTOR, FRONT 1

(278-85111-00-00)

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

NUT, HEXAGON (663)

95380-05600-00

$8.49

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER

90209-06012-00

$5.60

15

COLLAR (J10)

90387-06026-00

$8.49

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

BOLT 168217380000

90109-06017-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

DAMPER

214-84553-01-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

CORD, TAILLIGHT

(287-84717-60-00)

Unavailable

25

. DAMPER

275-84527-60-00

Unavailable
