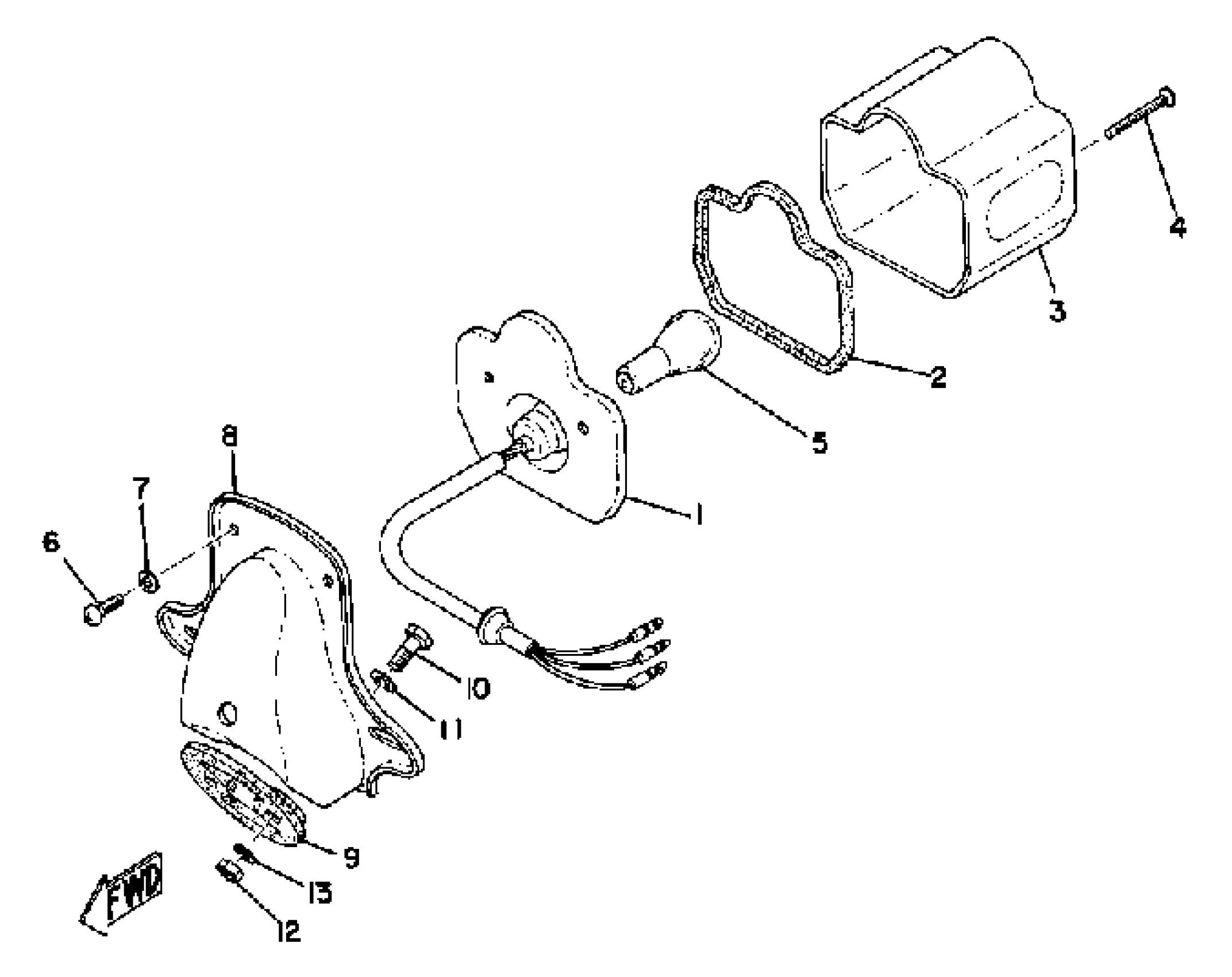

Yamaha HS1 (HS1) 1970 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(202-84710-60-00)

Unavailable

1

. BASE, TAILLIGHT

(202-84711-60-00)

Unavailable

2

SEAT, BASE

(168-84712-60-00)

Unavailable

3

. LENS, TAILLIGHT

(168-84721-60-00)

Unavailable

4

. SCREW, RIM ADJUSTING

3AA-84331-00-00

Unavailable

5

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

6

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

BRACKET, LICENSE

(164-84751-60-35)

Unavailable

9

DAMPER

(164-84753-60-00)

Unavailable

10

BOLT 168217380000

90109-06017-00

Unavailable

11

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable
