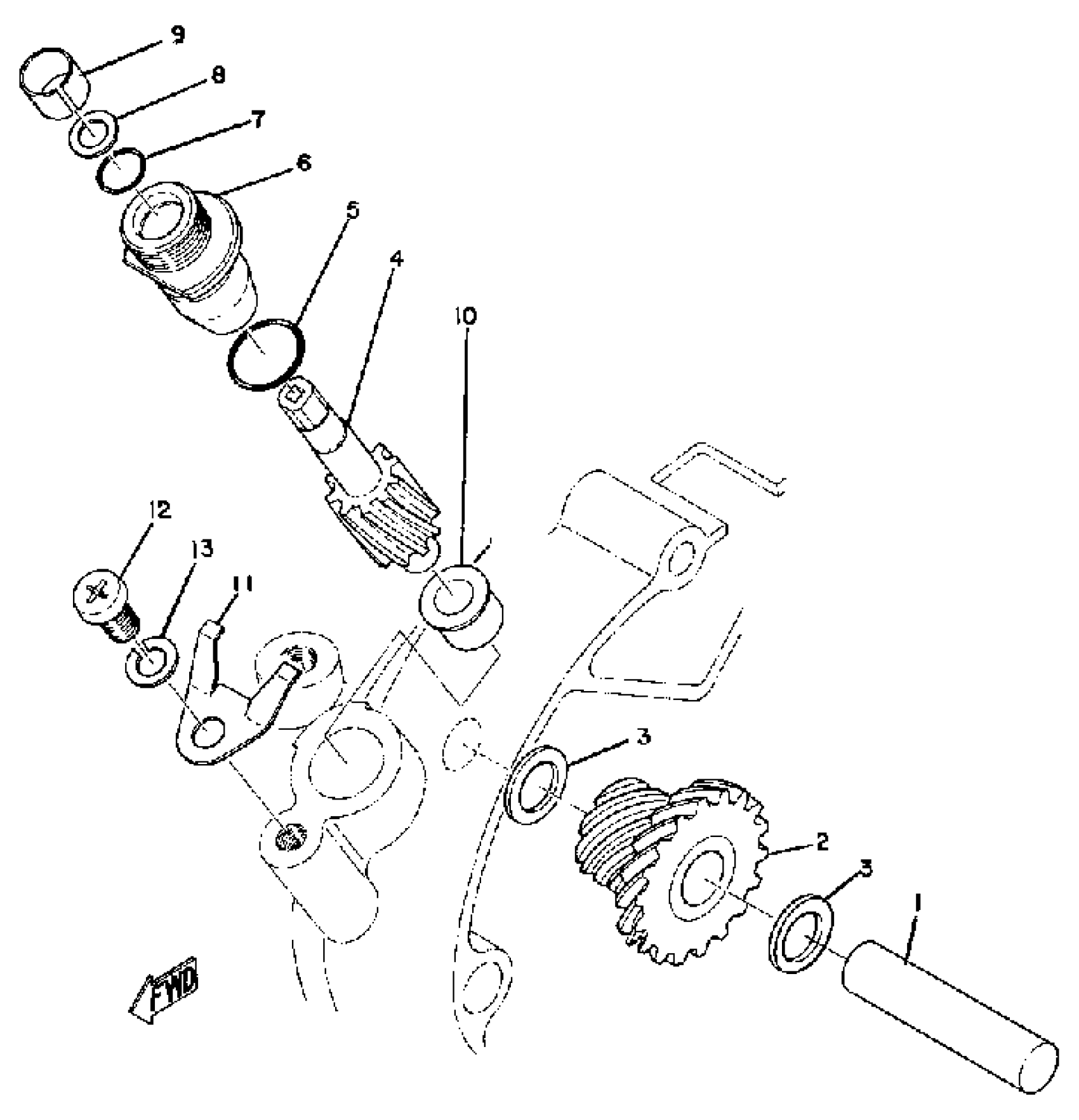

Yamaha HS1 (HS1) 1970 TACHOMETER GEAR Diagram

AXLE, DRIVE GEAR

237-17861-00-00

Unavailable

GEAR, DRIVE

248-17831-02-00

Unavailable

SHIM

248-17837-00-00

Unavailable

GEAR, DRIVEN

(248-17841-00-00)

Unavailable

O-RING (137)

93210-13016-00

$7.49

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

Unavailable

O-RING (214)

93210-07100-00

$7.49

SHIM (7.5-10.8-0.4)

214-17847-00-00

Unavailable

BUSH, FORMED (214-17815-00) 001

90383-10005-00

Unavailable

BUSH (214-17843-00)

90381-08002-00

$11.49

STOPPER

5U7-17812-00-00

Unavailable

SCREW PAN HEAD

98580-06010-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable
