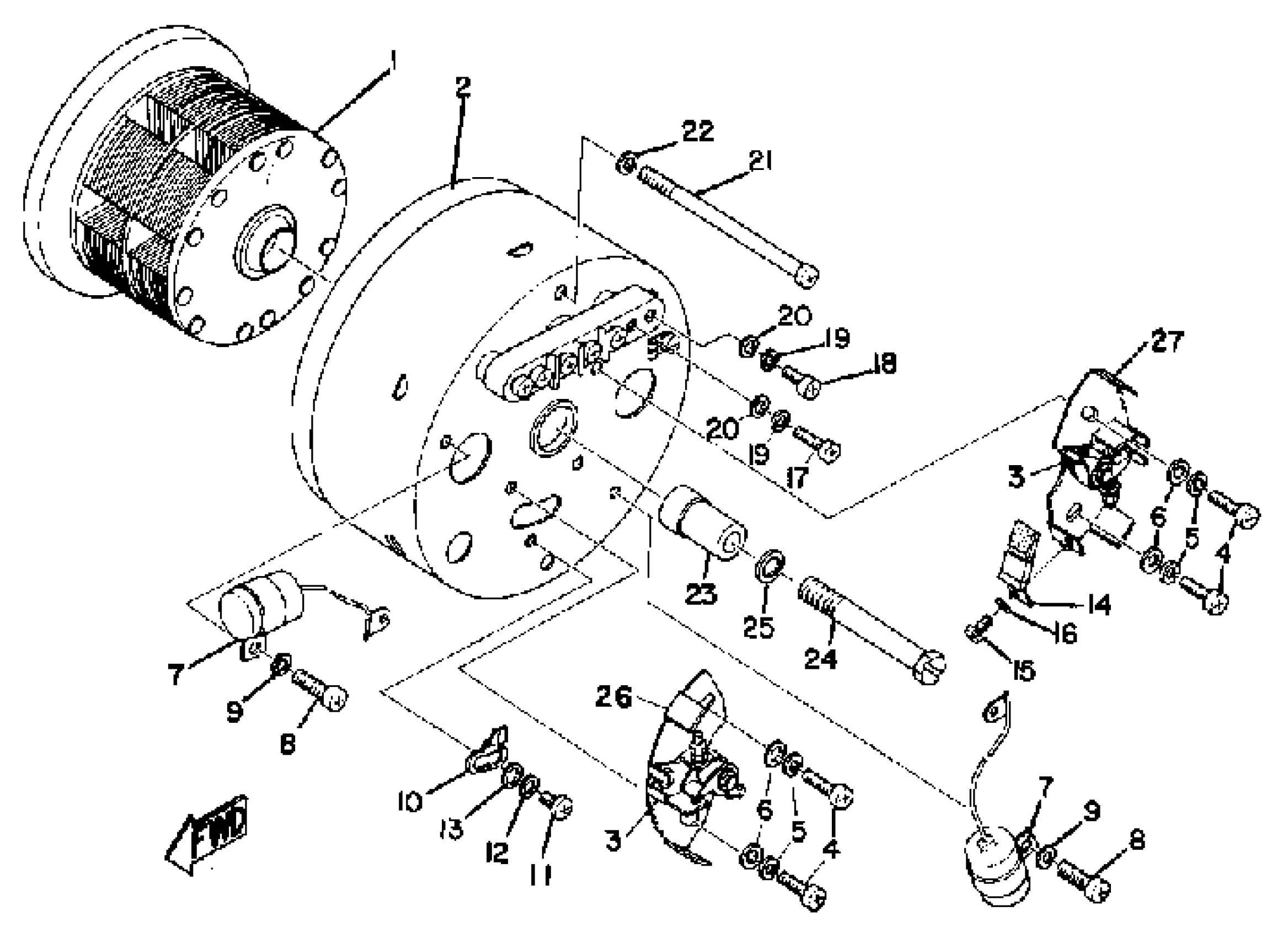

Yamaha HS1 (HS1) 1970 MAGNETO GENERATOR Diagram

#

Description
Price

1

AC MAGNET GEN ASSEMBLY

(241-81400-11-00)

Unavailable

1

ROTOR ASSEMBLY

(241-81450-11-00)

Unavailable

2

STATOR ASSEMBLY

(183-81410-12-00)

Unavailable

3

CONTACT BREAKER ASSY

183-81421-19-00

Unavailable

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

7

.. CONDENSER 1

183-81425-11-00

Unavailable

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

PLATE, TIMING

(183-81432-10-00)

Unavailable

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

14

LUBRICATOR

(183-81431-10-00)

Unavailable

15

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

16

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

17

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

20

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

21

SCREW, STATOR

(183-81435-10-00)

Unavailable

22

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

23

CAM

(183-81451-13-00)

Unavailable

24

BOLT

(195-81452-10-00)

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

26

PLATE, BREAKER

(183-81428-10-00)

Unavailable

27

PLATE, BREAKER

(183-81429-10-00)

Unavailable
