1970 Yamaha HS1 (HS1) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

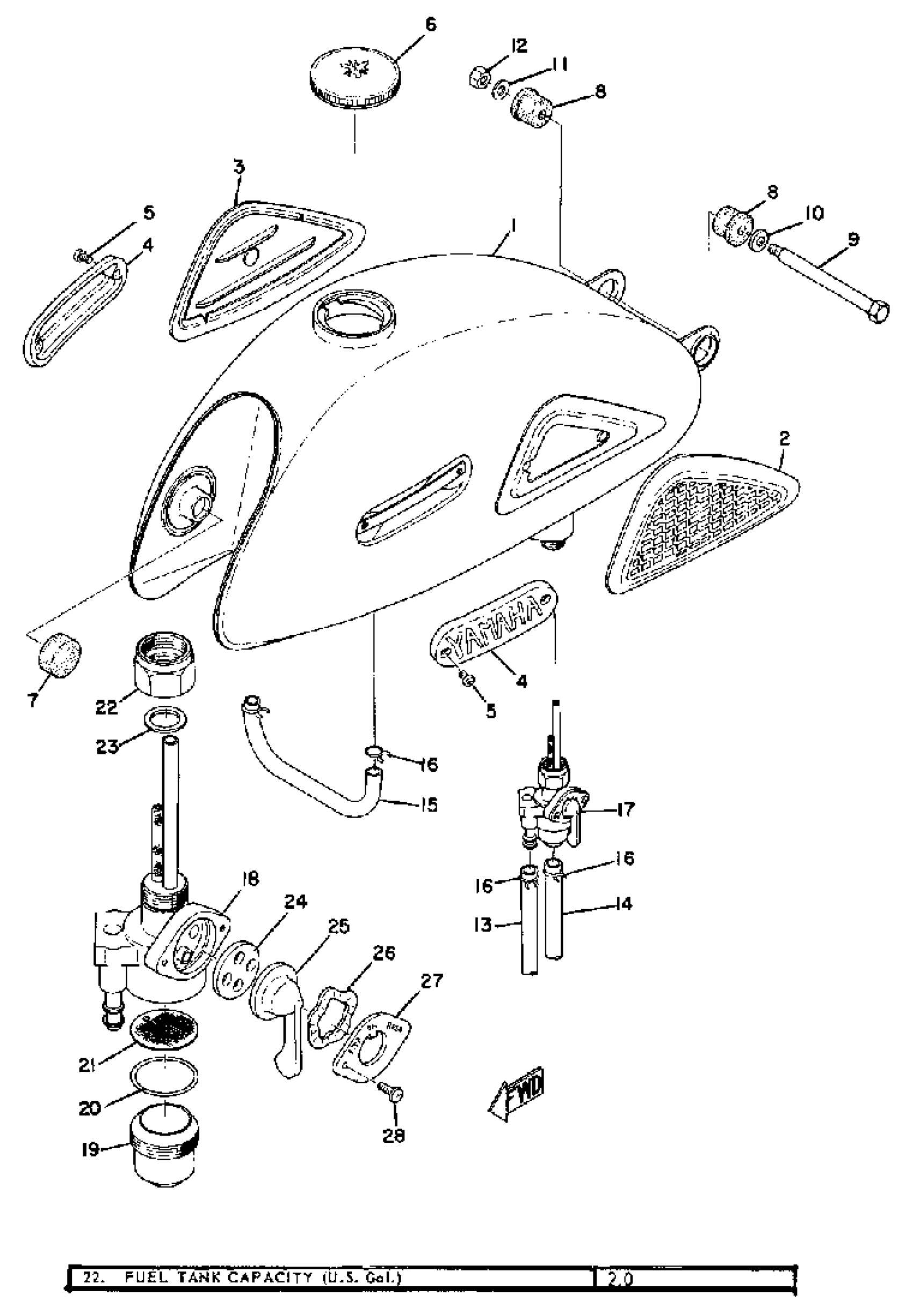

1970 Yamaha HS1 (HS1) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(241-24110-00-04)

1
Out of stock

1

FUEL TANK

(245-24110-00-06)

1
Out of stock

2

GRIP, KNEE 1

(241-24171-00-00)

1
Out of stock

3

GRIP, KNEE 2

(241-24172-00-00)

1
Out of stock

4

EMBLEM 1

132-24161-00-00

1
Out of stock

5

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

6

CAP ASSY

122-24610-01-00

1

$19.48

In stock

7

DAMPER, LOCATING(1)

122-24181-00-00

1

$6.48

In stock

8

DAMPER, LOCATING 1

(137-24181-00-00)

1
Out of stock

9

BOLT

(90109-06026-00)

1
Out of stock

10

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

11

WASHER PLATE 137241870000

90201-06072-00

1
Out of stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

14

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

15

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

16

CLIP 101235600

90467-08003-00

—

$6.13

In stock

17

FUEL COCK ASSEMBLY 1

132-24500-02-00

1
Out of stock

18

TOOL

UNA-VAILA-BL-EI

1
Out of stock

19

. CUP, FILTER

1A0-24521-01-00

1
Out of stock

20

GASKET, FILTER

498-24522-00-00

—

$33.15

In stock

21

. NET, FILTER 2

304-24515-00-00

1
Out of stock

22

. NUT

132-24531-00-00

1
Out of stock

23

GASKET, FUEL COCK

434-24532-00-00

—

$8.37

In stock

24

VALVE

137-24523-00-00

—

$6.57

In stock

25

. LEVER, COCK

168-24524-00-00

1
Out of stock

26

WASHER, WAVE

132-24518-00-00

—
Out of stock

27

PLATE, LEVER FITTING

(132-24525-01-00)

1
Out of stock

28

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock
