1970 Yamaha HS1 (HS1) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1970 Yamaha HS1 (HS1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

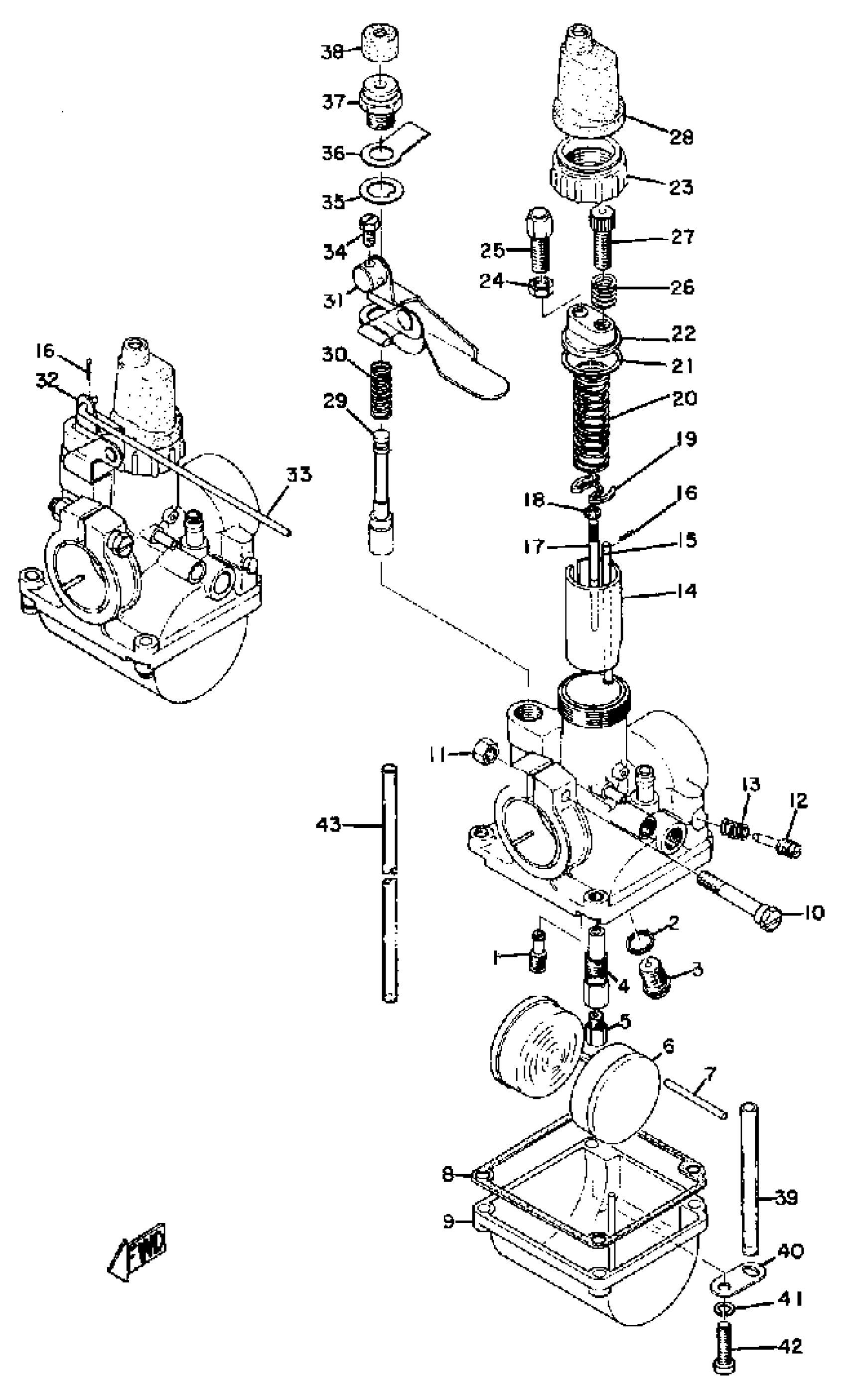

1970 Yamaha HS1 (HS1) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 20)

193-14142-20-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(287-14101-60-00)

1
Out of stock

2

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

2

CARBURETOR ASSEMBLY 2

(287-14102-60-00)

1
Out of stock

3

VALVE SEAT ASSY (#1.2)

2E9-14190-12-00

1

$48.30

In stock

4

NOZZLE, MAIN

(132-14141-10-00)

1
Out of stock

5

JET, MAIN #60

(127-14143-12-00)

1
Out of stock

5

JET, MAIN #70

(127-14143-14-00)

1
Out of stock

5

JET, MAIN #80

(127-14143-16-00)

1
Out of stock

6

FLOAT

127-14185-00-00

1

$35.88

In stock

7

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

8

GASKET, FLOAT CHAMBER

127-14184-00-00

1

$9.49

In stock

9

BODY, FLOAT CHMBR 1

(195-14181-00-00)

1
Out of stock

10

. SCREW, BODY FITTING

127-14125-01-00

1
Out of stock

11

NUT, HOLDING

(127-14164-00-00)

1
Out of stock

12

. SCREW, AIR ADJUSTINGSET

127-W1412-00-00

1
Out of stock

13

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

14

VALVE, THROTTLE 1

(287-14112-15-00)

1
Out of stock

15

BAR, THROTTLE

(127-14114-00-00)

1
Out of stock

16

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

17

NEEDLE

127-14116-09-00

—
Out of stock

18

CLIP

127-14137-00-00

—

$5.11

In stock

19

. SEAT, SPRING

296-14136-00-00

1
Out of stock

20

SPRING, THRTL VALVE

(287-14131-01-00)

1
Out of stock

21

GASKET

(241-14126-00-00)

1
Out of stock

22

TOP, MIXING CHAMBER

(134-14158-00-00)

1
Out of stock

23

CAP, MIXING CHAMBER

(134-14168-00-00)

1
Out of stock

24

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

25

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

26

SPRING, THROTTLE STOP

127-14133-00-00

—

$4.08

In stock

27

SCREW, THRTL STOP

(127-14121-00-00)

1
Out of stock

28

CAP

(132-14169-00-00)

1
Out of stock

29

PLUNGER, STARTER

132-14171-00-00

—

$31.29

In stock

30

SPRING, PLUNGER

132-14135-00-00

—

$4.57

In stock

31

LEVER, STARTER 1

(196-14175-00-00)

1
Out of stock

32

LEVER, STARTER 2

(132-14176-00-00)

1
Out of stock

33

ROD, STARTER LEVER

(132-14177-00-00)

1
Out of stock

34

SCREW, ROD

(193-14486-00-00)

1
Out of stock

35

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

36

PLATE, STARTER LVR

(132-14178-00-00)

1
Out of stock

37

CAP, PLUNGER

(132-14174-00-00)

1
Out of stock

38

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

39

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

40

PLATE

132-14146-00-00

—

$6.65

In stock

41

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

42

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

43

PIPE

23F-14197-00-00

—

$24.11

In stock
