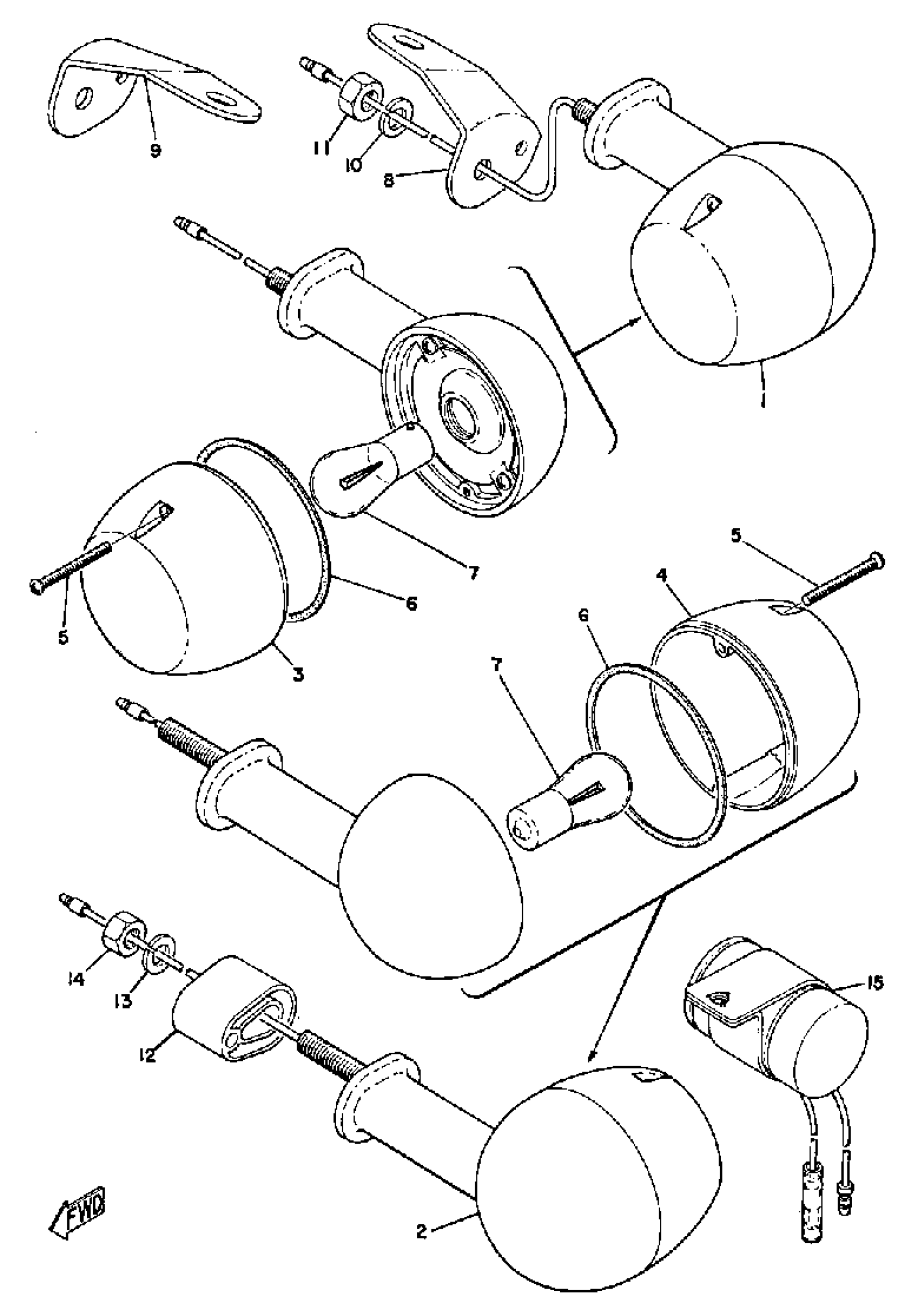

Yamaha HS1 (HS1) 1970 FLASHER LAMP (HS-1B) Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

(137-83310-72-93)

Unavailable

2

R FLSHR LITE ASSEMBLY

(287-83330-75-93)

Unavailable

3

LENS, FLASHER

183-83312-70-00

Unavailable

4

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

5

SCREW, LENS FITTING (3X32)

183-83333-71-00

$8.99

6

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

7

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

8

STAY, FLASHER 1

(287-83318-00-00)

Unavailable

9

STAY, FLASHER 2

(287-83328-00-00)

Unavailable

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

NUT(6L2)

95333-08600-00

$2.49

12

COLLAR,FLASHER 1

249-83316-95-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

NUT(6L2)

95333-08600-00

$2.49

15

FLASHER RELAY ASSEMBLY

278-83350-71-00

Unavailable
