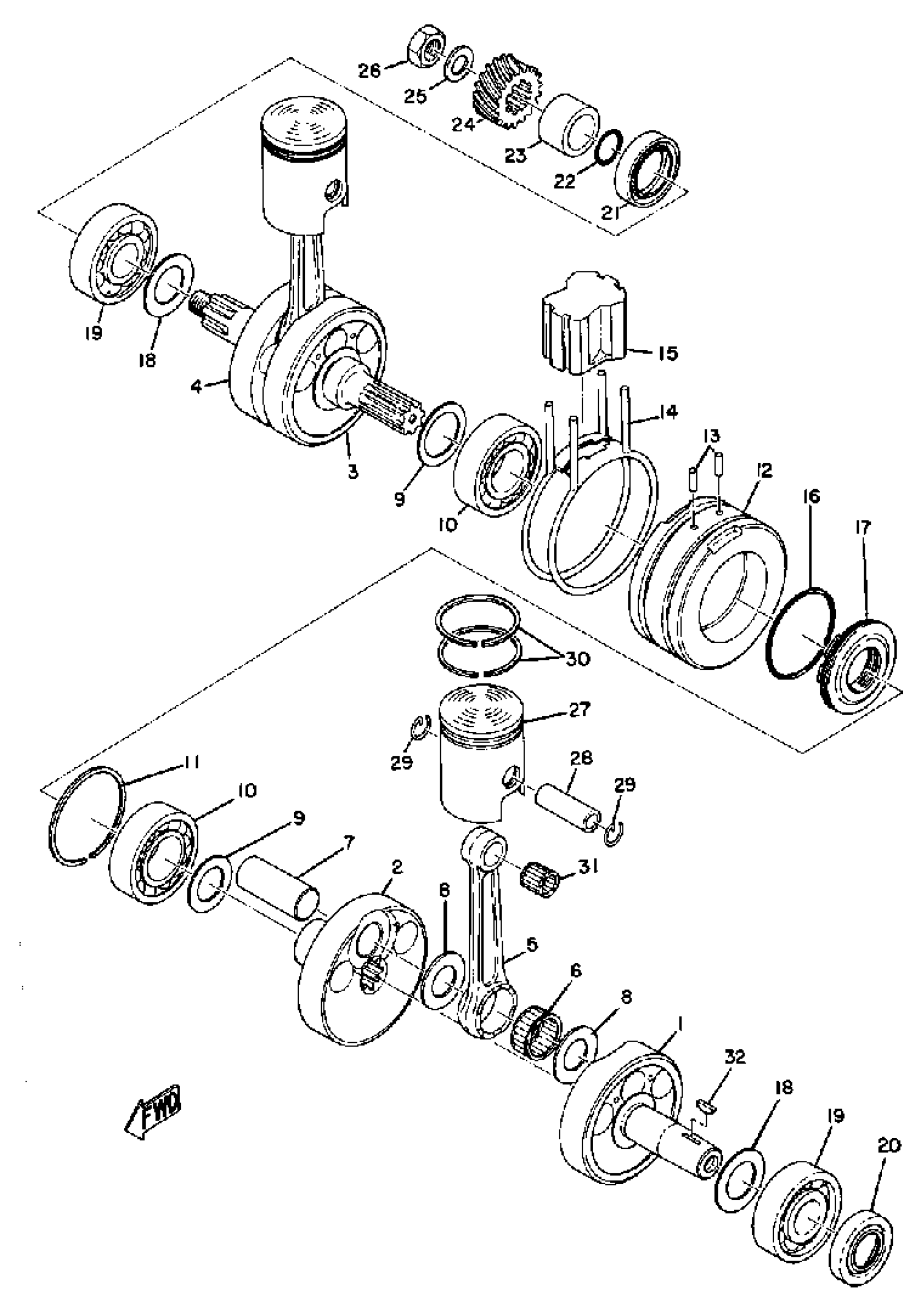

Yamaha HS1 (HS1) 1970 CRANK & PISTON Diagram

#

Description

Price

1

CRANK 1

(183-11412-03-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

(241-11400-00-00)

Unavailable

2

CRANK 2

(132-11422-04-00)

Unavailable

3

CRANK 3

(132-11432-03-00)

Unavailable

4

CRANK 4

(183-11442-03-00)

Unavailable

5

. ROD, CONNECTING

1E7-11651-00-00

Unavailable

6

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

7

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

8

WASHER 132116850000

90209-18112-00

$10.49

9

. SHIM, CRANK 1

132-11561-00-03

Unavailable

10

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

11

. CIRCLIP

93450-52010-00

Unavailable

12

COVER, CRANK

(132-11511-02-00)

Unavailable

13

PIN, DOWEL(4SS)

93604-18251-00

Unavailable

14

. SEAL, CRANK COVER

183-11512-00-00

Unavailable

15

METAL, FILLER

(195-11541-00-00)

Unavailable

16

. O-RING

93210-48045-00

Unavailable

17

. SEAL, LABYRINTH 1

132-11515-01-00

Unavailable

18

SHIM, CRANK 1

136-11561-00-04

Unavailable

19

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

20

OIL SEAL(4BA)

93102-20447-00

Unavailable

21

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

22

O-RING(3KX)

93210-180A6-00

Unavailable

23

COLLAR 183161360000

90387-20163-00

Unavailable

24

GEAR, PRI DRIVE

(183-16111-00-00)

Unavailable

25

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

26

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

27

PISTON STD

(241-11631-01-46)

Unavailable

27

PISTON 1 O/S 0.25

(241-11635-01-00)

Unavailable

27

PISTON 2 O/S 0.50

(241-11636-01-00)

Unavailable

28

PIN, PISTON

(132-11633-00-00)

Unavailable

29

CIRCLIP 132116340000

93450-13022-00

Unavailable

30

PISTON RINGSET STD

(132-11610-01-00)

Unavailable

30

PISTON RINGSET 1ST

(132-11610-11-00)

Unavailable

30

PISTON RINGSET 2ND

(132-11610-21-00)

Unavailable

31

BEARING, CYLINDER.#10

93310-11296-00

Unavailable

32

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
