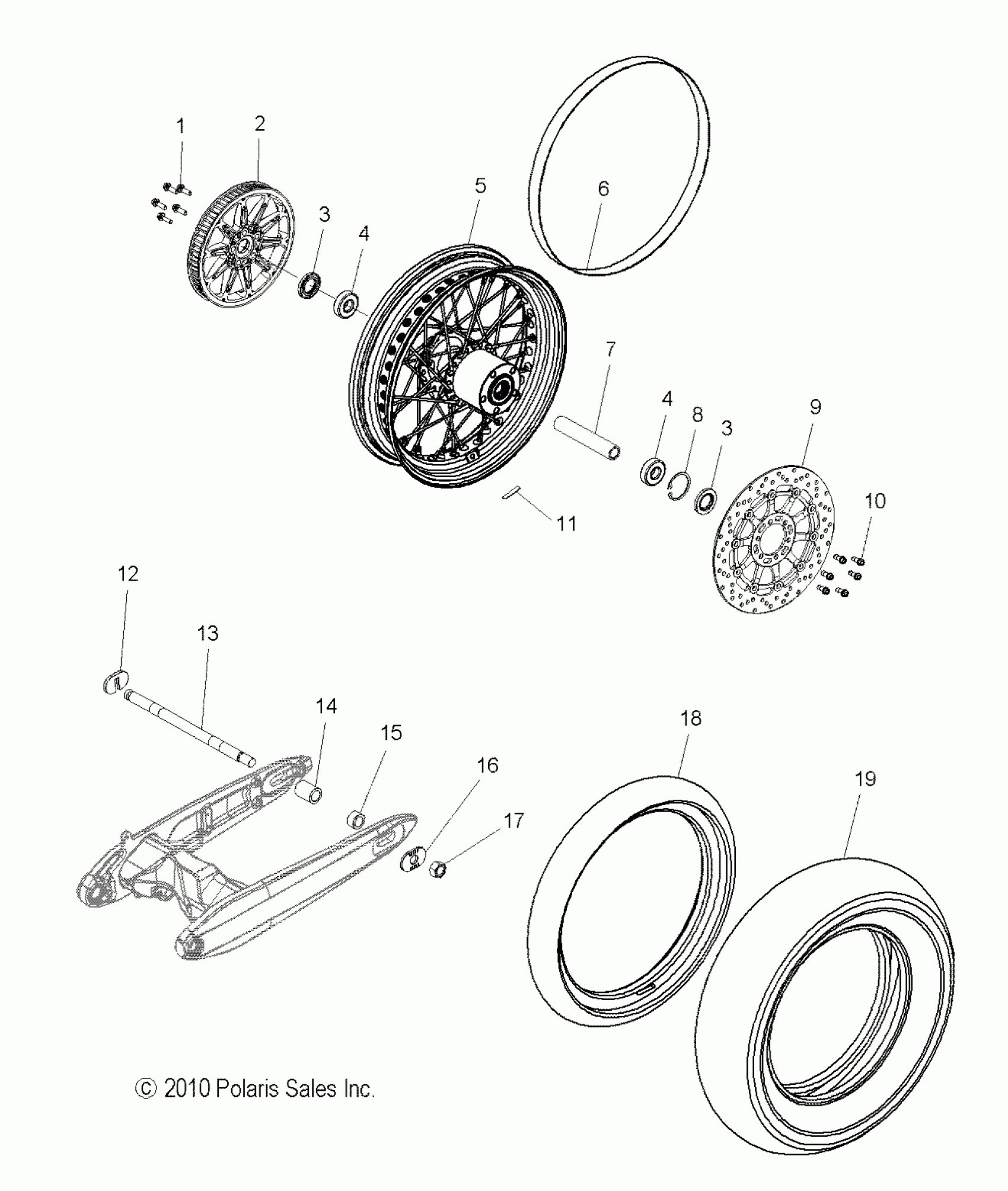

Polaris HIGHBALL - V12WB36NA WHEELS, REAR - V12WB36NA (49VICWHEELRR12HB) Diagram

#

Description

Price

1

SCREW

7518878

Unavailable

2

ASM., SPROCKET, DRIVEN, 70T, BLACK ENGINE WRINKLE

1332399-521

Unavailable

3

SEAL

3610094

Unavailable

3

SEAL

3610094

Unavailable

4

BEARING, BALL

3514405

Unavailable

4

BEARING, BALL

3514405

Unavailable

5

ASM., WHEEL, REAR, LACED, 16 INCH, BLACK [INCL. 3-7,11]

1521744-266

Unavailable

6

STRAP, RIM, 16 INCH

5813714

Unavailable

7

SPACER, BEARING, MID

5335682

Unavailable

8

Ring, Retaining

7710526

Unavailable

9

ROTOR, BRAKE, BLACK

1911624-266

Unavailable

10

SCREW

7518661

Unavailable

11

WEIGHT, STEEL, BALANCE, BLACK

1521682

Unavailable

12

RETAINER-AXLE, REAR

5248599

Unavailable

13

AXLE, REAR

5135743

Unavailable

14

SPACER, WHEEL, REAR, RH

5631581

Unavailable

15

SPACER, BEARING, LH

5631479

Unavailable

16

WASHER, INDICATOR, AXLE

5248452-236

Unavailable

17

NUT, HEX

7547226

$23.81

18

TUBE, TIRE, INNER

1823877

Unavailable

19

Tire, Rear, 16 Inch, Whitewall

5412269

$269.99
