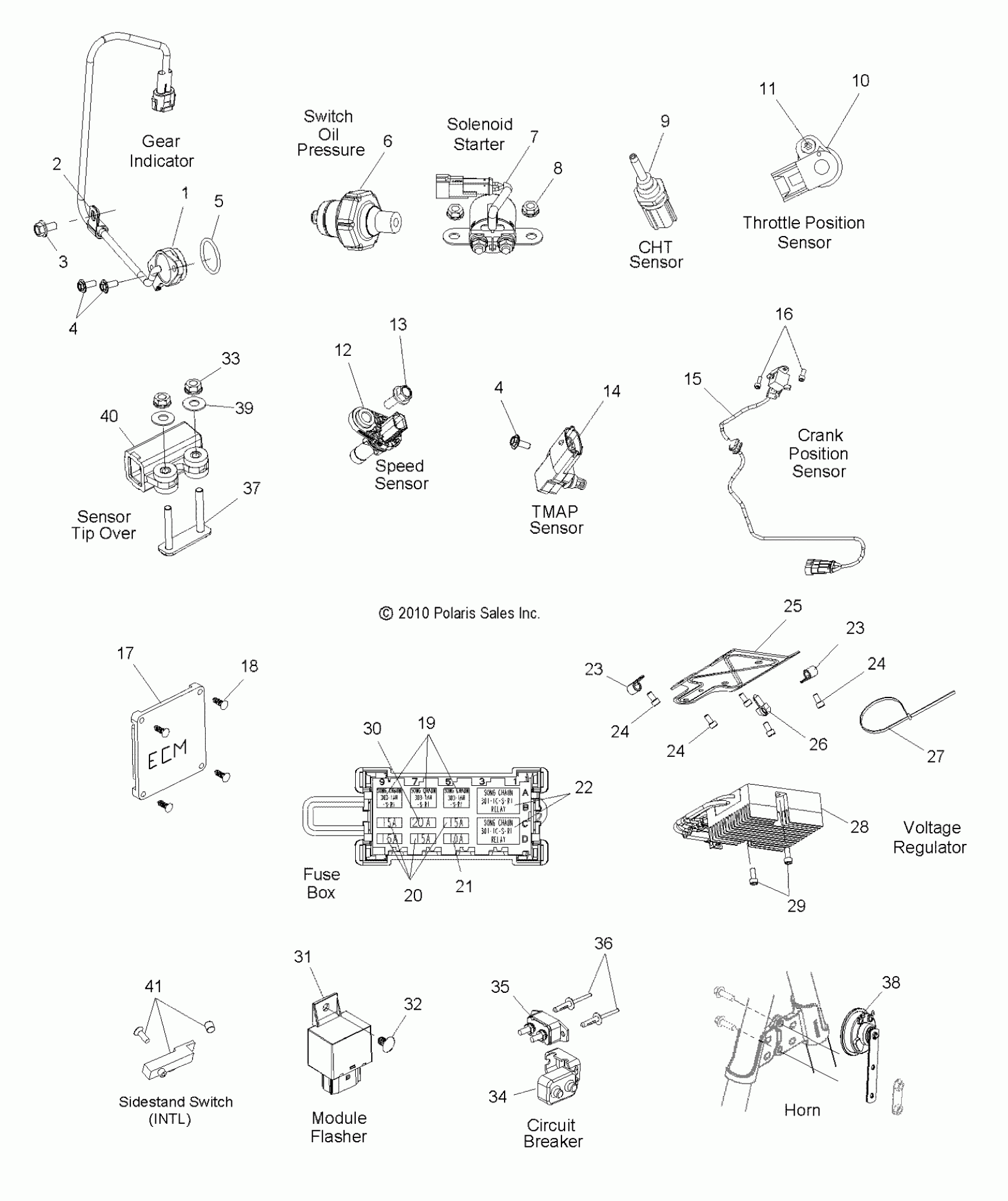

Polaris HIGHBALL - V12WB36NA ELECTRICAL, SWITCHES and SENSORS and COMPONENTS - V12WB36NA (49VICSWITCHES11VGS) Diagram

#

Description
Price

1

SWITCH, GEAR INDICATOR

4010976

$52.60

2

CLAMP-REAR BRAKE

7080983

$4.35

3

SCREW

7517257

$9.52

4

SCREW

7518338

$5.99

4

SCREW

7518338

$5.99

5

O-RING

5412530

$1.60

6

SWITCH, OIL PRESSURE

4012668

$44.51

7

SOLENOID, STARTER

4012001

$47.60

8

Nut

7710495

$5.22

9

SENSOR, CYLINDER HEAD TEMP

4012971

$64.75

10

SENSOR, THROTTLE POSITION

4012101

$519.99

11

SCREW

7518901

$4.76

12

SENSOR, VEHICLE SPEED

4011884

$232.37

13

SCREW

7517750

$10.32

14

Sensor, T-Map

2410422

$97.13

15

SENSOR, CRANK POSITION

4012280

$135.54

16

SCREW

7518045

$10.32

17

PCM, SERVICE

4013160

$644.99

18

CLIP, PLASTIC DART

7670141

$4.76

19

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

20

FUSE-MINI BLADE,15 AMP

2410280

$8.08

21

FUSE-IGNITION,10 AMP

2434016

$5.65

22

RELAY, SERIES 301

4011284

$36.41

23

CLAMP-REAR BRAKE

7080983

$4.35

23

CLAMP-REAR BRAKE

7080983

$4.35

24

Screw

7517739

$10.46

24

Screw

7517739

$10.46

24

Screw

7517739

$10.46

25

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

$67.46

26

Clip

7670102

$2.38

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

REGULATOR, VOLT, BLACK

4012718

Unavailable

29

SCREW

7517272

$7.84

30

FUSE-PARK,20 AMP

2434017

$8.08

31

MODULE, FLASHER, 10W

4012103

$114.99

32

CLIP, PLASTIC DART

7670078

$3.79

33

Nut

7710495

$5.22

34

BOOT

4010778

$5.65

35

NUT

7541931

$5.99

35

BREAKER, CIRCUIT

2410332

$32.37

36

Rivet

7081040

$1.19

37

PLATE, STUD, M4

1016624

$28.32

38

HORN

4012448

$56.65

39

WASHER, FLAT

7556477

Unavailable

40

SENSOR, TIP OVER

4011296

Unavailable

41

SCR-FLHD-M4X0.7X12MM,TORX

7519276

$4.76

41

SWITCH, SIDE STAND

4013130

$36.41

41

MAGNET, SIDE STAND

4013131

$7.27

41

ASM., SIDE STAND SENSOR

1017988

$36.41
