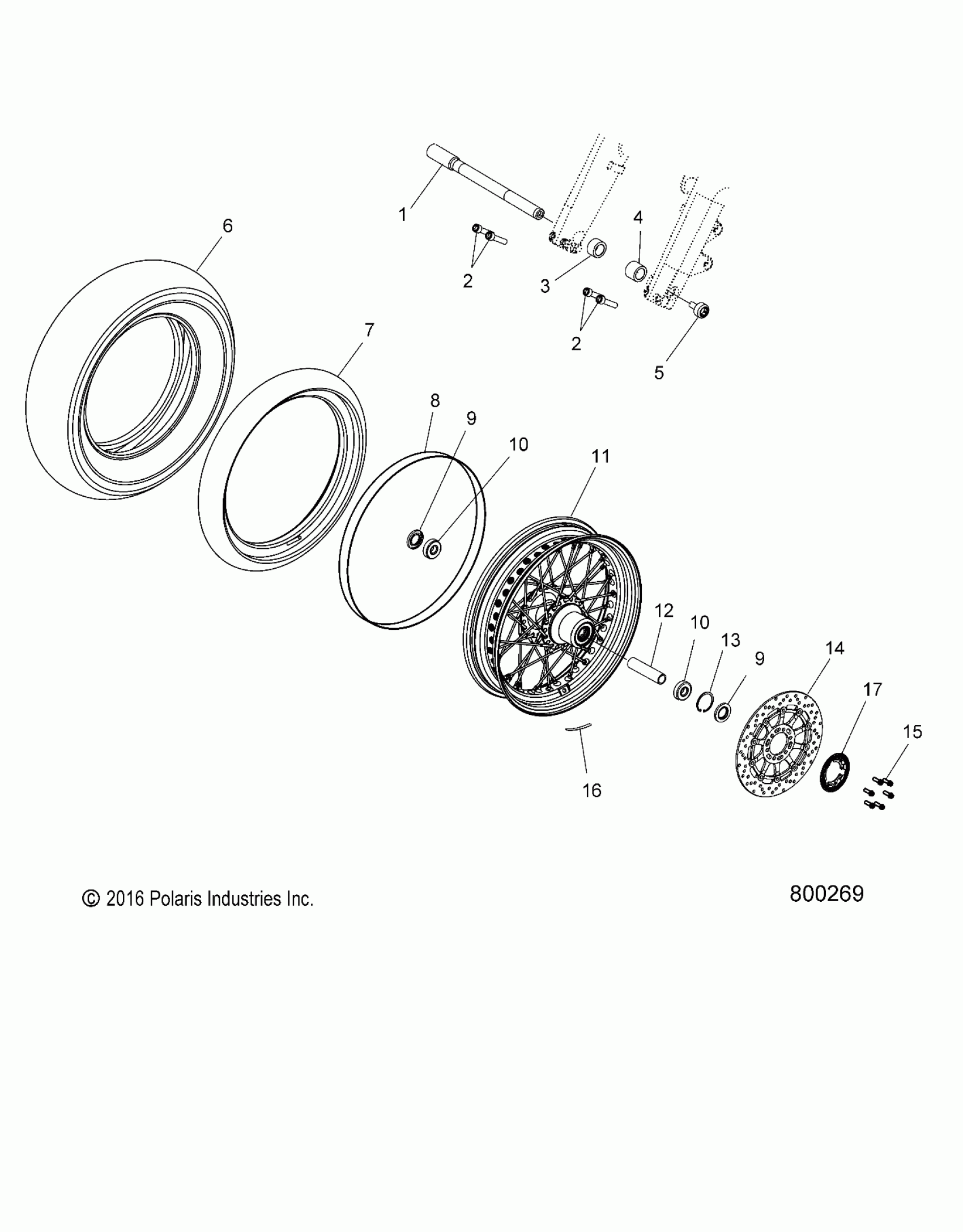

Polaris HIGH BALL ALL OPTIONS (R02) - V17CWAAB/CWBAB WHEELS, FRONT (LACED) - V17CWAAB/CWBAB ALL OPTIONS (800269) Diagram

#

Description
Price

1

AXLE, FRONT

5137657

$234.99

2

SCREW

7517517

Unavailable

2

SCREW

7517517

Unavailable

3

SPACER, BEARING, LH

5631479

$3.97

4

SPACER, BEARING, LH

5631481

$4.76

5

SCREW

7519882

$39.99

6

TIRE, FRONT, 130/90/16, WWW

5414630

$299.99

6

TIRE, FRONT, 130/90/16, BW, E3

5415358

Unavailable

7

TUBE, TIRE, INNER

1823877

$109.27

8

STRAP, RIM, 16 INCH

5813714

$20.22

9

SEAL

3610094

$31.75

9

SEAL

3610094

$31.75

10

BEARING, BALL

3514405

$19.84

10

BEARING, BALL

3514405

$19.84

11

ASM., WHEEL, FRONT, LACED, 16 INCH, BLACK [INCL. 9,10,12,13]

1522402-266

$1,315.62

11

KIT, SPOKE AND NIPPLE, 16-40, SLAB, SS, VV [CONTAINS 1 INNER SPOKE, 1 OUTER SPOKE, AND 2 NIPPLES]

2204924

Unavailable

12

SPACER, BEARING, FRONT WHEEL

5337051

$44.99

13

Ring, Retaining

7710526

$10.32

14

ROTOR, BRAKE, BLACK

1911624-266

$379.99

15

SCREW

7518661

$1.59

16

WEIGHT, STEEL, BALANCE, BLACK

1521682

Unavailable

17

RING, TONE, ABS [INTL]

5633606

$31.75
