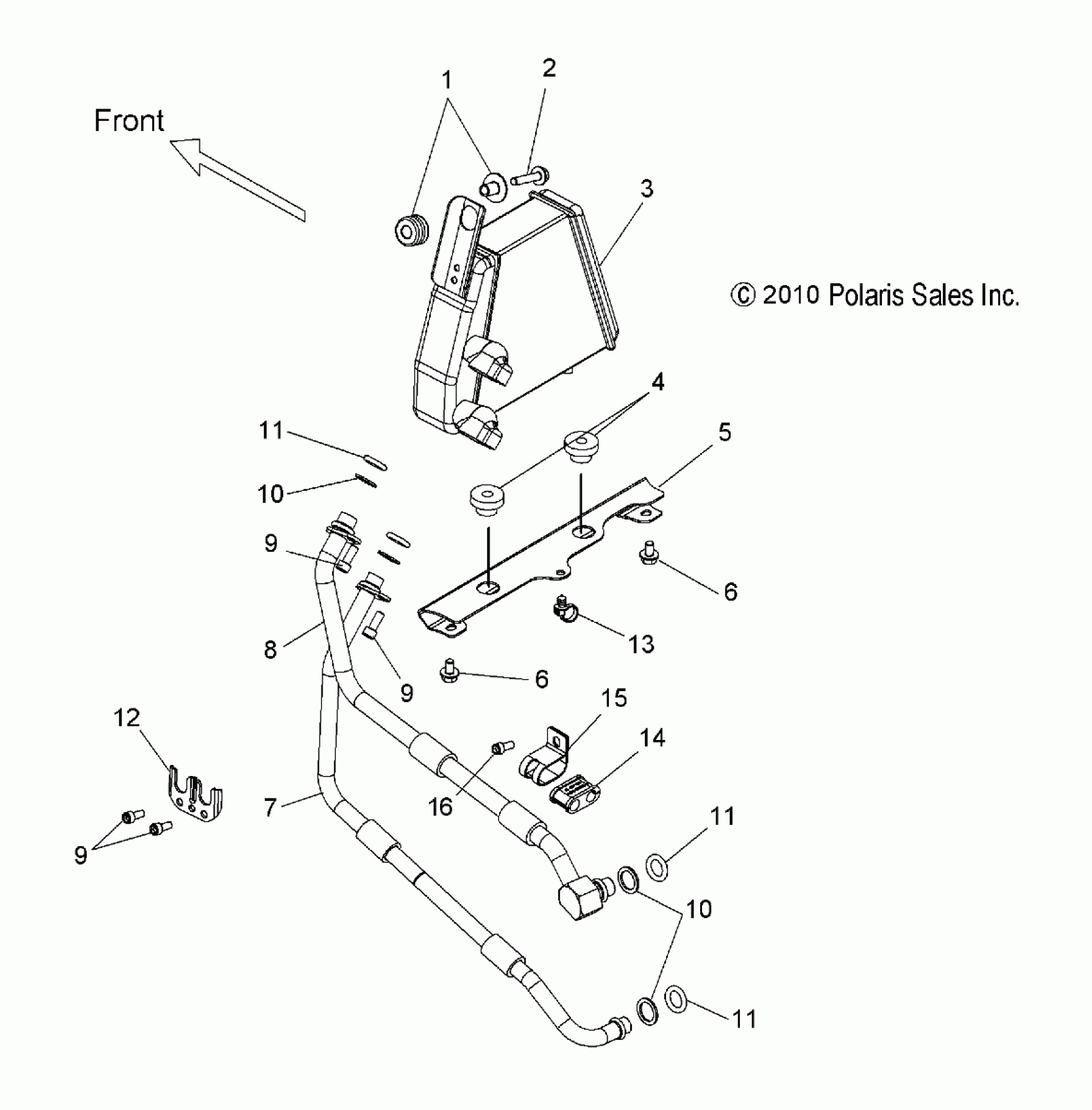

Polaris HIGH BALL ALL OPTIONS (R01) - V16WB36/WW36 ENGINE, OIL COOLING SYSTEM - V16WB36/WW36 ALL OPTIONS (49VICOILCOOLING11HMR) Diagram

#

Description
Price

1

ASM., GROMMET AND INSERT

1016169

$8.08

2

SCR-HXWHD,THDFRM,M6X30,0600202

7518713

$5.56

3

COOLER, OIL [INCL. 1]

1240919-266

$481.65

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

5

BRACKET, OIL COOLER, LOWER, BLACK

5251230-266

$48.56

6

SCREW

7518393

$7.84

6

SCREW

7518393

$7.84

7

ASM., OIL LINE, ENGINE OUT

2520780

$72.84

8

ASM., OIL LINE, ENGINE IN

2520781

$105.22

9

SCREW

7517272

$7.84

9

SCREW

7517272

$7.84

9

SCREW

7517272

$7.84

10

RING, BACK-UP

7556380

$32.37

10

RING, BACK-UP

7556380

$32.37

11

O-Ring

5411356

$2.41

11

O-Ring

5411356

$2.41

11

O-Ring

5411356

$2.41

12

RETAINER, OIL LINE

5135945

$10.32

13

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

14

GROMMET, OIL LINE

5437099

$3.17

15

CLAMP, OIL LINE

7081457

$5.56

16

SCREW

7519061

$3.97
