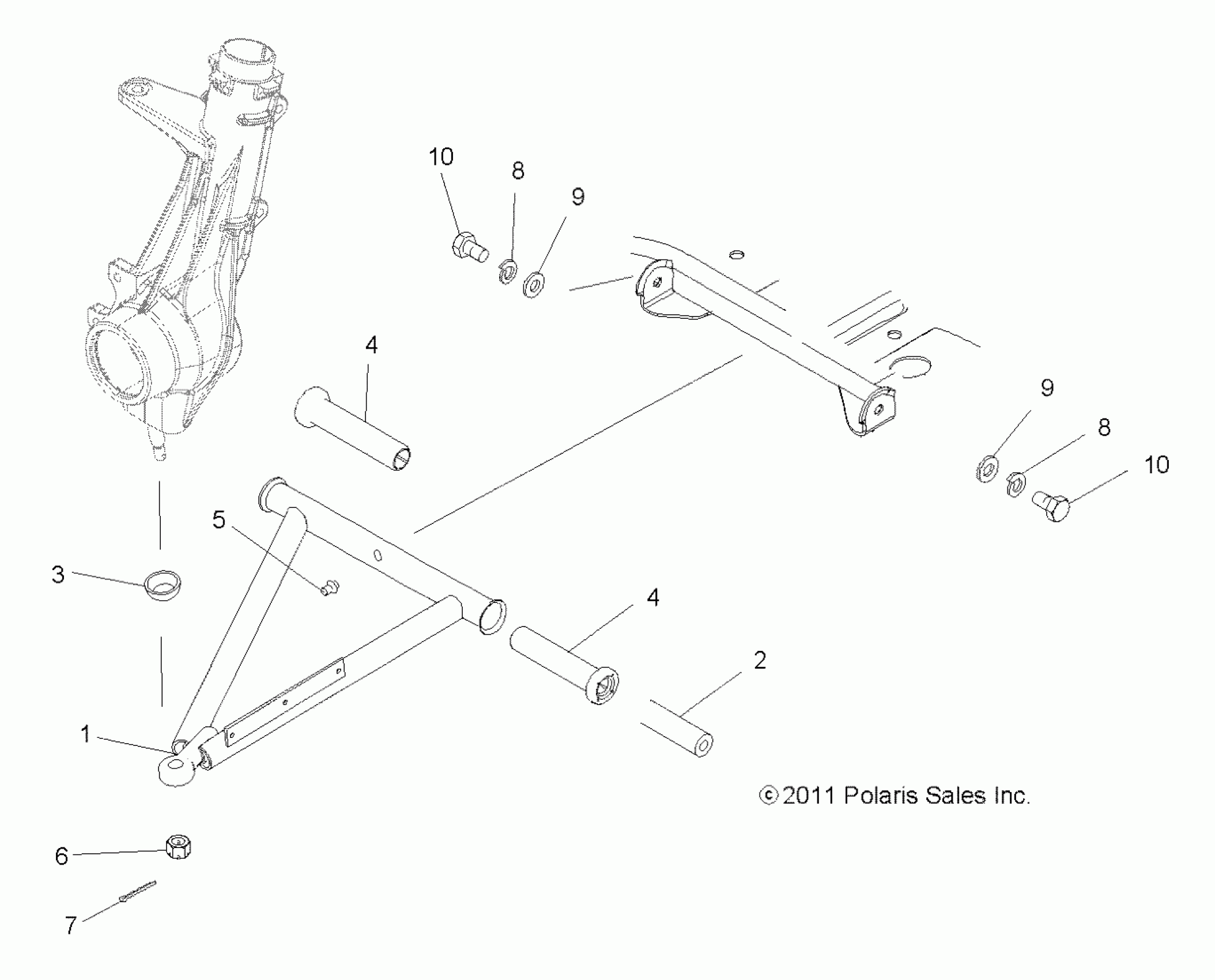

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ SUSPENSION, A-ARM and STRUT MOUNTING - A13MB46FZ (49ATVAARM11HAWK) Diagram

#

Description
Price

1

Kit, A-Frame, LH [Incl. 2,4,8-10]

2202906

$127.99

1

Kit, A-Frame, RH [Incl. 2,4,8-10]

2202907

$127.99

2

Shaft, A-Arm

5133806

$30.79

3

BOOT, BALL JOINT, GREASELESS

5412658

$4.79

4

BUSHING, A-ARM, LONG

5436973

$5.19

4

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

4

BUSHING, A-ARM, LONG

5436973

$5.19

4

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

5

Fitting, Lubrication

7080433

$1.49

6

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

7

Pin, Cotter

7661203

$1.49

8

Washer, Spring Lock

7552603

$1.49

8

Washer, Spring Lock

7552603

$1.49

9

WSHR-.813X.406X.105-Y

7555832

$2.39

9

WSHR-.813X.406X.105-Y

7555832

$2.39

10

Screw

7512492

$1.49

10

Screw

7512492

$1.49
