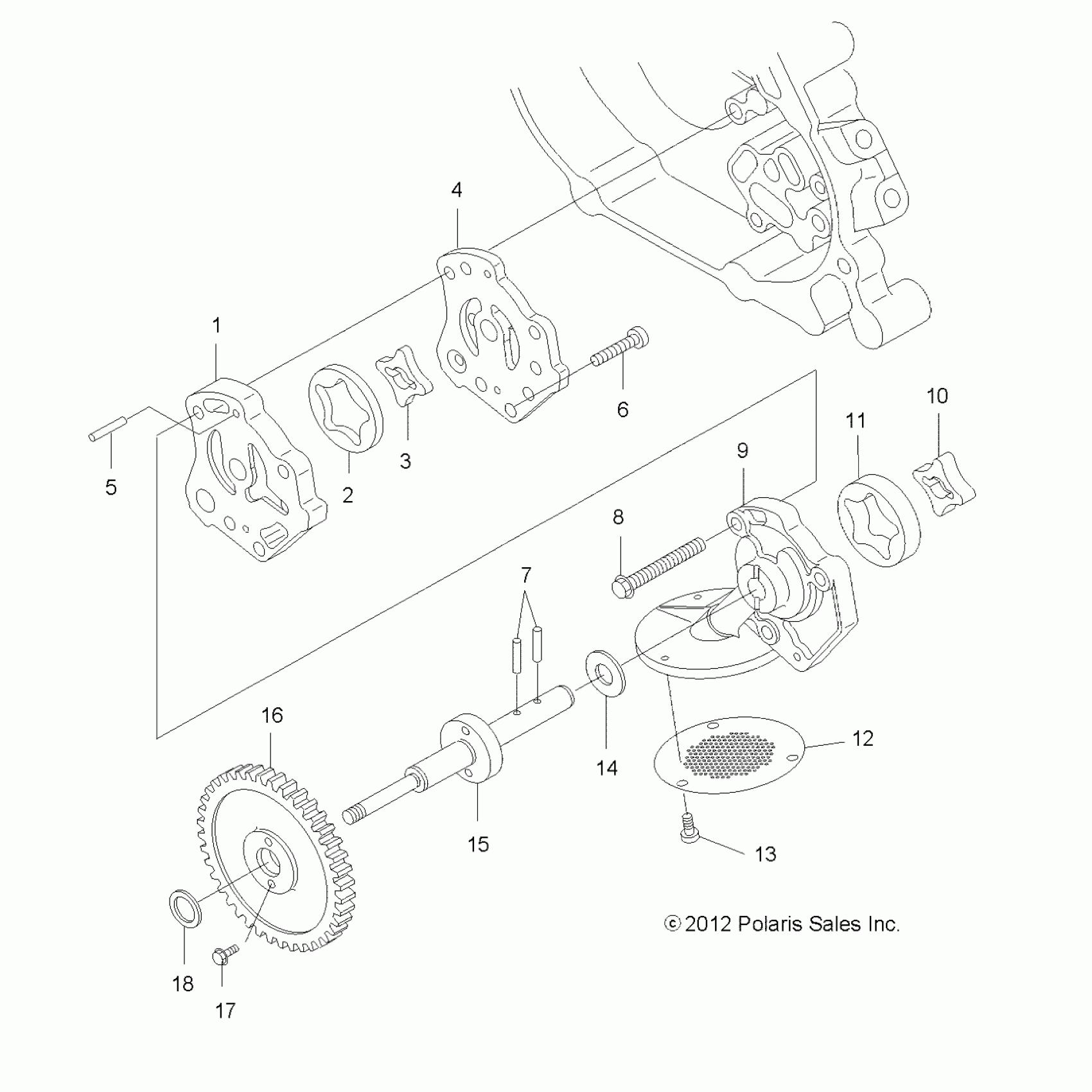

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ ENGINE, OIL PUMP - A13MB46FZ (49ATVOILPUMP13HAWK) Diagram

#

Description
Price

1

PUMP, OIL, CASE 2

3084946

$75.99

1

ASM., OIL PUMP [INCL. 1-7,9-15]

3090032

Unavailable

2

ROTOR, OUTER, FEED

3084949

$39.99

3

ROTOR, INNER, FEED

3084948

Unavailable

4

PUMP, OIL, CASE 1

3090000

Unavailable

5

PIN, DOWEL

3084955

$7.19

6

SCREW

3085535

$2.39

7

PIN, DOWEL

3084954

$7.19

8

BOLT, FLANGE

3087159

$3.99

9

PUMP, OIL, CASE 3

3087265

$83.99

10

ROTOR, INNER

3084950

$27.99

11

ROTOR, OUTER

3090307

$43.99

12

UNIT, OIL STRAINER

3084956

$67.99

13

Asm., Screw and Washer

3084205

$3.99

14

WASHER

3084953

$3.19

15

SHAFT, PUMP

3085858

Unavailable

16

GEAR, PUMP, 2

3090033

$163.99

17

BOLT, FLANGE

3089505

$4.79

18

SPACER, 0.8

3084959

Unavailable

18

SPACER, 1.2

3084961

Unavailable

18

SPACER, 1.0

3084960

Unavailable
