- HAWKEYE 400 HO 2X4 - A13MB46FZ
ENGINE, CYLINDER - A13MB46FZ (49ATVCYLINDER12SP400)

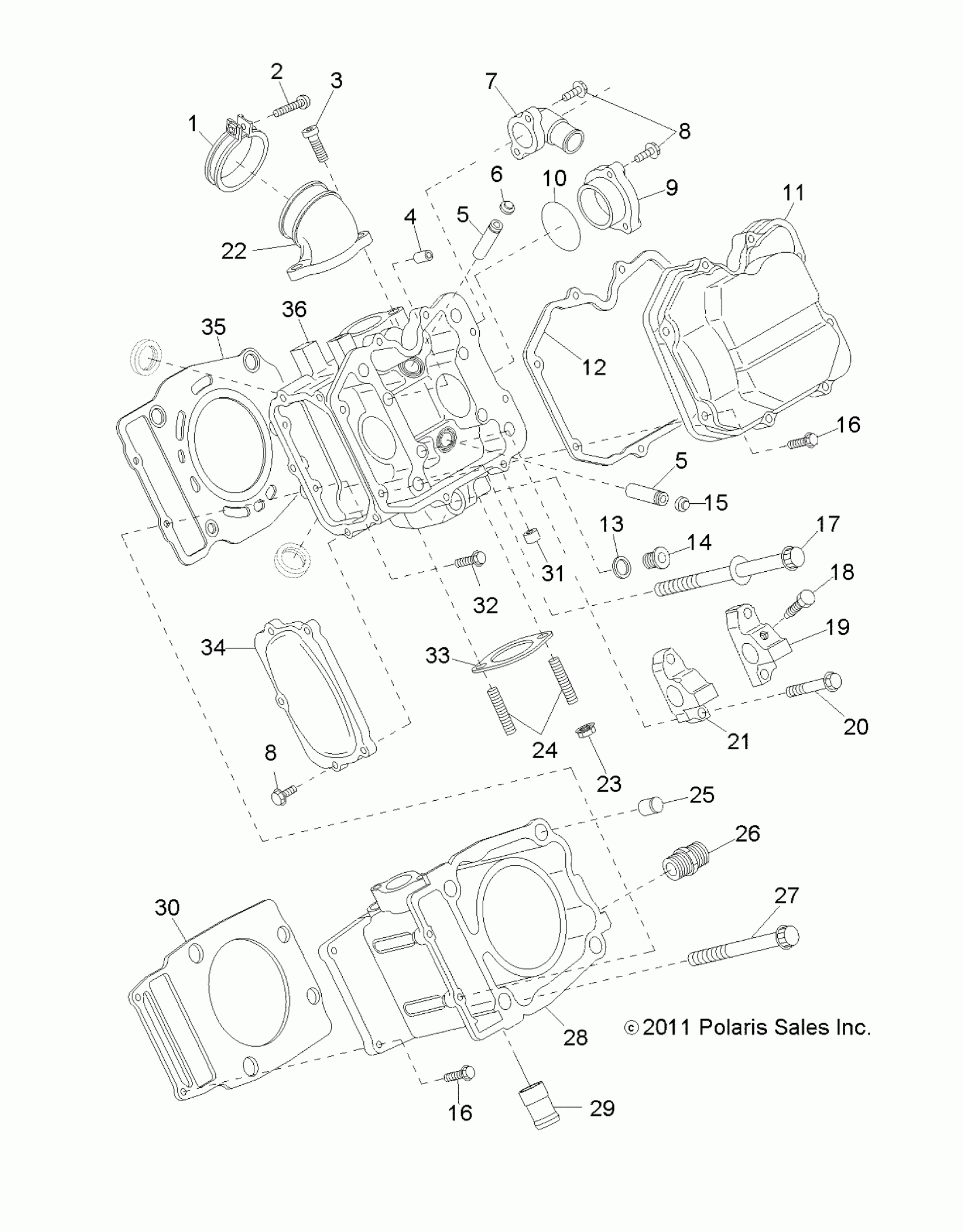

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ ENGINE, CYLINDER - A13MB46FZ (49ATVCYLINDER12SP400) Diagram
#
Description
Price
1
ASM., BAND, ADAPTER [INCL. 2]
3090180
$19.84
2
ASM., SCREW AND WASHER
3081497
$2.39
3
BOLT, SOCKET HEAD
3081330
$3.99
4
Pin, Straight
3084857
Unavailable
5
GUIDE, VALVE
3084994
$39.99
5
GUIDE, VALVE
3084994
$39.99
6
SEAL, EXHAUST VALVE
3084859
$23.99
7
ADAPTER
3084870
$59.99
8
BOLT, FLANGE
3084877
Unavailable
8
BOLT, FLANGE
3084877
Unavailable
9
ADAPTER, CAMSHAFT
3084866
Unavailable
10
O-RING
3084867
$23.99
11
COVER, ROCKER
3085073
$75.99
12
GASKET, ROCKER COVER
3085074
$31.99
13
GASKET
3084861
$4.79
14
PLUG
3084860
$7.19
15
SEAL, EXHAUST VALVE
3090098
$11.99
16
BOLT, FLANGE
3084874
Unavailable
16
BOLT, FLANGE
3084874
Unavailable
17
BOLT
3084875
Unavailable
18
BOLT, ROCKER SHAFT
3085854
Unavailable
19
SUPPORT, VALVE ROCKER SHAFT
3084864
Unavailable
20
BOLT
3084876
$4.79
21
SUPPORT, VALVE ROCKER SHAFT
3084863
$91.99
22
ADAPTER
3084879
Unavailable
23
NUT, FLANGE
3082910
$2.39
24
STUD
3090095
Unavailable
25
PIPE, KNOCK
3087266
Unavailable
26
UNION
3089956
Unavailable
27
BOLT, FLANGE
3084873
Unavailable
28
ASM., CYLINDER [INCL. 29]
3090289
$417.29
29
PIPE
3083452
Unavailable
30
GASKET, CYLINDER
3089966
$39.99
31
PLUG, BLIND
3084862
Unavailable
32
BOLT, FLANGE
3088035
$3.19
33
GASKET
3085075
$39.99
34
COVER, CAMSHAFT
3089242
$55.99
35
GASKET, HEAD
3085337
$55.99
36
HEAD, CYLINDER [INCL. 4-6,13-15,24,31]
3090038
$523.59
