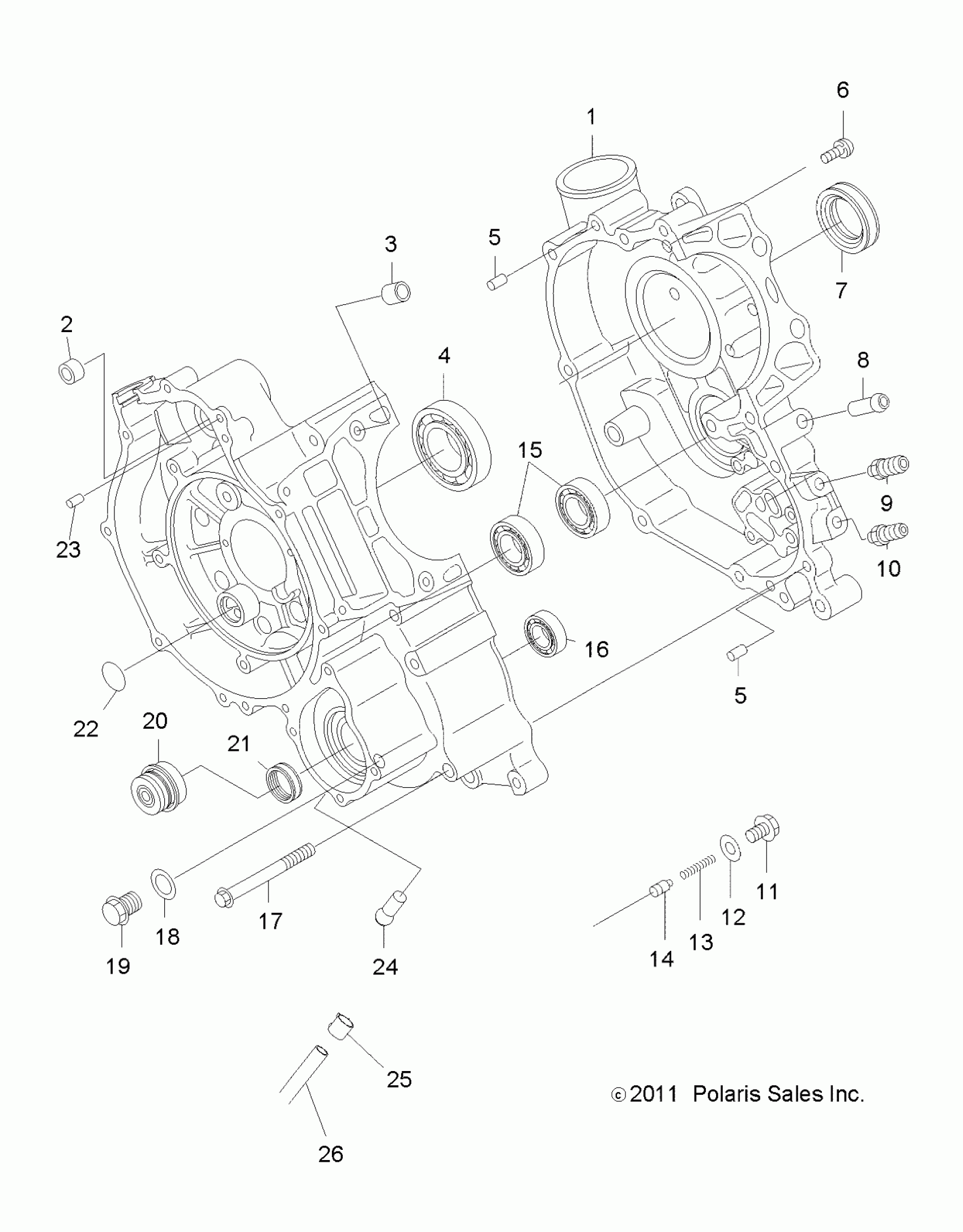

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ ENGINE, CRANKCASE - A13MB46FZ (49ATVCRANKCASE12400) Diagram

#

Description
Price

1

ASM., CRANKCASE [INCL. 2,4,5,7,8,15-17,20,21,23,24]

3089240

$970.19

2

BUSHING, STARTER

3083669

Unavailable

3

PIPE, KNOCK

3087266

Unavailable

4

BEARING, BALL

3085815

$43.99

5

PIN, DOWEL

3090304

$6.39

5

PIN, DOWEL

3090304

$6.39

6

Asm., Screw and Washer

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

PIPE, AIR BREATHER

3085525

Unavailable

9

UNION

3087154

Unavailable

10

UNION

3090305

$27.99

11

PLUG

3084845

Unavailable

12

GASKET, ALUMINUM

3089450

$4.79

13

SPRING

3084844

$3.99

14

VALVE, ONE WAY

3086810

Unavailable

15

BEARING, BALL

3084834

$23.99

16

BEARING, BALL

3084835

Unavailable

17

BOLT, FLANGE

3084841

Unavailable

18

GASKET

3082956

$4.84

19

PLUG

3086749

Unavailable

20

SEAL, MECHANICAL

3084837

$68.79

21

SEAL, OIL

3084836

Unavailable

22

O-RING

3084847

$6.39

23

PIN, DOWEL

3086838

$7.19

24

PIPE, PULSE

3083798

$9.52

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

Line, Fuel

8450003-1525

Unavailable
