- HAWKEYE 400 HO 2X4 - A13MB46FZ
ENGINE, AIR INTAKE SYSTEM - A13MB46FZ (49ATVAIRBOX13HAWK)

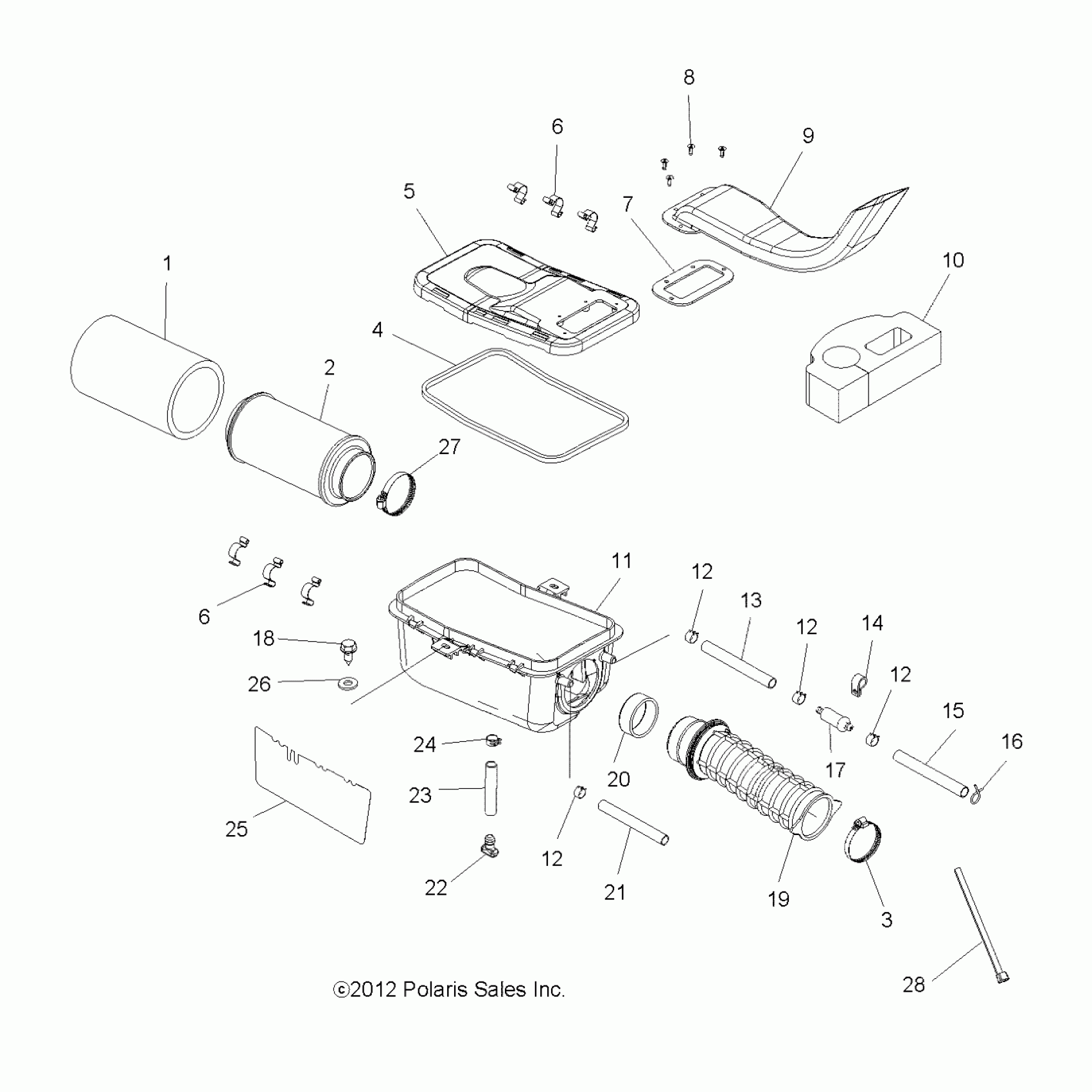

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ ENGINE, AIR INTAKE SYSTEM - A13MB46FZ (49ATVAIRBOX13HAWK) Diagram
#
Description
Price
1
Filter, Precleaner Sleeve
5811633
$11.99
2
Filter, Air
7080595
Unavailable
3
Clamp, Narrow Band
7080511
$4.79
4
Seal, Cover
5812829
$27.02
5
Cover, Air Box
5432868
$51.99
6
CLIP-AIR BOX
5242044
$9.59
6
CLIP-AIR BOX
5242044
$9.59
7
Gasket, Intake
5411422
$6.63
8
SCR-#8X1/2,TR/PH,TYPE B-Y
7517317
$3.19
9
Duct, Air Inlet
5436937
$69.99
10
Seal, Foam
5811626
$31.99
11
BOX, AIR
5438552
$135.99
12
Clamp, Hose
7080699
$1.59
12
Clamp, Hose
7080699
$1.59
12
Clamp, Hose
7080699
$1.59
12
Clamp, Hose
7080699
$1.59
13
Line, Breather
8450073-600
Unavailable
14
P-Clamp
7080913
$5.59
15
Hose, Breather
5413104
Unavailable
16
Clamp, Hose, Spring
7080694
$6.53
17
Filter, Breather
2530029
$6.39
18
Screw
7515179
$2.39
19
Boot, Carburetor
5412561
$47.99
20
Sleeve, Carburetor, Inner
5433847
$13.59
21
Line, Breather
5413003
Unavailable
22
Plug, Trap
5435299
$6.39
23
Line, Fuel
8450059-150
Unavailable
24
Clamp, Hose
7080650
$3.99
25
FOIL
5813652
$27.99
26
Washer, Flat
7555859
$1.49
27
CLAMP-BAND,NARROW 60-80MM
7080707
$3.19
28
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
