- HAWKEYE 400 HO 2X4 - A13MB46FZ
DRIVE TRAIN, MAIN GEARCASE - A13MB46FZ (49ATVGEARCASE1332928)

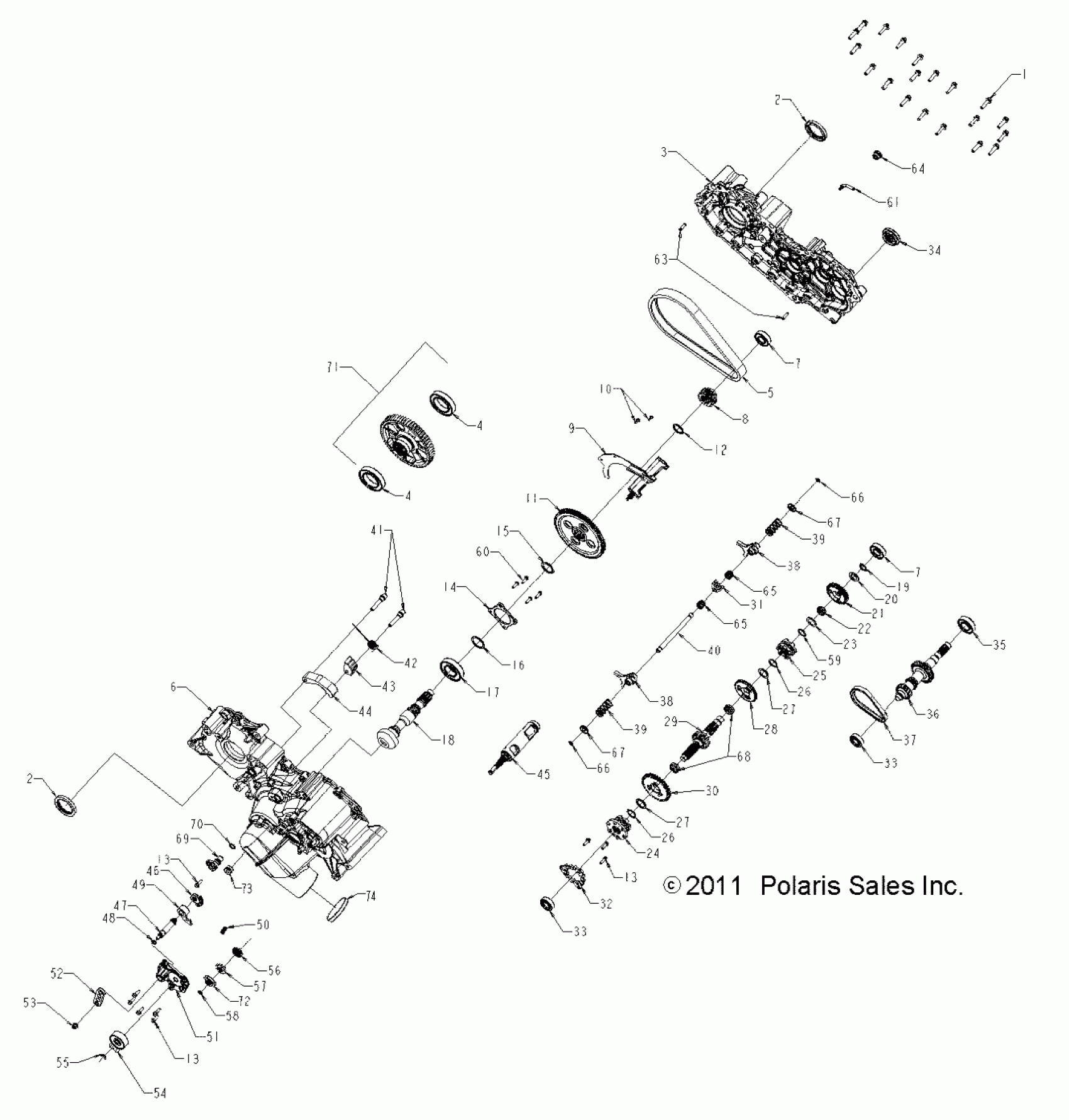

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ DRIVE TRAIN, MAIN GEARCASE - A13MB46FZ (49ATVGEARCASE1332928) Diagram
#
-
Asm., Gearcase [Incl. All]
1332928
Unavailable
1
SCREW
3234114
$7.19
2
SEAL, TRIPLE LIP
3233878
$32.37
2
SEAL, TRIPLE LIP
3233878
$32.37
3
GEARCASE. COVER, LH, MACH
3235264
$334.39
4
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
4
BEARING-BALL 6010 C3 50 X 80 X 10
3233268
$51.99
5
CHAIN
3234057
$263.99
6
GEARCASE, MAIN, RH, MACH
3235265
$637.99
7
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
7
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
8
SPROCKET, 19T
3234060
$239.99
9
DEFLECTOR, OIL
3234061
$23.99
10
SCREW, TAPPING W/PLAIN WASHER
3233749
$5.59
11
GEAR OUTPUT, 91T
3234062
$251.99
12
RING, RETAINING
3233699
$7.19
13
SCREW, TAPPING
3234247
$5.59
13
SCREW, TAPPING
3234247
$5.59
13
SCREW, TAPPING
3234247
$5.59
14
COVER, CENTER DRIVE BEARING
3234063
$27.99
15
RING, RETAINING
3233364
$6.39
16
SHIM
3234271
$19.99
17
BEARING,BALL 6207 C3 35X72X17
3234065
$47.99
18
PINION, CENTER DRIVE, 13T
3234263
$405.59
19
RING, RETAINING
3234067
$7.99
20
WASHER, THRUST
3233176
$9.59
21
GEAR, SPUR
3234352
$99.99
22
BEARING, NEEDLE
3233009
$39.99
23
WASHER
3233855
$10.39
24
DOG, L/P
3234257
$143.99
25
DOG, ENGAGEMENT, 6 FACE
3234258
$91.99
26
RING, RETAINING
3233306
$4.79
26
RING, RETAINING
3233306
$4.79
27
WASHER, THRUST
3234248
$9.59
27
WASHER, THRUST
3234248
$9.59
28
SPROCKET, 38T, 6 FACE
3234290
$151.99
29
SHAFT, REVERSE, 26T
3234280
$259.99
30
GEAR, 33T, 6 FACE
3234291
$163.99
31
COLLAR-SHIFT
3234073
$31.99
32
Plate, Park, 12 Face
3233915
$39.99
33
BEARING, BALL
3234274
$27.99
33
BEARING, BALL
3234274
$27.99
34
SEAL
3234851
$35.99
35
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
36
SHAFT, INPUT
3234348
$239.99
37
CHAIN
3234264
$95.99
38
FORK, SHIFT
3234077
$171.99
38
FORK, SHIFT
3234077
$171.99
39
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
39
SPRING,COMPRESSION, .92 O.D. X 2.000
3234078
$19.99
40
RAIL, SHIFT SHAFT
3234079
Unavailable
41
PIN, DOWEL
3233432
$7.19
42
SPRING, TORSION
3233431
$23.99
43
CAM, CHAIN TENSIONER
3233434
$12.79
44
SHOE, CHAIN TENSIONER
3233433
$27.99
45
DRUM, SHIFT
3234360
$171.99
46
GEAR-SECTOR,31T
3233832
$31.99
47
SHAFT, SHIFT
3233831
$59.99
48
O-RING
3233869
$5.59
49
Pawl, Detent
3233829
$31.99
50
SPRING, COMPRESSION
3234578
$12.79
51
COVER, SECTOR GEAR W/PINS
3234188
$107.99
52
BELLCRANK
3234584
$23.99
53
NUT, LOCK
3233961
$2.79
54
SWITCH, ROTARY, 6 PIN
3233835
Unavailable
55
RING, RETAINING
3233834
$10.39
56
GEAR, SECTOR, 16T
3233839
$31.99
57
Star, Detent
3233909
$23.99
58
O-RING
3233076
$6.39
59
RING, RETAINING
3234336
$5.59
60
SCREW
3234086
$5.59
61
TUBE, VENT
3234230
$9.59
63
PIN, DOWEL
3234244
$7.19
64
PLUG
3233194
Unavailable
65
SPRING, COMPRESSION
3234089
$23.99
65
SPRING, COMPRESSION
3234089
$23.99
66
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
66
RING,RETAINING BASIC,EXTERNAL 0.428
3234090
$10.39
67
WASHER-CUP
3234091
$9.59
67
WASHER-CUP
3234091
$9.59
68
BEARING, NEEDLE
3233103
$31.99
69
SENSOR, SPEED
4012167
$100.38
70
O-RING
3234302
$7.19
71
SUBASM., SHAFT, 59T
3234421
$752.39
72
DISC, LOCKOUT
3234081
Unavailable
73
PLUG, MAGNETIC
3234529
Unavailable
74
PLUG, EXPANSION
3022301
$7.99
