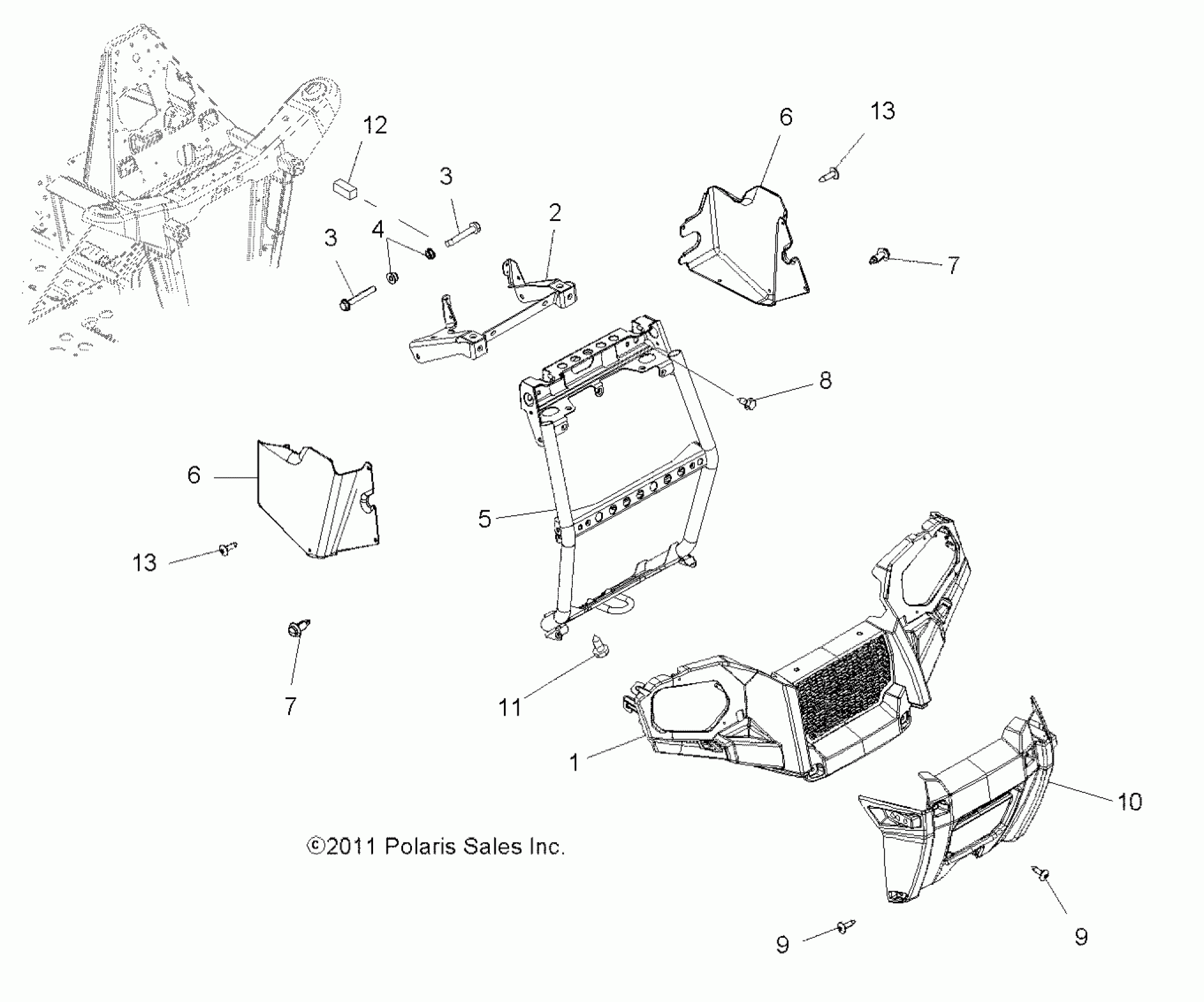

Polaris HAWKEYE 400 HO 2X4 - A13MB46FZ BODY, FRONT BUMPER and MOUNTING - A13MB46FZ (49ATVBUMPER12SP500F) Diagram

#

Description
Price

1

BUMPER, FRONT, BLACK

5438559-070

$159.99

2

BRACKET, RADIATOR, UPPER, BLACK

5255572-329

$67.99

3

BOLT, FLANGE

7518341

$4.79

3

BOLT, FLANGE

7518341

$4.79

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

5

FRAME, BUMPER, FRONT, BLACK

1018374-067

$651.19

6

SHIELD, SIDE, RADIATOR, LH

5438689

$27.99

6

SHIELD, SIDE, RADIATOR, RH

5438690

$34.99

6

SHIELD, SIDE, RADIATOR, LH

5438689

$27.99

6

SHIELD, SIDE, RADIATOR, RH

5438690

$34.99

7

Rivet

7661855

$1.49

7

Rivet

7661855

$1.49

8

SCREW

7517386

$1.49

9

SCREW

7517685

$1.59

9

SCREW

7517685

$1.59

10

COVER, RADIATOR ACCESS, BLACK

5438557-070

$91.99

11

SCREW

7515399

$1.49

12

PLUG, FRAME

5810467

Unavailable

13

SCREW

7519092

$1.49

13

SCREW

7519092

$1.49
