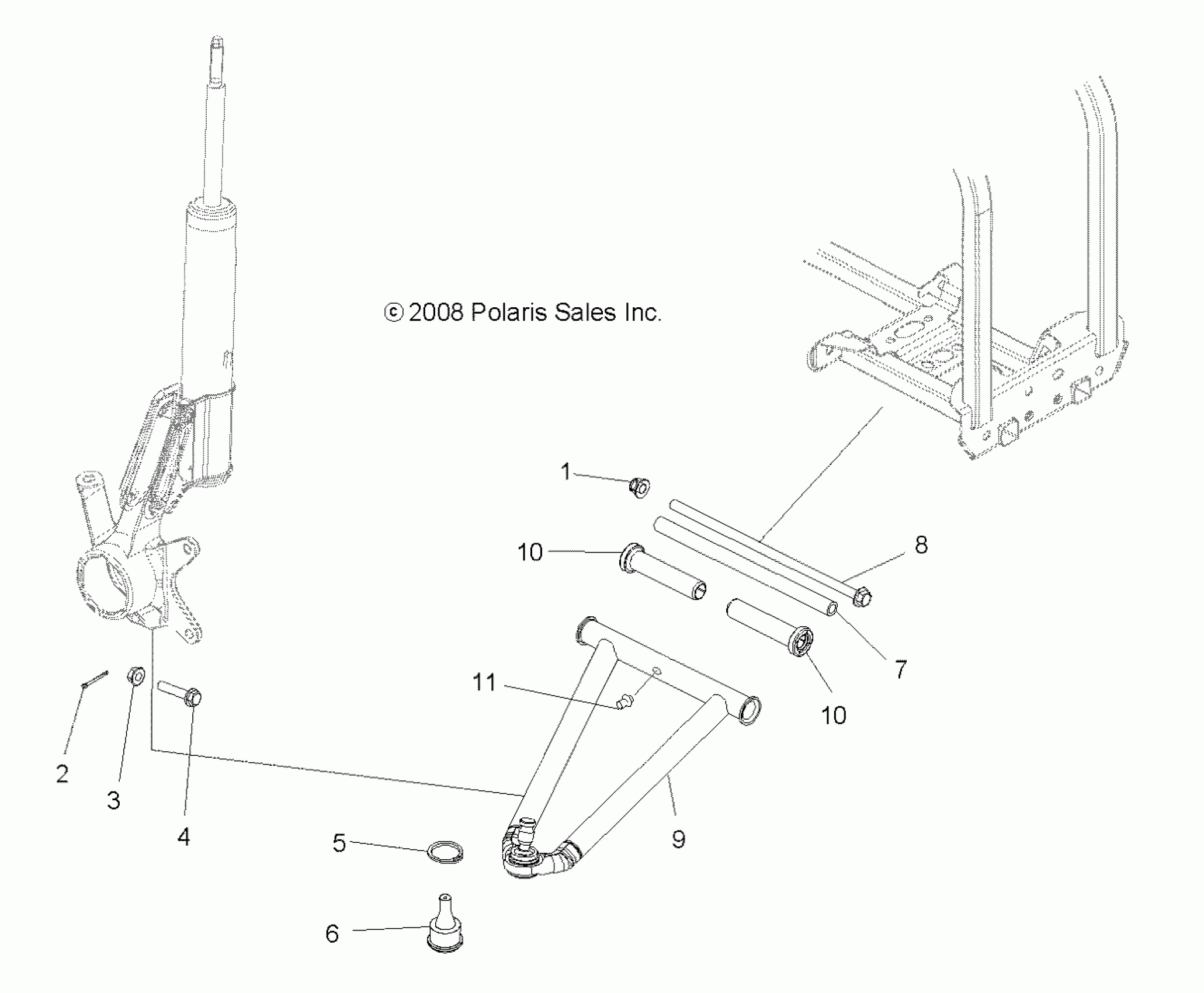

Polaris HAWKEYE 300 2X4 - A10LB27AA SUSPENSION, A-ARM and STRUT MOUNTING - A10LB27AA (49ATVAARM09SP400) Diagram

#

Description
Price

1

Nut, Flange

7547313

$1.49

2

Pin, Cotter

7661203

$1.49

3

Nut, Flange

7547317

Unavailable

4

Screw

7518698

$7.19

5

Ring, Retainer, External

7710533

$2.39

6

Joint, Ball

7081263

$39.99

7

Tube, Pivot

5134926

$28.32

8

Screw, Flange

7518458

$7.99

9

A-Arm, Black, LH

1542616-067

Unavailable

9

A-Arm, Black, RH

1542617-067

Unavailable

10

Bushing, A-Arm, Long, Grey

5436973

$5.19

10

Bushing, A-Arm, Long, Grey

5436973

$5.19

11

Fitting, Lubrication

7080433

$1.49
