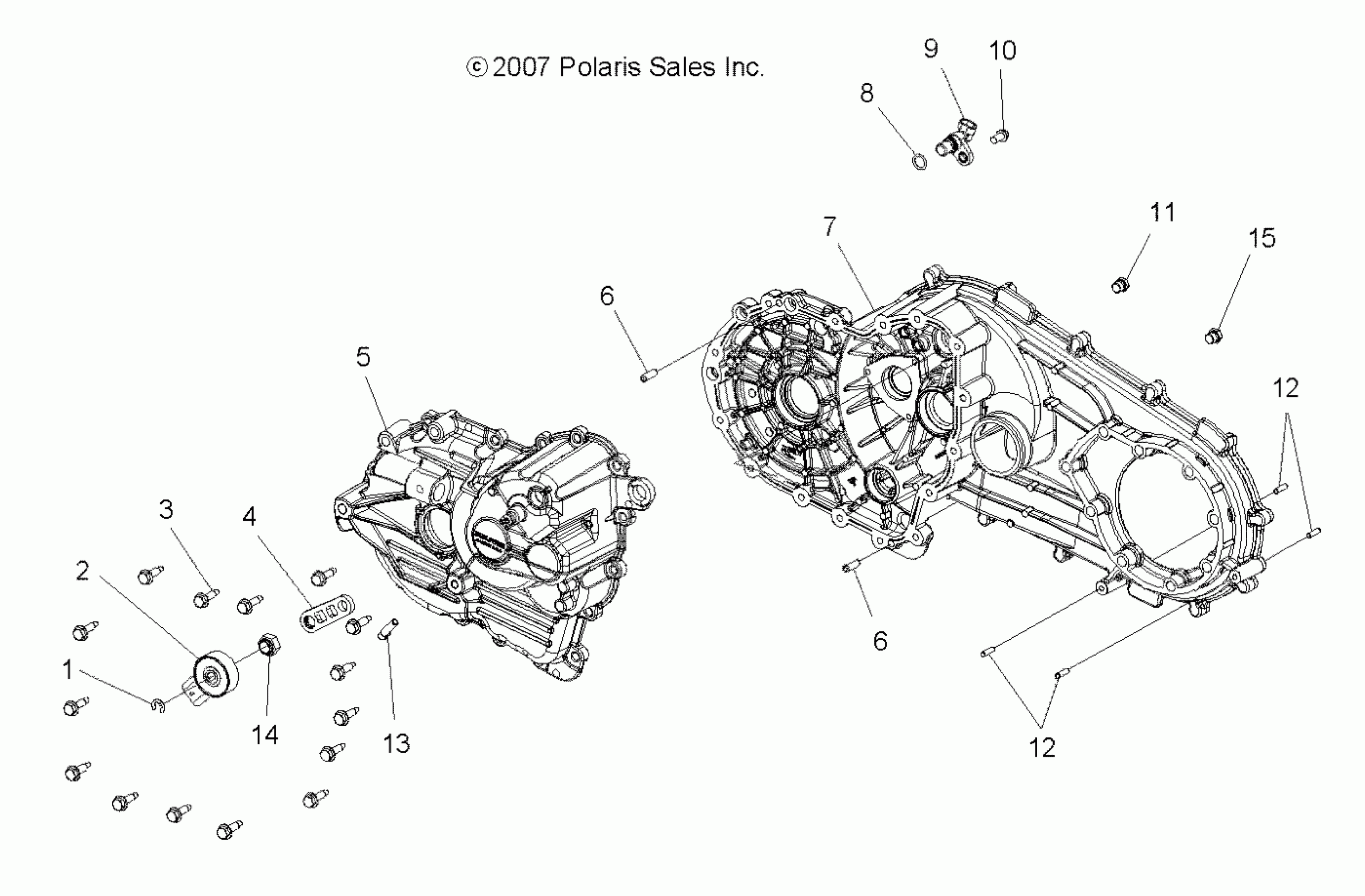

Polaris HAWKEYE 300 2X4 - A09LB27AA DRIVE TRAIN, MAIN GEARCASE - A09LB27AA (49ATVTRANSCVR08HAWKINTL) Diagram

#

Description
Price

-

Asm., Transmission, Shaft, Park, 2x4 [Incl. All]

1332697

$1,434.99

1

RING, RETAINING

3233834

$10.39

2

SWITCH, ROTARY

3233835

Unavailable

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

Bellcrank

3234587

Unavailable

5

Case, RH

3234448

$302.99

6

PIN, DOWEL

3234244

$7.19

6

PIN, DOWEL

3234244

$7.19

7

Case, LH

3234449

$419.99

8

O-RING

3234302

$7.19

9

SENSOR, SPEED

4012167

$100.38

10

Screw

3234311

$1.49

11

Plug

3234333

Unavailable

12

PIN, DOWEL 6 X 20

3234330

$7.19

12

PIN, DOWEL 6 X 20

3234330

$7.19

13

TUBE, VENT

3234230

$9.59

14

Nut

3234316

$5.43

15

Plug, Drain w/Magnet

3234610

$20.22
