- HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL
WHEEL, REAR and BRAKE DISK/HUBS/BEARING CARRIERS - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVWHEELREAR07HAWK)

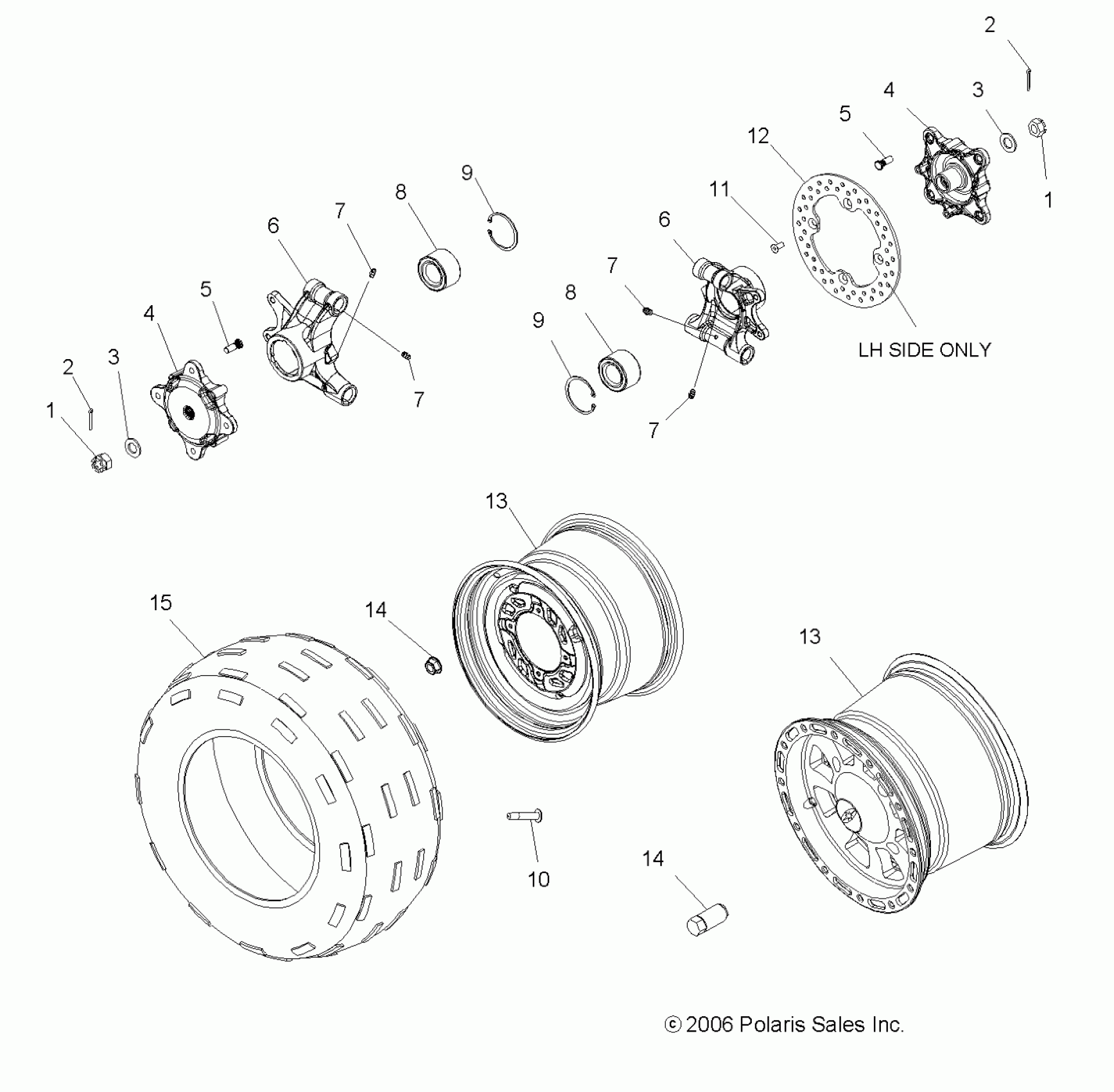

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL WHEEL, REAR and BRAKE DISK/HUBS/BEARING CARRIERS - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVWHEELREAR07HAWK) Diagram
#
Description
Price
1
NUT, CASTLE
7547337
$1.99
1
NUT, CASTLE
7547337
$1.99
2
PIN, COTTER
7661404
$4.79
2
PIN, COTTER
7661404
$4.79
3
WASHER, CONE
7555796
$7.99
3
WASHER, CONE
7555796
$7.99
4
Hub, Rear
5135546
$104.99
4
Hub, Rear
5135546
$104.99
5
Stud [LH27AA/AL]
7518378
$1.59
5
Stud
7515513
$1.49
5
Stud [LH27AA/AL]
7518378
$1.59
5
Stud
7515513
$1.49
6
Carrier, Bearing, Rear, LH
5135671
$119.03
6
Carrier, Bearing, Rear, LH
5135671
$119.03
7
Fitting, Lubrication
7080433
$1.49
7
Fitting, Lubrication
7080433
$1.49
7
Fitting, Lubrication
7080433
$1.49
7
Fitting, Lubrication
7080433
$1.49
8
Bearing
3514342
Unavailable
8
Bearing
3514342
Unavailable
9
RING, RETAINING
7710507
$2.39
9
RING, RETAINING
7710507
$2.39
10
VALVE-RIM
1525017
$5.59
11
Screw
7518451
$9.59
12
Disc, Brake, Rear
5248213
$66.65
13
Rim, Rear, Cast Alum. [LH27AA/AL]
1520899
Unavailable
13
Rim, Rear, Silver [LB27AA][LH27AB]
1520713-486
Unavailable
13
Rim, Rear, Black [LB27AC][LH27AC/AD]
1520713-067
Unavailable
13
Rim, Rear, Cast Alum. [LH27AA/AL]
1520899
Unavailable
13
Rim, Rear, Silver [LB27AA][LH27AB]
1520713-486
Unavailable
13
Rim, Rear, Black [LB27AC][LH27AC/AD]
1520713-067
Unavailable
14
NUT, FLANGE
7547237
$2.39
14
Nut, Wheel [LH27AA/AL]
7547309
$3.59
14
NUT, FLANGE
7547237
$2.39
14
Nut, Wheel [LH27AA/AL]
7547309
$3.59
15
Tire, Rear 22x10-12
5413077
$119.99
15
Tire, Rear, 23x10R12, ACT [LH27AA/AL]
2876085
Unavailable
