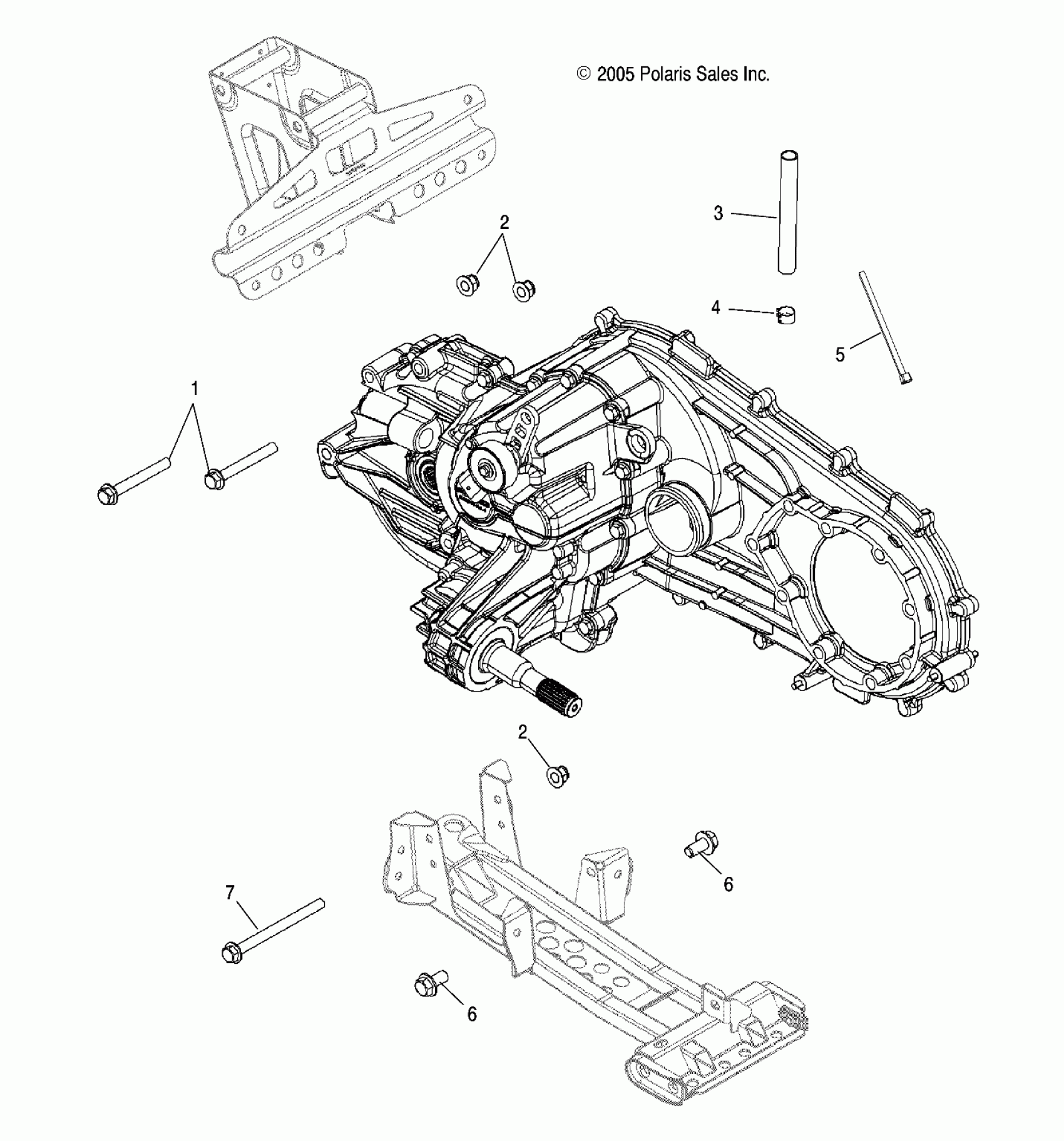

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL TRANSMISSION MOUNTING - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (4999202079920207C10) Diagram

#

Description
Price

1

Screw, Flange

7518466

$4.76

2

Nut, Flange

7547313

$1.19

2

Nut, Flange

7547313

$1.19

3

Line, Fuel

8450003-1525

Unavailable

4

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

6

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

7

Screw, Flange

7518467

$5.56
