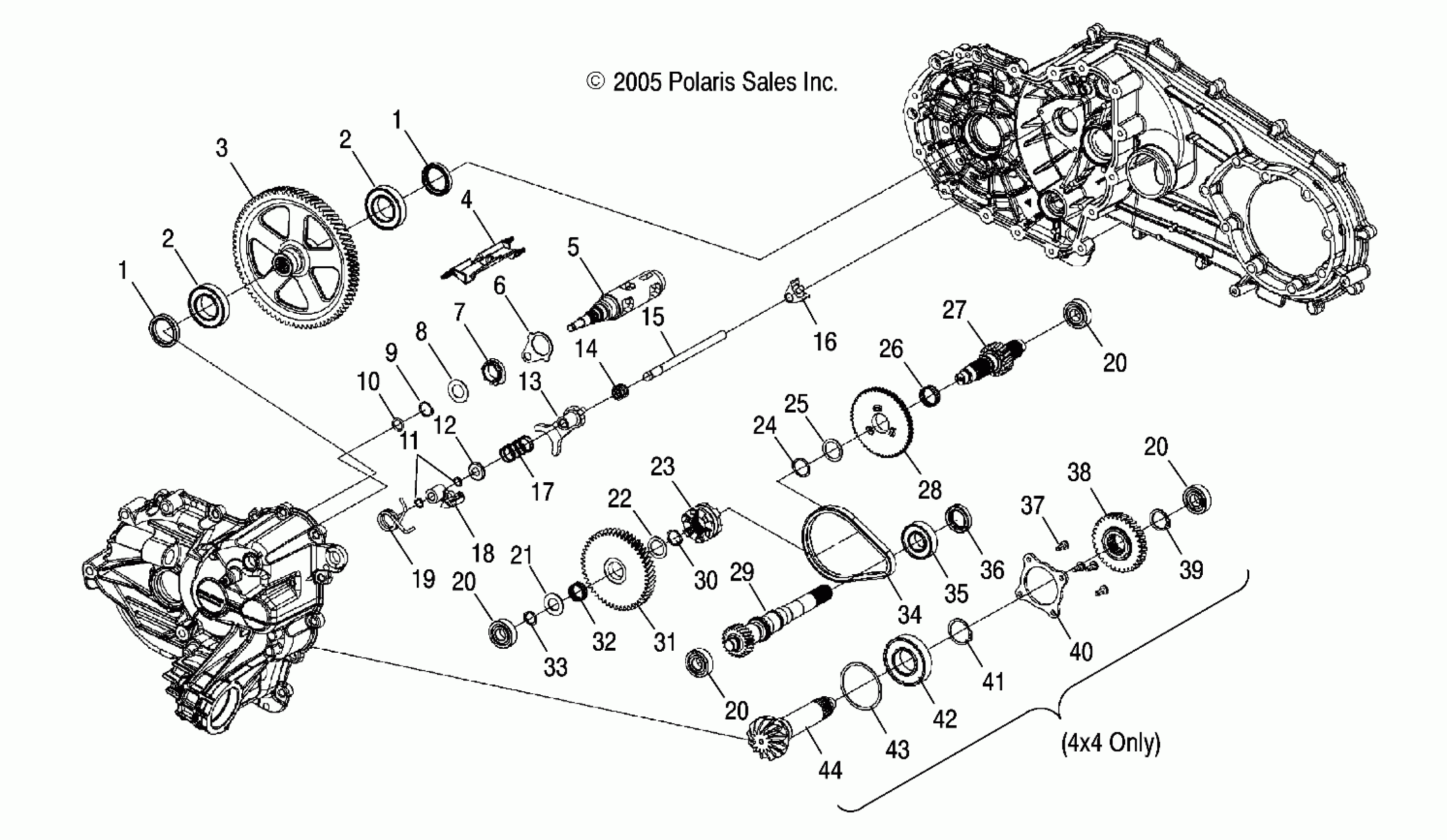

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL TRANSMISSION INTERNALS - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (4999202079920207C12) Diagram

#

Description
Price

-

Asm., Transmission, Shaft, 4x4

1332497

Unavailable

-

Asm., Transmission, Shaft, 2x4

1332500

Unavailable

1

Seal

3234307

$15.99

1

Seal

3234307

$15.99

2

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

2

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

3

Subasm., Gear, 77T [Incl. 2]

1332915

$196.79

4

Trough, Oil

3234254

$10.71

5

Drum, Shift

3234341

Unavailable

6

Spacer

3234337

$4.00

7

Star, Detent

3234250

$10.71

8

Washer, Thrust

3234314

$10.63

9

Ring, Retaining

3234335

$10.63

10

O-RING

3234302

$7.19

11

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

12

WASHER-CUP

3234091

$9.59

13

Fork, Shift

3234328

$37.11

14

SPRING, COMPRESSION

3234089

$23.99

15

Rail, Shift Shaft

3234253

$16.47

16

COLLAR-SHIFT

3234073

$31.99

17

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

18

Pawl, Detent

3234251

Unavailable

19

Spring, Torsion

3234255

$9.11

20

Bearing, Ball [Qty 3 on [2x4]

3234274

$27.99

20

Bearing, Ball [Qty 3 on [2x4]

3234274

$27.99

20

Bearing, Ball [Qty 3 on [2x4]

3234274

$27.99

20

Bearing, Ball [Qty 3 on [2x4]

3234274

$27.99

21

Washer, Thrust

3234319

Unavailable

22

WASHER

3233855

$10.39

23

Engagement Dog

3234258

$91.99

24

RING, RETAINING

3233306

$4.79

25

WASHER, THRUST

3234248

$9.59

26

BEARING, NEEDLE

3233103

$31.99

27

Shaft, Reverse

3234425

Unavailable

28

Sprocket, 52T

3234332

$121.41

29

Shaft, Input, 17T

3234357

Unavailable

30

RING, RETAINING

3234336

$5.59

31

Gear, 50T

3234320

Unavailable

32

BEARING, NEEDLE

3233718

$35.99

33

RING, RETAINING

3234318

$3.19

34

Chain

3234321

$128.87

35

Bearing

3234419

$39.99

36

Seal, Triple Lip

3234322

$32.37

37

Screw [4x4 Only]

3234309

$7.19

38

Gear, 31T [4x4 Only]

3234334

Unavailable

39

RING, RETAINING BASIC, EXTERNA [4x4 Only]

3234327

$7.19

40

Cover, Bearing [4x4 Only]

3234063

$27.99

41

Ring, Retaining [4x4 Only]

3234336

$5.59

42

BEARING,BALL 6207 C3 35X72X17 [4x4 Only]

3234065

$47.99

43

Shim [4x4 Only]

3234326

$7.38

44

Pinion, 13T [4x4 Only]

3234325

$152.37
