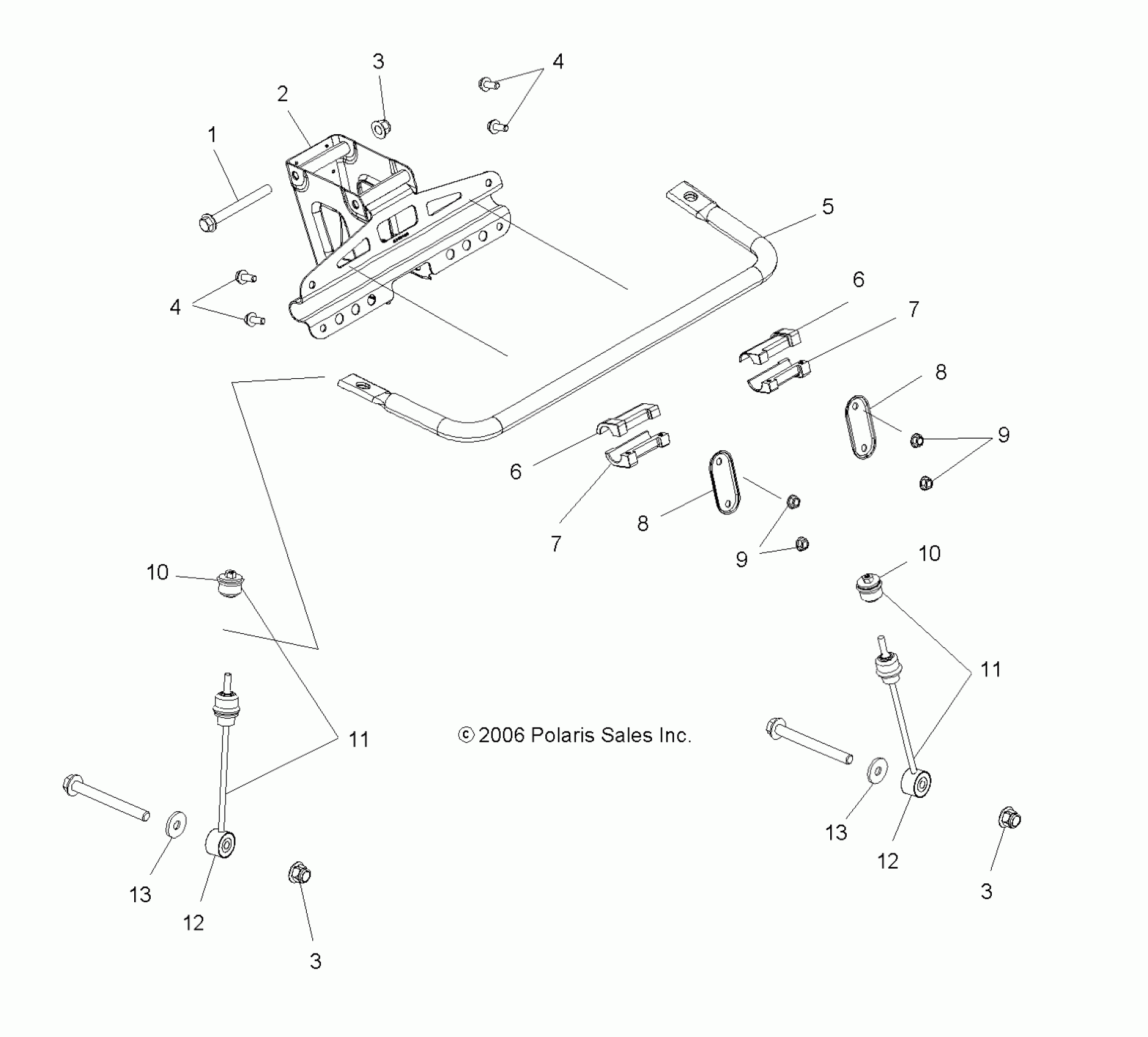

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL TORSION BAR - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVTORSION07HAWK) Diagram

#

Description
Price

1

Screw, Flange

7518526

$3.19

2

Mount, Stabilizer, Black

1015187-067

Unavailable

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

4

BOLT, FLANGE

7518702

$3.99

4

BOLT, FLANGE

7518702

$3.99

5

Bar, Stabilizer, Black

5335197-067

Unavailable

6

Bushing, Stabilizer

5436343

$12.79

6

Bushing, Stabilizer

5436343

$12.79

7

Bushing, Torsion Bar

5436344

$12.79

7

Bushing, Torsion Bar

5436344

$12.79

8

Plate, Retainer

5249464

$17.79

8

Plate, Retainer

5249464

$17.79

9

Nut, Flange

7547317

Unavailable

9

Nut, Flange

7547317

Unavailable

10

Bushing

5412937

Unavailable

10

Bushing

5412937

Unavailable

11

Linkage, Torsion Bar [Incl. 12]

5135360

Unavailable

11

Linkage, Torsion Bar [Incl. 12]

5135360

Unavailable

12

BUSHING

-------

Unavailable

12

BUSHING

-------

Unavailable

13

WASHER, FLAT

7555852

$2.39

13

WASHER, FLAT

7555852

$2.39
