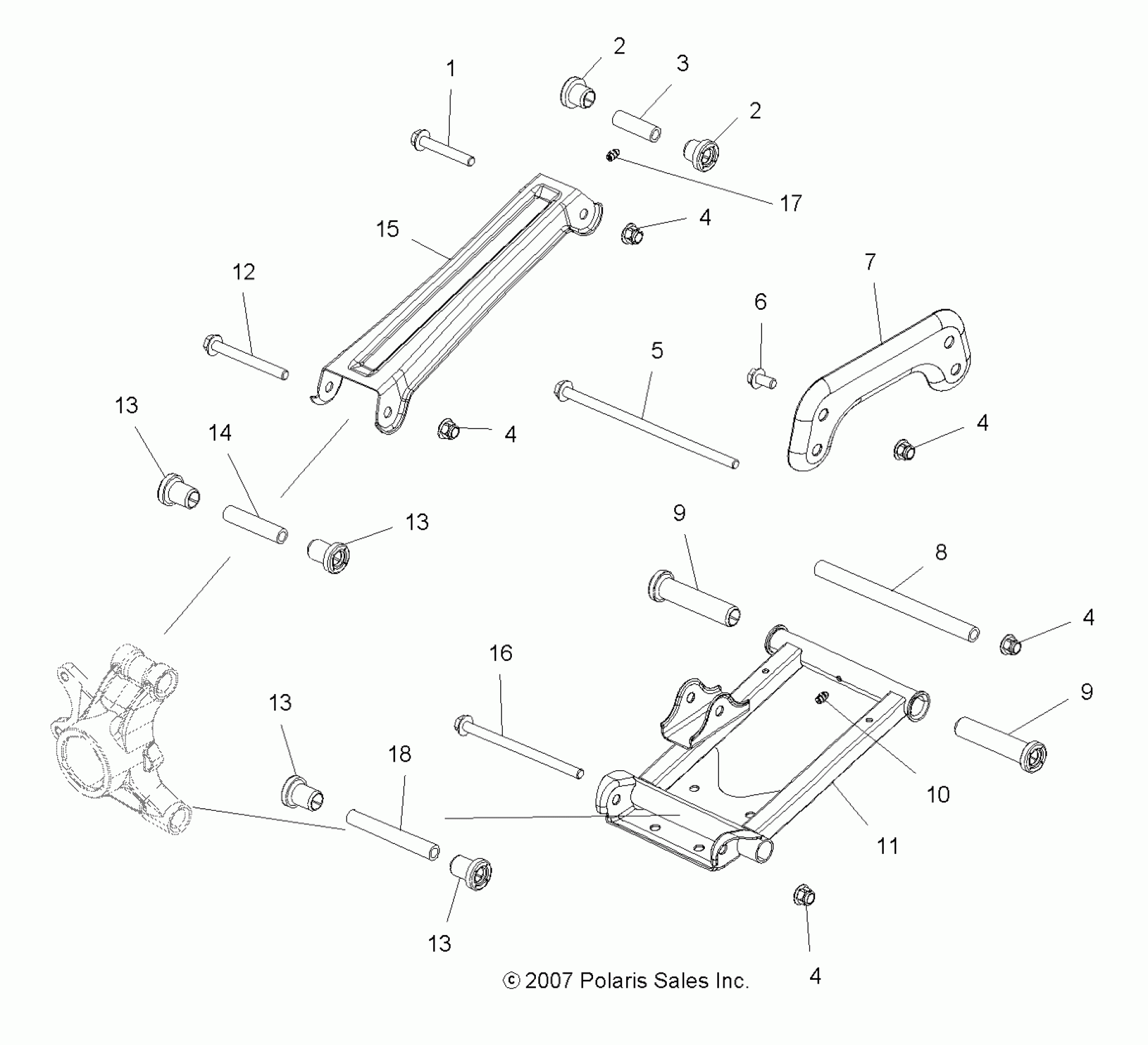

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL SUSPENSION, REAR - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVSUSPRR07HAWK) Diagram

#

Description
Price

1

Screw, Flange

7518473

$4.76

2

Bushing, X-Short, Grey

5436971

$4.84

2

Bushing, X-Short, Grey

5436971

$4.84

3

Tube, Pivot

5135495

$28.32

4

Nut, Flange

7547313

$1.19

4

Nut, Flange

7547313

$1.19

4

Nut, Flange

7547313

$1.19

4

Nut, Flange

7547313

$1.19

4

Nut, Flange

7547313

$1.19

5

Bolt, Flange

7518472

$6.35

6

Bolt

7518700

$3.97

7

Bracket, Support, Rear Suspension, Black

5249760-067

$84.99

8

Tube, Pivot

5135494

Unavailable

9

BUSHING, A-ARM, LONG

5436973

$5.56

9

BUSHING, A-ARM, LONG

5436973

$5.56

10

Fitting, Lubrication

7080433

$1.19

11

Arm, Control, Black, LH

1015704-067

Unavailable

11

Arm, Control, Black, RH

1015705-067

Unavailable

12

Screw, Flange

7518468

$5.56

13

Bushing, Short

5436972

$2.38

13

Bushing, Short

5436972

$2.38

13

Bushing, Short

5436972

$2.38

13

Bushing, Short

5436972

$2.38

14

Tube, Pivot

5135493

$26.65

15

Arm, Control, Upper, Black, LH

5249046-067

Unavailable

15

Arm, Control, Upper, Black, RH

5249047-067

Unavailable

16

Bolt

7518668

$7.14

17

FITTING-LUBRICATION 1/4-28

7080424

$4.76

18

Tube, Pivot

5135637

$32.37
