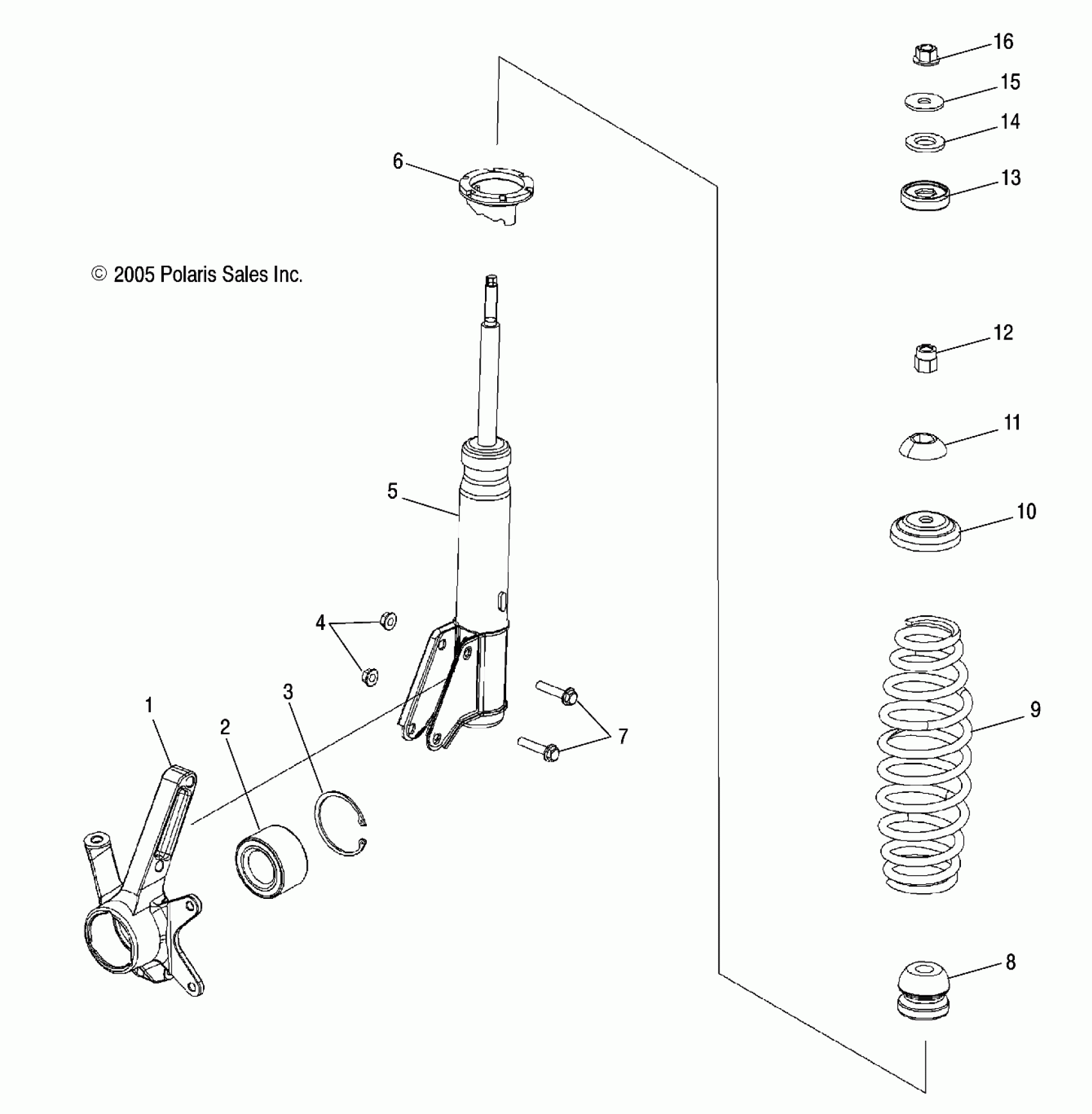

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL STRUT, FRONT - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (4999202079920207B09) Diagram

Knuckle, Front, LH

5135607

$178.08

Knuckle, Front, RH

5135608

Unavailable

Asm., Knuckle Front, LH [Incl.2,3]

1521097

$178.08

Asm., Knuckle, Front, RH [Incl.2,3]

1521098

Unavailable

Bearing

3514342

Unavailable

RING, RETAINING

7710507

$2.39

Nut, Flange

7547313

$1.49

Strut, Front [If built after 9/04/06]

7043274

Unavailable

Strut, Front [If built before 9/04/06]

7043113

$161.49

Cam, Adjuster

5631795

Unavailable

Screw, Flange

7518474

$4.79

BUMPER-MCU,17.8MM ID

5412665

$6.39

Spring, Compression, Black [2x4]

7043214-067

$48.39

Spring, Compression, Black [4x4]

7043135-067

$49.59

Spring, Compression, Silver [LH27AL Only]

7043135-385

$49.59

Spring, Compression, Indy Red [LH27AA Only]

7043135-293

$39.99

RETAINER-SPRING,STRUT

5243364

$19.99

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

Spacer

5135054

Unavailable

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

SPACER-RUBBER

5810291

$3.99

WASHER

7555749

$1.49

Nut, Flange

7547327

$3.99
