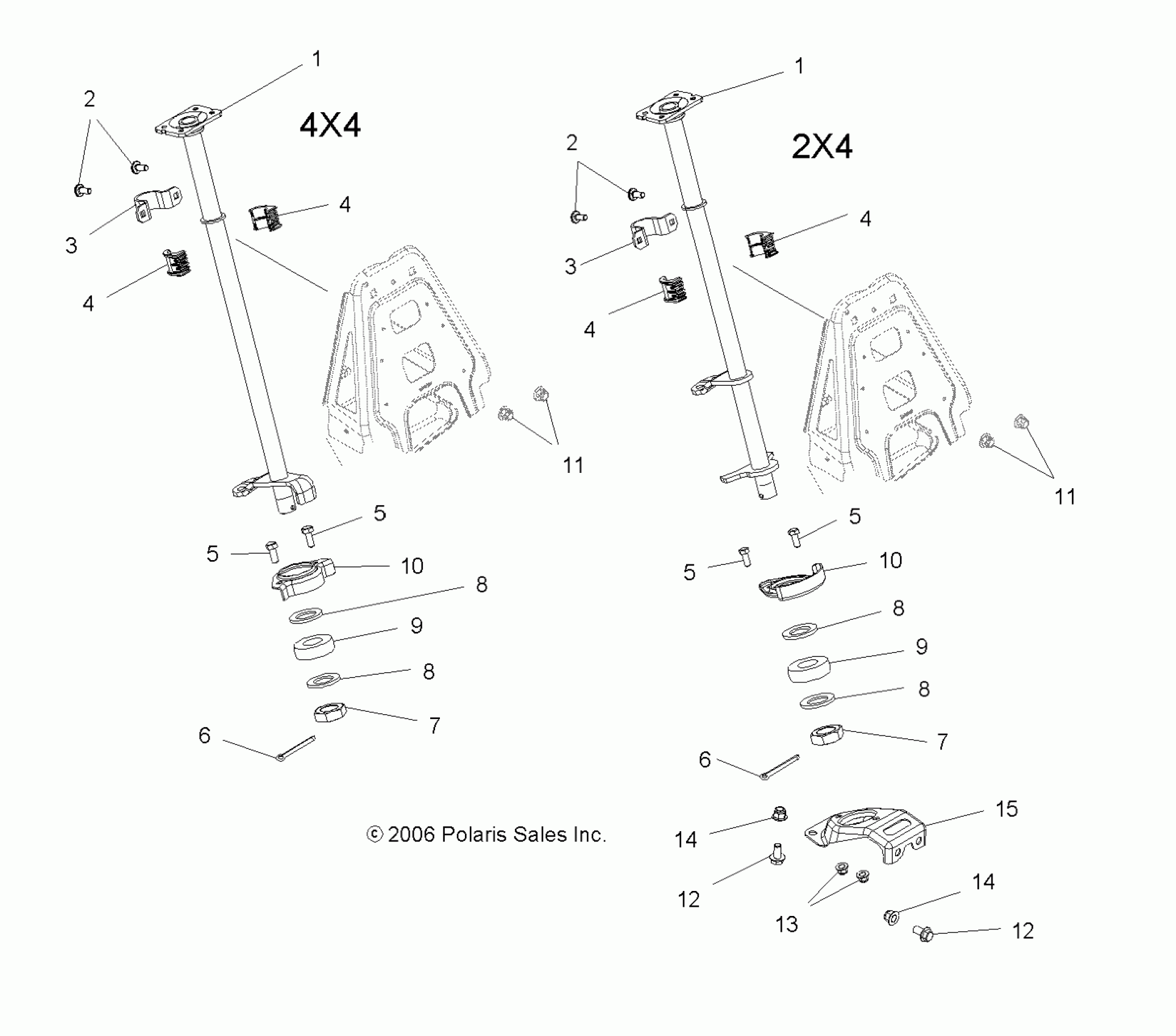

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL STEERING POST (Built 4/01/07 and Before) - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVSTEERING07HAWK) Diagram

#

Description
Price

1

Post, Steering, Black, 2x4

1015732-329

$131.99

1

Post, Steering, 4x4

1015733-329

Unavailable

1

Post, Steering, Black, 2x4

1015732-329

$131.99

1

Post, Steering, 4x4

1015733-329

Unavailable

2

BOLT, CARRIAGE

7518479

$3.99

2

BOLT, CARRIAGE

7518479

$3.99

3

Bracket, Steering Bushing, Upper

5246732

$32.37

3

Bracket, Steering Bushing, Upper

5246732

$32.37

4

Bushing, Steering, Upper

5433866

Unavailable

4

Bushing, Steering, Upper

5433866

Unavailable

4

Bushing, Steering, Upper

5433866

Unavailable

4

Bushing, Steering, Upper

5433866

Unavailable

5

Bolt, Flange [2x4]

7518702

$3.99

5

Screw, Flange [4x4]

7518471

$3.99

5

Bolt, Flange [2x4]

7518702

$3.99

5

Screw, Flange [4x4]

7518471

$3.99

5

Bolt, Flange [2x4]

7518702

$3.99

5

Screw, Flange [4x4]

7518471

$3.99

5

Bolt, Flange [2x4]

7518702

$3.99

5

Screw, Flange [4x4]

7518471

$3.99

6

Pin, Cotter

7661633

Unavailable

6

Pin, Cotter

7661633

Unavailable

7

Nut, Steering Post

7547318

$7.03

7

Nut, Steering Post

7547318

$7.03

8

Bushing

7556162

$3.99

8

Bushing

7556162

$3.99

8

Bushing

7556162

$3.99

8

Bushing

7556162

$3.99

9

Bearing

3514352

Unavailable

9

Bearing

3514352

Unavailable

10

Flangette [4x4]

5249071

Unavailable

10

Flangette, 2x4

5249420

$9.11

10

Flangette [4x4]

5249071

Unavailable

10

Flangette, 2x4

5249420

$9.11

11

Nut, Flange

7547317

Unavailable

11

Nut, Flange

7547317

Unavailable

12

Bolt, Flange [2x4]

7518700

$3.99

12

Bolt, Flange [2x4]

7518700

$3.99

13

Nut, Flange [2x4]

7547317

Unavailable

14

Nut, Flange [2x4]

7547313

$1.49

14

Nut, Flange [2x4]

7547313

$1.49

15

Support, Steering, Lower, Black [2x4]

5249419-067

$239.99
