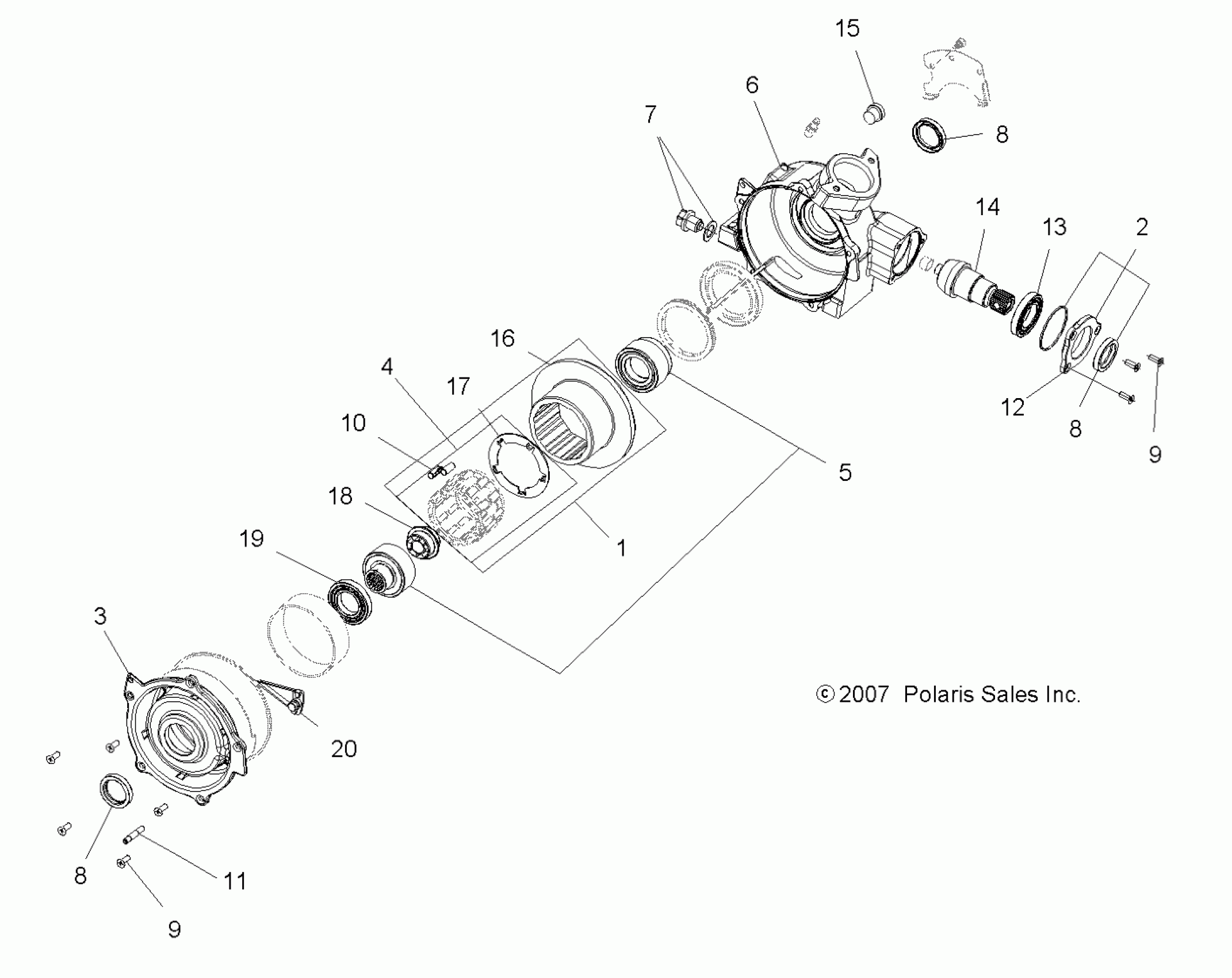

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL GEARCASE, FRONT (4X4)(DEMAND DRIVE) - A07LH27AA/AB/AC/AD/AL (49ATVGEARCASE08SP300) Diagram

Asm., Gearcase, Front [Incl. All][When replacing Front Gearcase also Order 1015959 (Steering Post) for all 2006 and 2007 4x4s, USA and INTL]

1332369

Unavailable

Asm., Clutch [Incl. 4-7]

3234384

$644.99

Asm., Cover, Input [Incl. Seal, O-Ring]

3234397

Unavailable

Asm., Cover, Output [Incl. Seals, Coil, Thrust Plate, Set Screw]

3234382

$571.25

Asm., Roll Cage [Incl. Cage, Clips, Armature Plate]

3234394

$494.99

Asm., Race/Output Hub [Incl. Both Sides]

3234383

$271.17

Asm., Gearcase [Incl. Seals, Vent, Plugs, Bearing]

3234395

Unavailable

Asm., Drain Plug [Incl. Seal, Washer]

3234396

$49.99

Kit, Seal Repair [Incl. Seals, O-Rings]

3234386

Unavailable

Kit, Seal Repair [Incl. Seals, O-Rings]

3234386

Unavailable

Kit, Seal Repair [Incl. Seals, O-Rings]

3234386

Unavailable

Kit, Bolt [Incl. Bolts]

3234385

Unavailable

Kit, Bolt [Incl. Bolts]

3234385

Unavailable

KIT-ROLLER [Incl. Complete Roller Set]

3234393

$111.84

Set, Screw

3234388

Unavailable

Cover, Input

3234401

$107.19

Bearing

3234390

$35.99

Gear, Pinion, 12T

3234399

$400.79

Plug, Fill

3234398

Unavailable

Gear, Ring/Clutch Housing, 44T

3234392

$479.99

Plate, Armature

3234387

Unavailable

Spacer, Hub

3234391

$271.17

Bearing

3234400

$59.99

Button, Thrust, DC [Must also order 3234594]

2203733

$23.99

Asm., Button, Thrust [Must also order 2203733]

3234594

Unavailable
