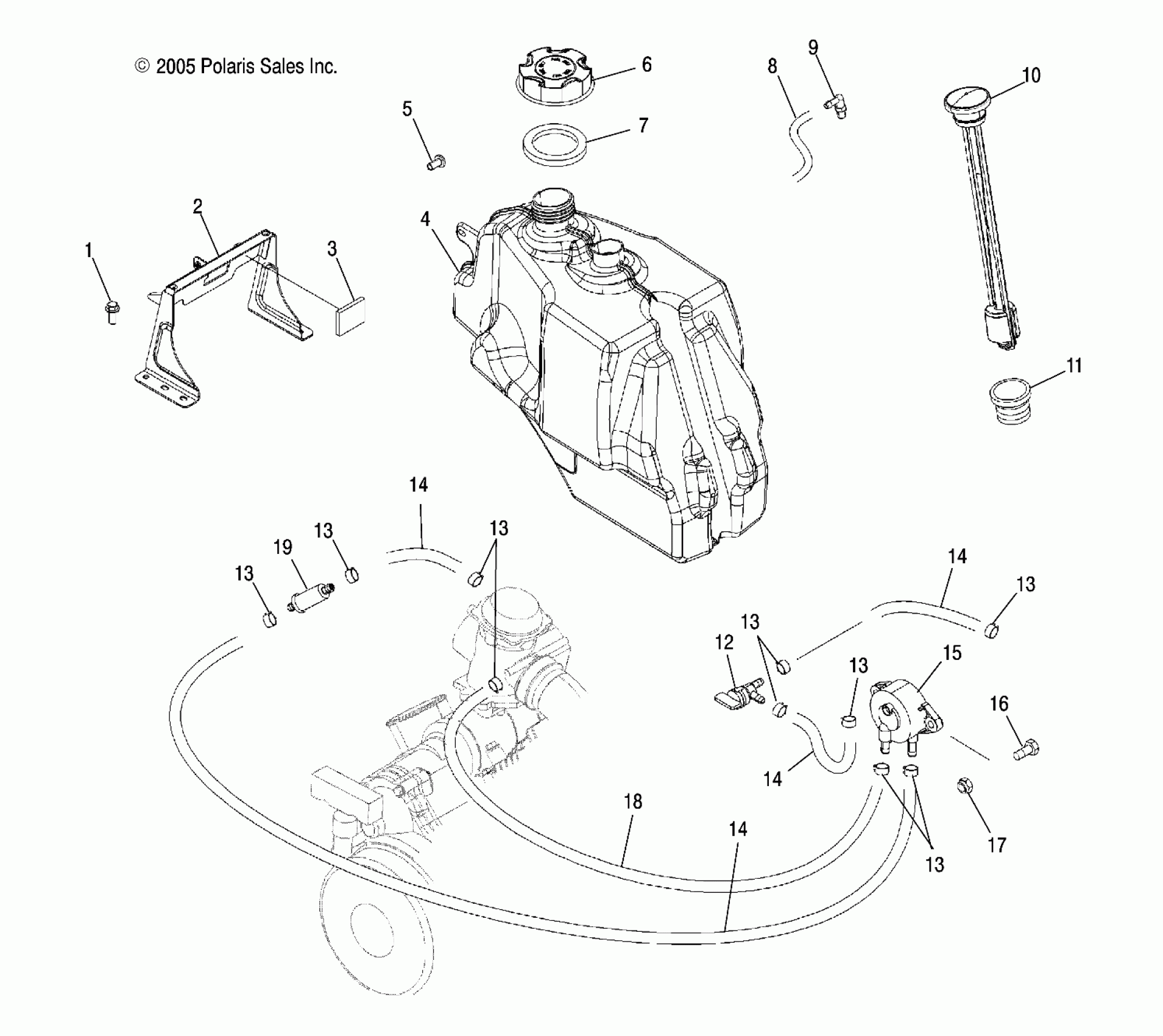

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL FUEL SYSTEM - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (4999202079920207A13) Diagram

#

Description
Price

1

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

Bracket, Fuel Tank, Black

1015349-067

Unavailable

3

Pad, Fuel Filter

5812996

$8.99

4

Asm., Fuel Tank, Remote Gauge

2520718

Unavailable

5

Screw

7518196

$1.49

6

Cap, Gas Tank

5433687

$20.22

7

GASKET

5812123

$5.65

8

LINE, FUEL

8360009-600

Unavailable

9

Vent

5431053

$19.99

10

Gauge, Fuel, Remote

3280491

$39.99

11

Grommet

5413089

$23.99

12

Valve, 90 Degrees

7052249

$24.27

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

13

HOSE CLAMP, RED

7080003

$1.49

14

Hose, Fuel

8450103

Unavailable

14

Hose, Fuel

8450103

Unavailable

14

Hose, Fuel

8450103

Unavailable

14

Hose, Fuel

8450103

Unavailable

15

Asm., Fuel Pump

3089760

Unavailable

16

SCREW

7518576

$3.19

17

NUT-M6 FLANGE,NYLOC

7547274

$1.49

18

Line, Fuel

8450040-600

Unavailable

19

FILTER

2530009

$5.65
