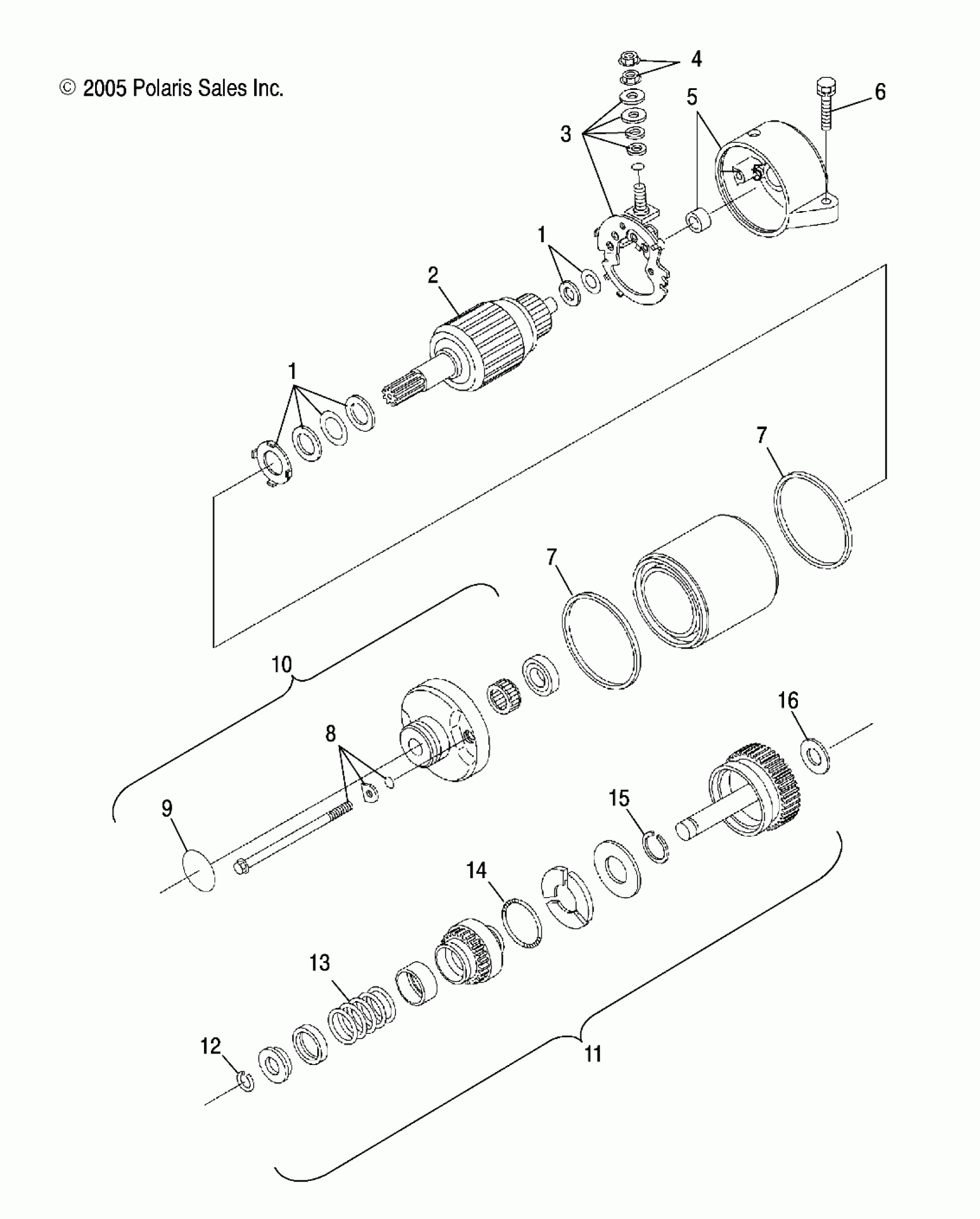

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL ENGINE, STARTING MOTOR - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (4999202079920207D10) Diagram

#

Description
Price

-

Motor, Starter, Complete [Incl. 1-5,7-10]

3089879

Unavailable

1

Washer Set

3089912

Unavailable

1

Washer Set

3089912

Unavailable

2

ASM., ARMATURE

3089915

Unavailable

3

Carbon Brush Set

3088169

$115.99

4

NUT, FLANGE

3083649

$3.99

5

Bracket, Rear

3089914

$66.39

6

BOLT, FLANGE

3084874

Unavailable

7

RING, RUBBER

3084405

Unavailable

7

RING, RUBBER

3084405

Unavailable

8

Asm., Set Bolt

3084983

$23.99

9

O-Ring

3240114

$5.59

10

Asm., Bracket, Front [Incl. 9]

3089911

Unavailable

11

Asm., Gear Shaft [Incl. 12-16]

3089863

Unavailable

12

CLIP

3084409

$7.19

13

SPRING, RETURN

3084410

$2.47

14

SPRING, WEIGHT

3084411

$15.67

15

CLIP

3084412

$9.59

16

WASHER

3240134

Unavailable
