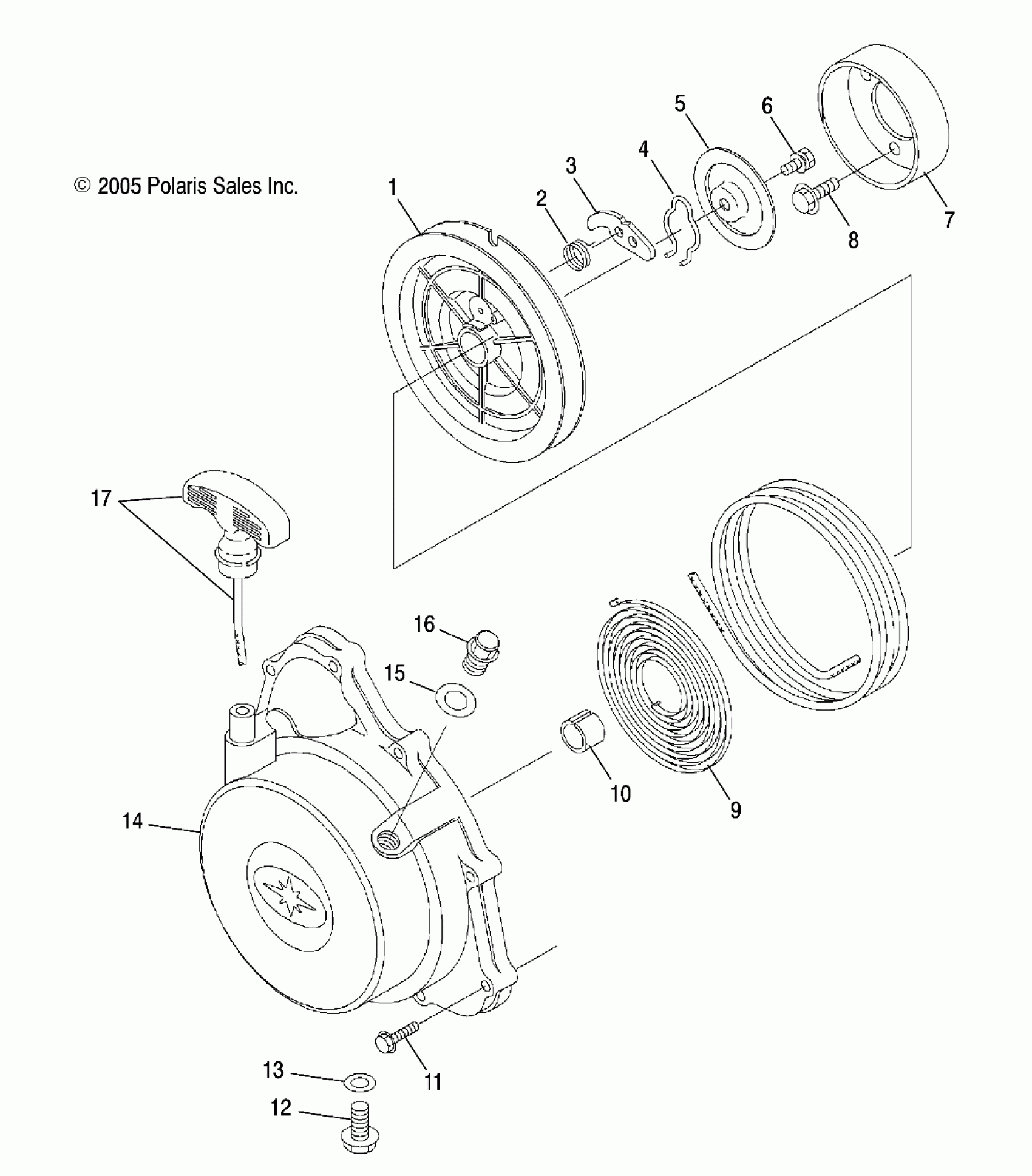

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL ENGINE, RECOIL STARTER - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (4999202079920207D07) Diagram

#

Description
Price

1

Reel, Complete

3084822

$87.99

2

Spring, Return

3083463

$4.03

3

Ratchet

3083378

$20.22

4

Spring, Friction

3083379

$24.27

5

Plate, Friction

3089842

Unavailable

6

Asm., Bolt and Washer

3089843

Unavailable

7

Pulley Starter

3089844

$21.43

8

Bolt

3089846

$3.03

9

Spring Spiral

3083185

$32.95

10

Bushing

3084750

$7.19

11

Bolt

3088064

Unavailable

12

Bolt, Flange

3089845

$1.49

13

Gasket, Aluminum

7555998

$1.49

14

Case, Starter

3089841

$147.60

14

Asm., Recoil Starter [Incl. 1-7,9,10,17]

3089840

$173.59

15

GASKET

3082956

$4.84

16

PLUG

3086749

Unavailable

17

Asm., Rope

3085083

$39.99
