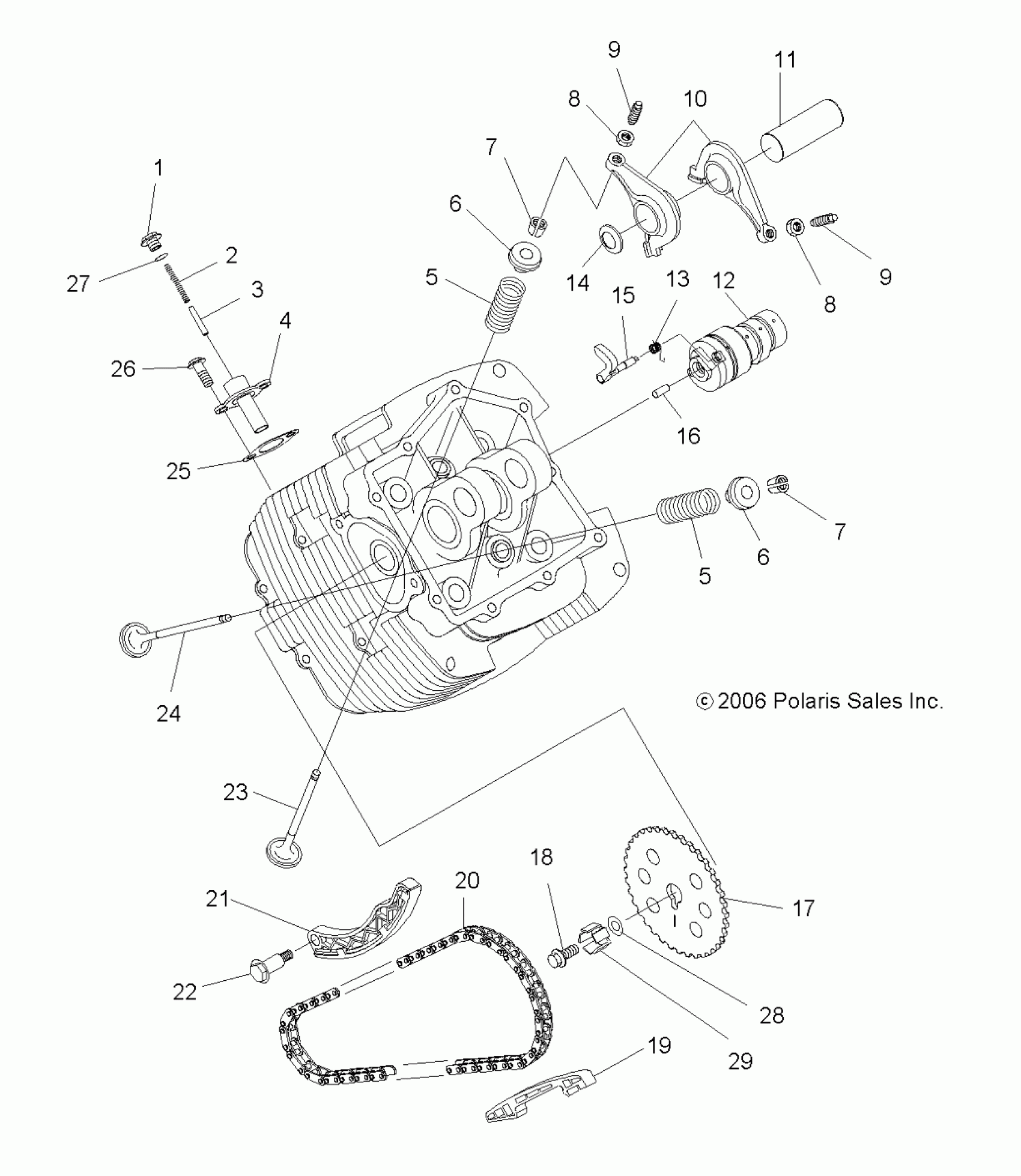

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL ENGINE, INTAKE and EXHAUST - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVINTAKE07HAWK) Diagram

#

Description
Price

1

PLUG

3087129

Unavailable

2

Tensioner

3087131

Unavailable

3

PIN

3087132

$10.39

4

Asm., Tensioner [Incl. 1,2,3,27]

3086493

Unavailable

5

Spring, Valve

3089831

Unavailable

5

Spring, Valve

3089831

Unavailable

6

RETAINER, VALVE SPRING

3087203

Unavailable

6

RETAINER, VALVE SPRING

3087203

Unavailable

7

COLLET, VALVE

3084908

$3.99

7

COLLET, VALVE

3084908

$3.99

8

NUT

3088846

$3.19

8

NUT

3088846

$3.19

9

Screw, Adjusting

3089834

Unavailable

9

Screw, Adjusting

3089834

Unavailable

10

Asm., Rocker Arm [Incl. 8,9]

3089833

Unavailable

11

Shaft, Rocker

3089832

$34.52

12

Camshaft Complete [Incl. 13,15,16]

3089828

$254.98

13

Spring, Return

3089830

Unavailable

14

Washer, Wave

3085836

$5.59

15

Lever, Release

3089829

$45.24

16

PIN, DOWEL

3084899

$7.19

17

Sprocket 2

3089835

Unavailable

18

Bolt

3089969

Unavailable

19

Guide, Chain

3089837

Unavailable

20

Chain, Timing

3089836

Unavailable

21

Lever

3089838

$47.62

22

Bolt, Pivot, Lever

3089980

$7.19

23

Valve, Intake

3085778

Unavailable

24

Valve, Exhaust

3086441

$51.99

25

GASKET, TENSIONER

3086448

$6.39

26

Bolt, Flange

3087150

Unavailable

27

Gasket

3087130

$11.19

28

Washer

3089970

$2.62

29

PLATE

3089975

Unavailable
