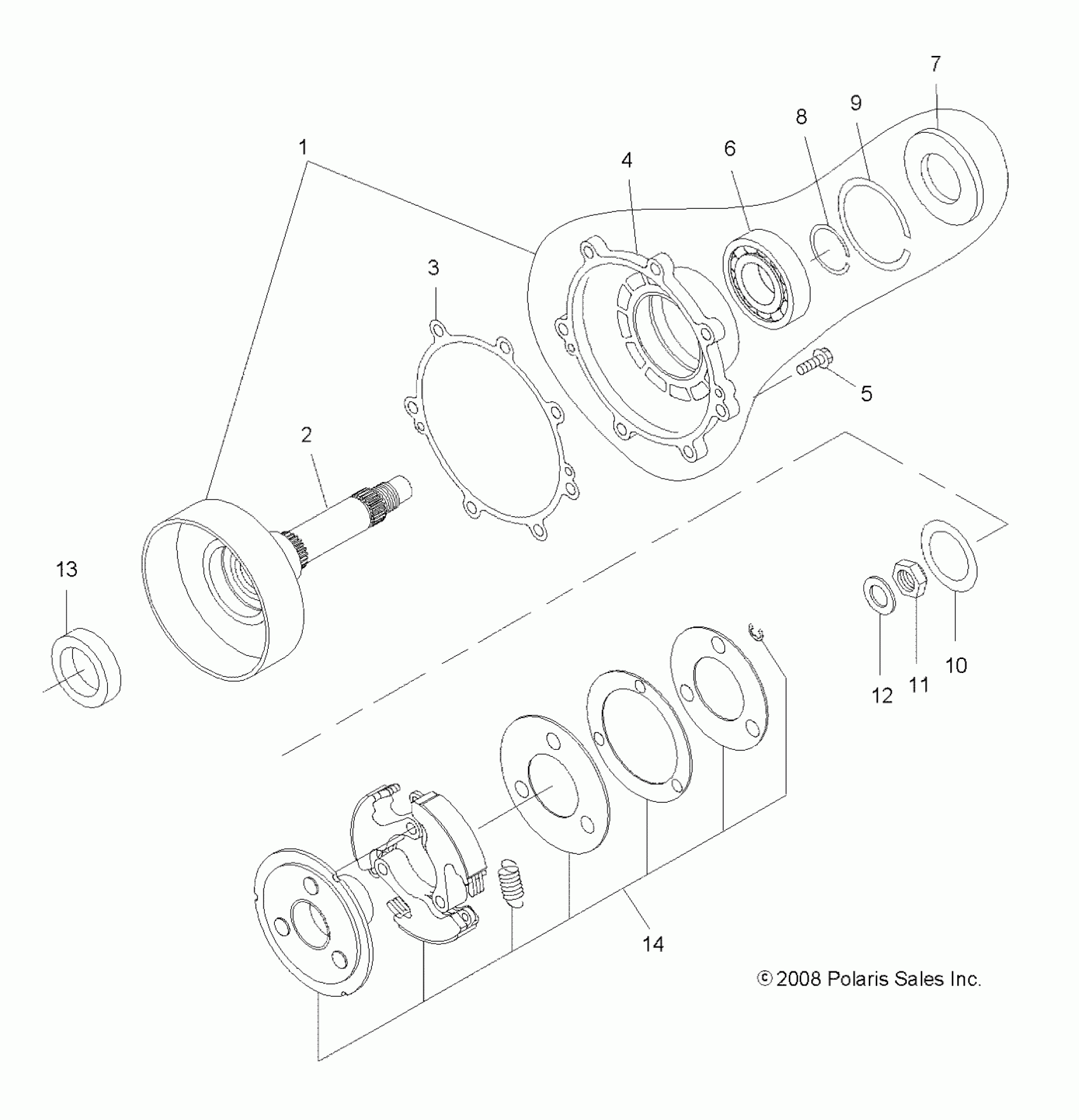

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL ENGINE, CLUTCH - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVCLUTCH08SP300) Diagram

#

Description

Price

1

Asm., Clutch Shaft [Incl. 2,4,6-9]

3089981

Unavailable

2

Shaft, CVT Drive

3089874

Unavailable

3

Gasket, Clutch Cover

3089871

Unavailable

4

Cover, Clutch, Complete [Incl. Cover,6]

3089982

$161.89

5

Bolt

3089988

Unavailable

6

Bearing, Ball

3089866

Unavailable

7

Seal, Oil

3089867

Unavailable

8

Clip

3089868

$13.99

9

Clip

3089869

Unavailable

10

Spacer

3089916

Unavailable

11

Nut, Lock

3089876

$9.99

12

Washer, Lock

3089877

Unavailable

13

Clutch, One Way

3089875

$219.99

14

Clutch

3089979

Unavailable
