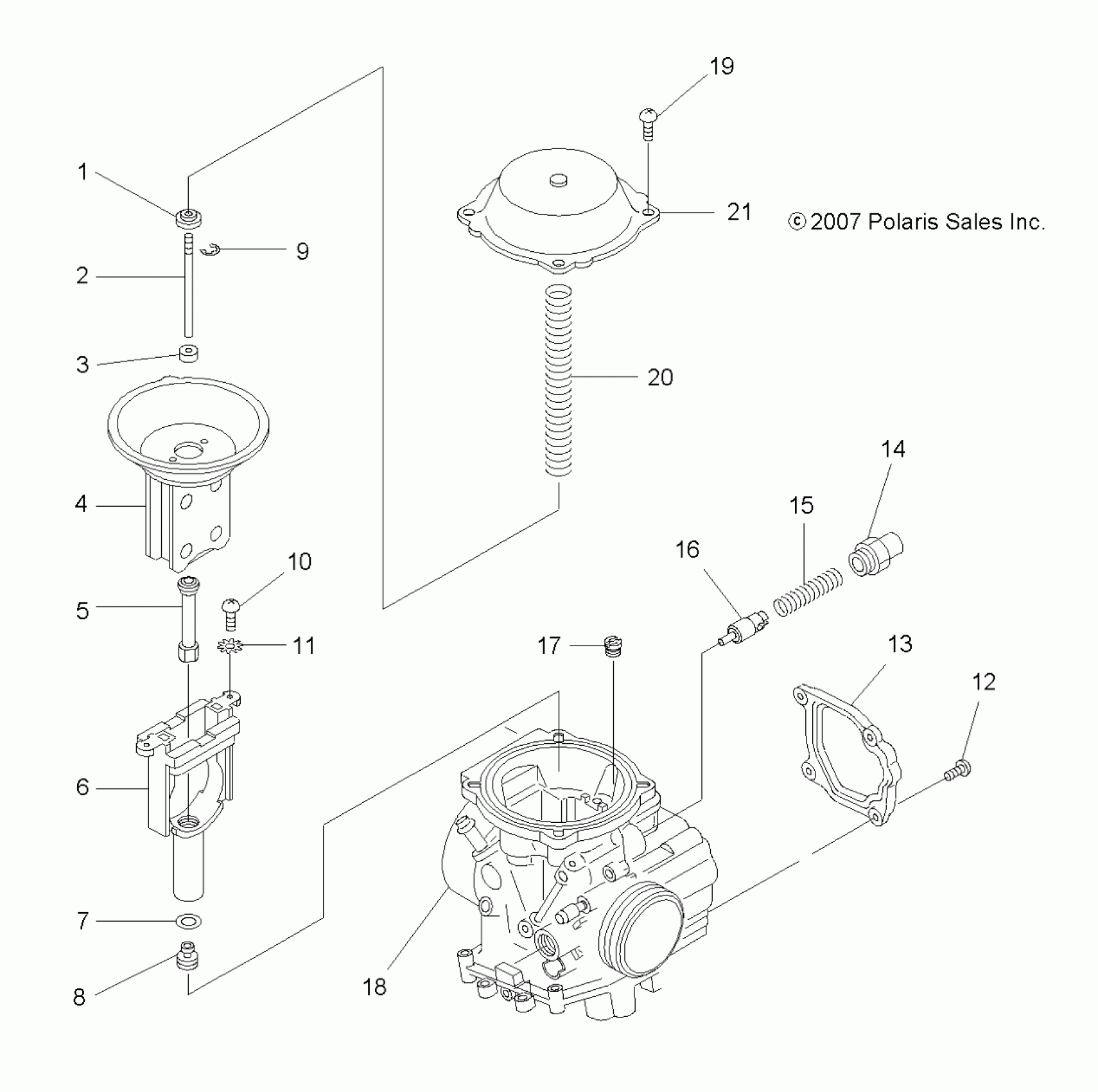

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL ENGINE, CARBURETOR, UPPER - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVCARB07HAWK) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

Needle, Jet, J8-4HC57

3131638

$40.46

3

RING

3130752

$5.59

4

Asm., Diaphragm

3130506

Unavailable

5

Jet, Needle

3131639

Unavailable

6

Asm., Jet Block

3130504

$59.99

7

WASHER

3130014

$1.59

8

Jet, Main, #140

3130527

$8.08

9

E-RING

3130508

$6.46

10

SCREW

3130541

$11.19

11

WASHER, SPRING

3130540

$4.79

12

SCREW

3130535

$7.19

13

COVER

3130511

$43.99

14

Holder, Guide

3130199

$28.32

15

SPRING

3130538

$4.79

16

Asm., Plunger

3131228

$39.99

17

Jet, Air, #140

3131623

Unavailable

18

Asm., Carburetor

3131637

$653.56

19

SCREW

3130924

$1.59

20

Spring

3131129

$27.99

21

ASM., COVER

3130503

$63.99
