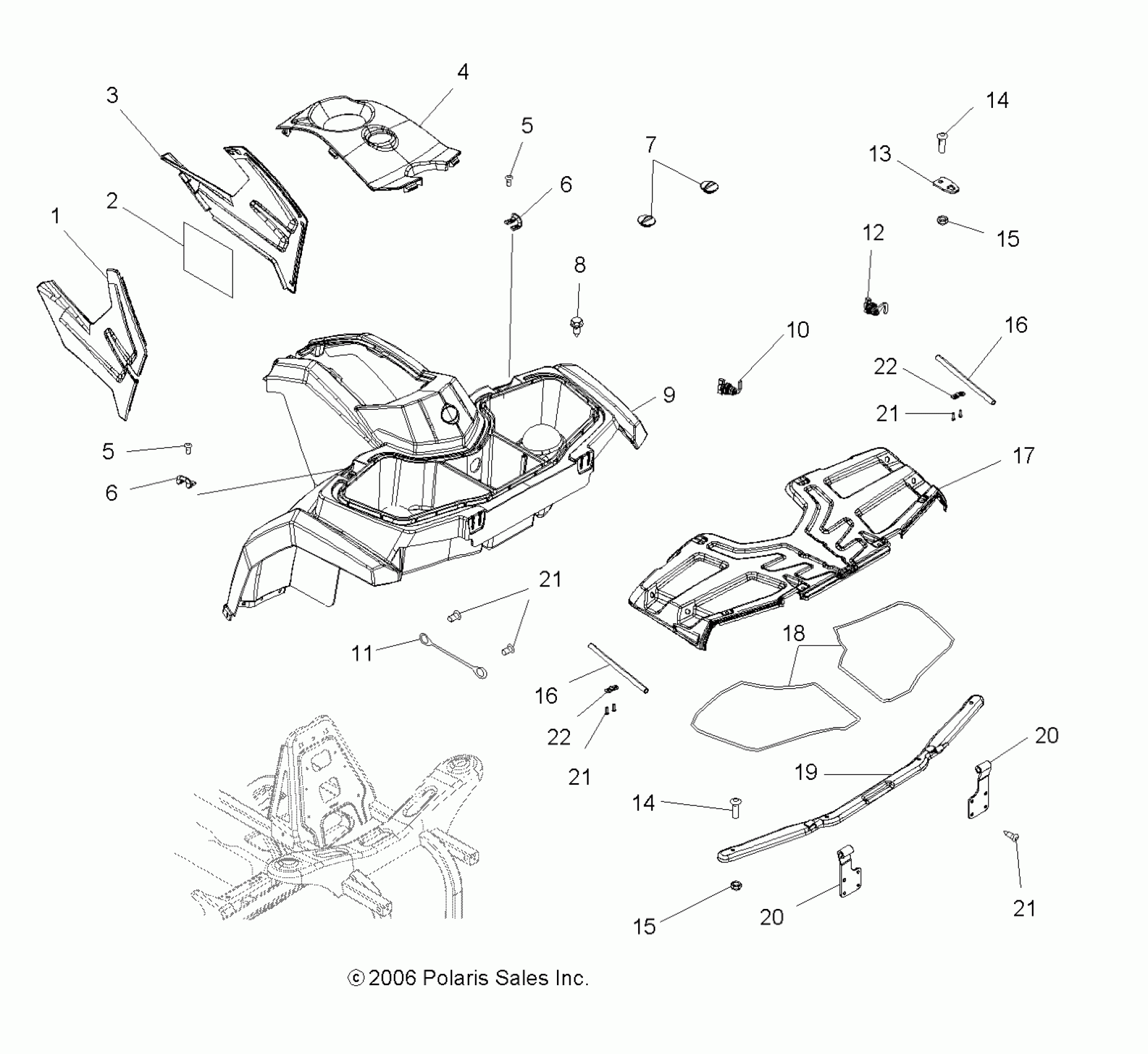

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL CAB, FRONT - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVCAB07HAWK) Diagram

#

Description
Price

1

Panel,Side, RH, Black [LB27AA][LH27AA]

5435708-070

Unavailable

1

Panel, Side, RH, Silver [LH27AB]

5435708-473

Unavailable

1

Panel, Side, RH, Black Metallic [LB27AC][LH27AC]

5435708-177

Unavailable

1

Panel, Side, RH, Painted Black Metallic [LH27AL]

5437228-177

Unavailable

1

Panel, Side, RH, Camo NBU [LH27AD]

5436757-455

Unavailable

2

Foil, LH

5812862

Unavailable

3

Panel w/Foil, LH, Black [LB27AA][LH27AA]

2633182-070

$194.99

3

Panel w/Foil, LH, Silver [LH27AB]

2633182-473

Unavailable

3

Panel w/Foil, LH, Black Metallic [LB27AC][LH27AC]

2633182-177

$194.99

3

Panel w/Foil, LH, Painted Black Metallic [LH27AL]

2633574-177

$99.19

3

Panel w/Foil, LH, Camo NBU [LH27AD]

2633393-455

$196.17

4

Cover, Fuel Tank, Black [LB27AA/AC][LH27AB/AC]

5435714-070

Unavailable

4

Cover, Fuel Tank, Painted Sunset Red Metallic [LH27AL]

5437226-520

$113.32

4

Cover, Fuel Tank, Camo NBU [LH27AD]

5436792-455

$103.19

5

SCREW

7512076

$1.49

5

SCREW

7512076

$1.49

6

Wire, Latch

5334257

$10.03

6

Wire, Latch

5334257

$10.03

7

PLUG-COMPARTMENT

5412981

Unavailable

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

Asm., Cab, Frt, Red [Incl. 5,6,7,18][LB27AA][LH27AA]

2633181-293

Unavailable

9

Asm., Cab, Front, Black Metallic [Incl. 5,6,7,18][LH27AB]

2633181-177

Unavailable

9

Asm., Cab, Front, Camo Green Met [Incl. 5,6,7,18][LB27AC][LH27AC]

2633181-400

Unavailable

9

Asm., Cab, Front, Painted Sunset Red Metallic [Incl. 5,6,7,18][LH27AL]

2633573-520

$539.99

9

Asm., Cab, Front, Camo NBU [Incl. 5,6,7,18][LH27AD]

2633392-455

$549.99

10

Latch, RH

7081242

Unavailable

11

Cable, Lid, Front

7081322

$7.43

12

Latch, LH

7081241

$23.99

13

Bracket, Tie Down

5249049

$1.83

14

SCR-TXPHM6X1.0X25 8.8 RIE

7518535

$3.99

14

SCR-TXPHM6X1.0X25 8.8 RIE

7518535

$3.99

15

NUT-M6 FLANGE,NYLOC

7547274

$1.49

15

NUT-M6 FLANGE,NYLOC

7547274

$1.49

16

Rod

5521744

$19.99

16

Rod

5521744

$19.99

17

Asm., Cover, Front Box [Incl. 10,18][LH27AA Only}

2633188

Unavailable

17

Asm., Cover, Front Box [Incl. 10,18]

2633442

$274.99

18

Seal, Front Storage Box

5521733

$15.67

19

Support, Hinge, Cover

1015340-067

Unavailable

20

Hinge, Cover, Front, Black

5249770-067

$239.99

20

Hinge, Cover, Front, Black

5249770-067

$239.99

21

SCREW

7518238

$3.99

21

SCREW

7518238

$3.99

21

SCREW

7518238

$3.99

21

SCREW

7518238

$3.99

22

Bracket, Hold Down, Cargo Rod

5249343

Unavailable

22

Bracket, Hold Down, Cargo Rod

5249343

Unavailable
