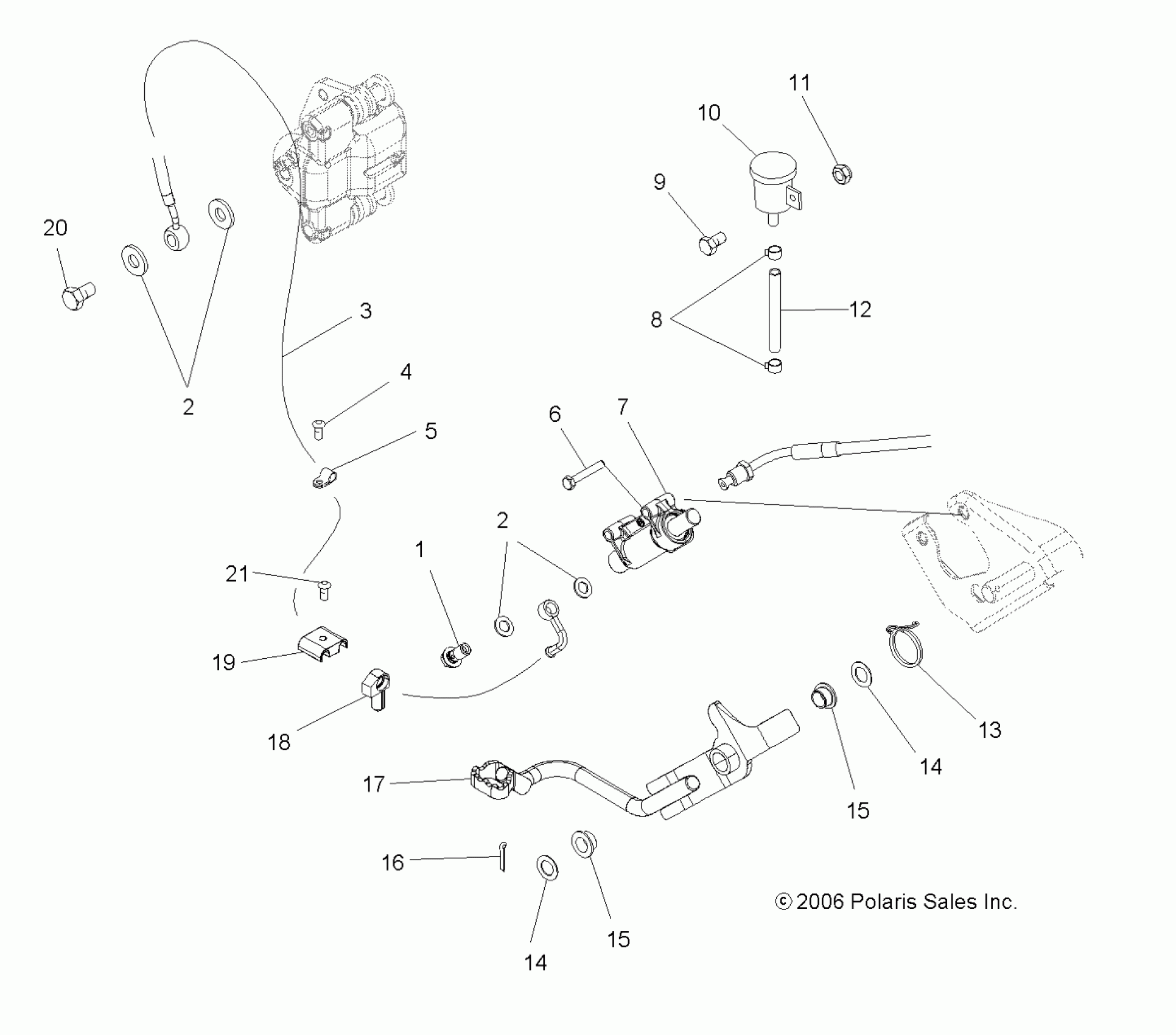

Polaris HAWKEYE 2X4/4X4 - A07LB27AA/AC/LH27AA/AB/AC/AD/AL BRAKE, REAR - A07LB27AA/AC/LH27AA/AB/AC/AD/AL (49ATVBRAKEFOOT07HAWK) Diagram

#

Description
Price

1

BOLT, BANJO

1910499

$5.59

2

Seal [If built after 9/25/06]

5413212

$4.79

2

Seal [If built before 9/25/06]

5410988

$4.84

2

Seal [If built after 9/25/06]

5413212

$4.79

2

Seal [If built before 9/25/06]

5410988

$4.84

3

Line, Brake, Rear Caliper

1910952

Unavailable

4

SCREW

7512024

$4.79

5

CLAMP, HOSE

7080683

$2.39

6

Screw

7518470

$1.49

7

Cylinder, Master, Brake, Rear

2010258

Unavailable

8

HOSE CLAMP, RED

7080003

$1.49

9

SCREW

7518576

$3.19

10

Asm., Reservoir

1930854

$35.99

11

NUT-M6 FLANGE,NYLOC

7547274

$1.49

12

Hose, Reservoir

1910969

$1.83

13

Spring, Torsion, Brake

7043126

$1.83

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

BUSHING, PEDAL PIVOT

5433189

$3.99

15

BUSHING, PEDAL PIVOT

5433189

$3.99

16

PIN, COTTER

7661401

$1.49

17

Pedal, Brake, Black

1015048-067

$51.99

18

Clip

7670102

$2.39

19

Clip, Retaining, Dual

7670126

$4.79

20

BOLT, BANJO

1910499

$5.59

21

Screw

7517756

$1.49
