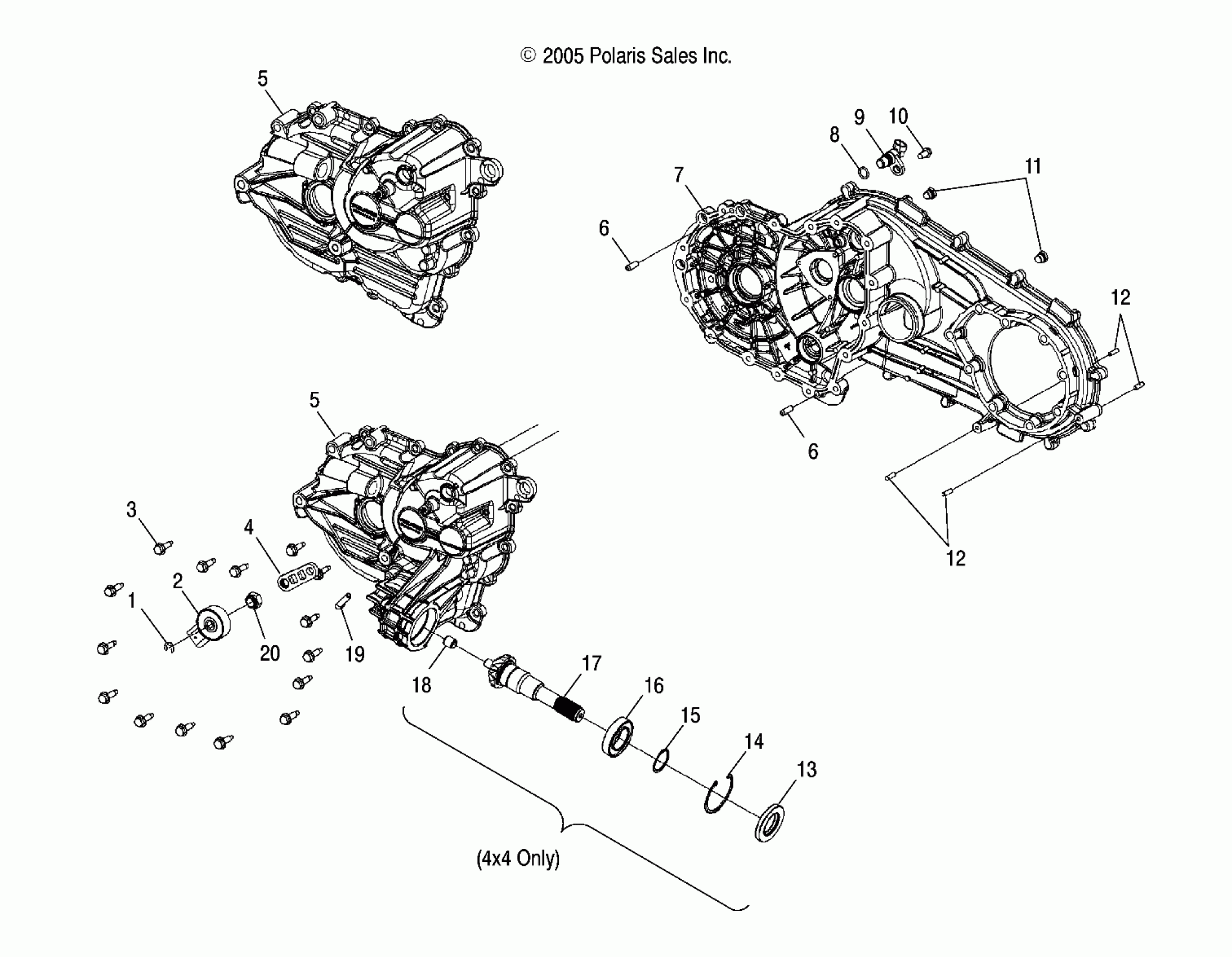

Polaris HAWKEYE 2X4/4X4 - A06LB27AA TRANSMISSION CASES - A06LB27AA/LD27AA/AB/AC/AD (4999202079920207C11) Diagram

#

Description
Price

-

Asm., Transmission, Shaft, 4x4

1332374

$874.99

-

Asm., Transmission, Shaft, 2x4

1332403

$959.99

1

RING, RETAINING

3233834

$10.39

2

SWITCH, ROTARY

3233835

Unavailable

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

Bellcrank

3234252

Unavailable

5

Case, RH [4x4]

3234304

$299.99

5

Case, RH, 2x4

3234338

$295.99

5

Case, RH [4x4]

3234304

$299.99

5

Case, RH, 2x4

3234338

$295.99

6

PIN, DOWEL

3234244

$7.19

6

PIN, DOWEL

3234244

$7.19

7

Case, LH

3234305

Unavailable

8

O-RING

3234302

$7.19

9

Sensor, Speed

3234299

Unavailable

10

Screw

3234311

$1.49

11

Plug

3234333

Unavailable

12

PIN, DOWEL 6 X 20

3234330

$7.19

12

PIN, DOWEL 6 X 20

3234330

$7.19

13

Seal [4x4 Only]

3234315

$24.27

14

RING,RETNING BVLD INTRNL 2.440 [4x4 Only]

3234312

$7.19

15

Ring, Retaining [4x4 Only]

3234310

$3.83

16

BEARING-BALL 6007 C3 35 X 62 X 14 [4x4 Only]

3233265

$39.99

17

Asm., Snorkel [4x4 Only]

3234308

$159.99

18

Bearing [4x4 Only]

3234313

Unavailable

19

TUBE, VENT

3234230

$9.59

20

Nut

3234316

$5.43
