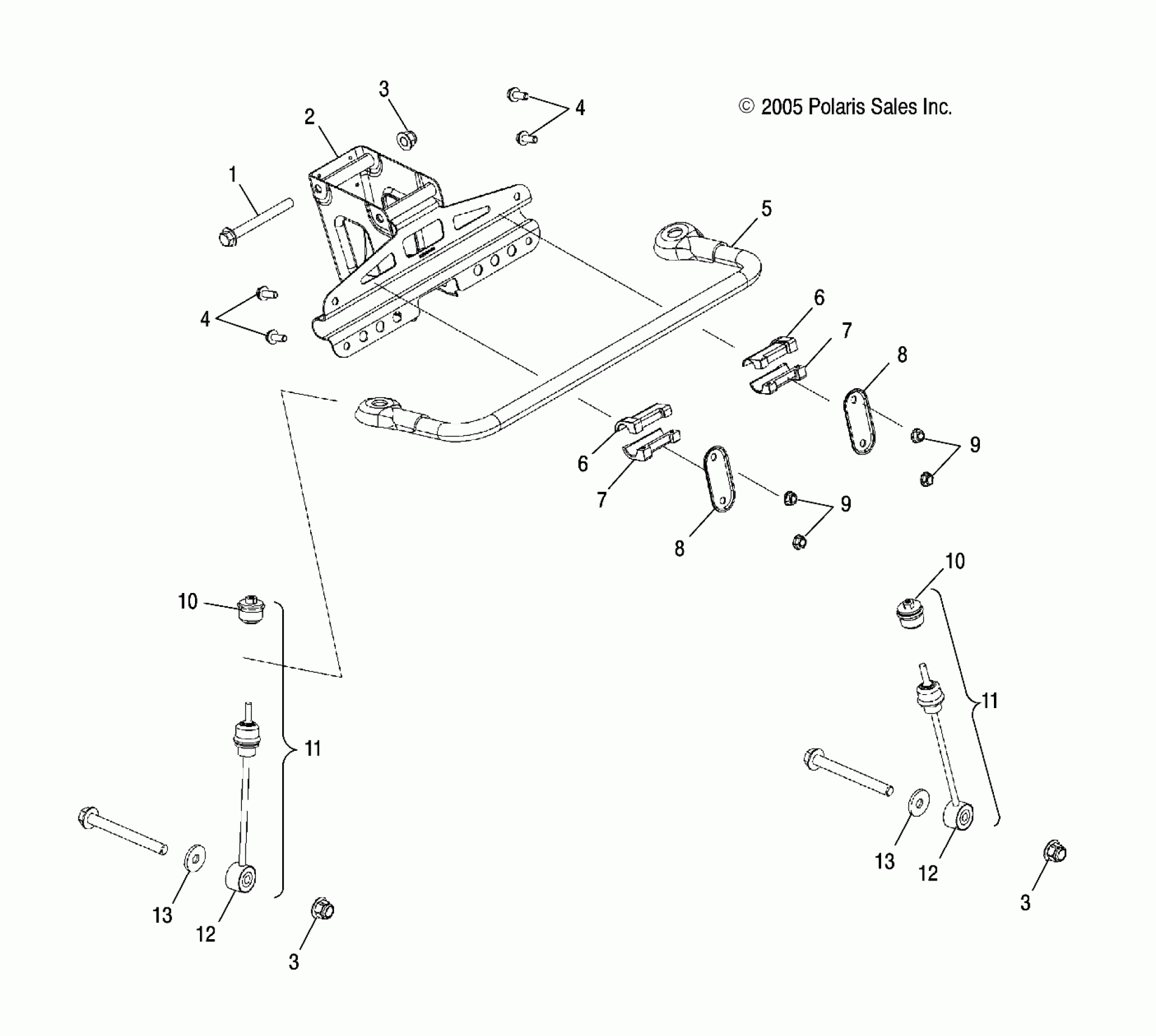

Polaris HAWKEYE 2X4/4X4 - A06LB27AA TORSION BAR - A06LB27AA/LD27AA/AB/AC/AD (4999202079920207C08) Diagram

#

Description
Price

1

Screw, Flange

7518526

$3.17

2

Mount, Stabilizer, Black

1015187-067

Unavailable

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

3

Nut, Flange

7547313

$1.19

4

Screw, Flange

7518450

$1.59

4

Screw, Flange

7518450

$1.59

5

Bar, Torsion, Black

1015186-067

Unavailable

6

Bushing, Stabilizer

5436343

$15.19

6

Bushing, Stabilizer

5436343

$15.19

7

Bushing, Torsion Bar

5436344

Unavailable

7

Bushing, Torsion Bar

5436344

Unavailable

8

Plate, Retainer

5249464

$17.79

8

Plate, Retainer

5249464

$17.79

9

Nut, Flange

7547317

$2.38

9

Nut, Flange

7547317

$2.38

10

Bushing

5412937

Unavailable

10

Bushing

5412937

Unavailable

11

Linkage, Torsion Bar

5135360

$72.84

11

Linkage, Torsion Bar

5135360

$72.84

12

Bushing

5412855

Unavailable

12

Bushing

5412855

Unavailable

13

Washer, Flat

7555853

$2.62

13

Washer, Flat

7555853

$2.62
