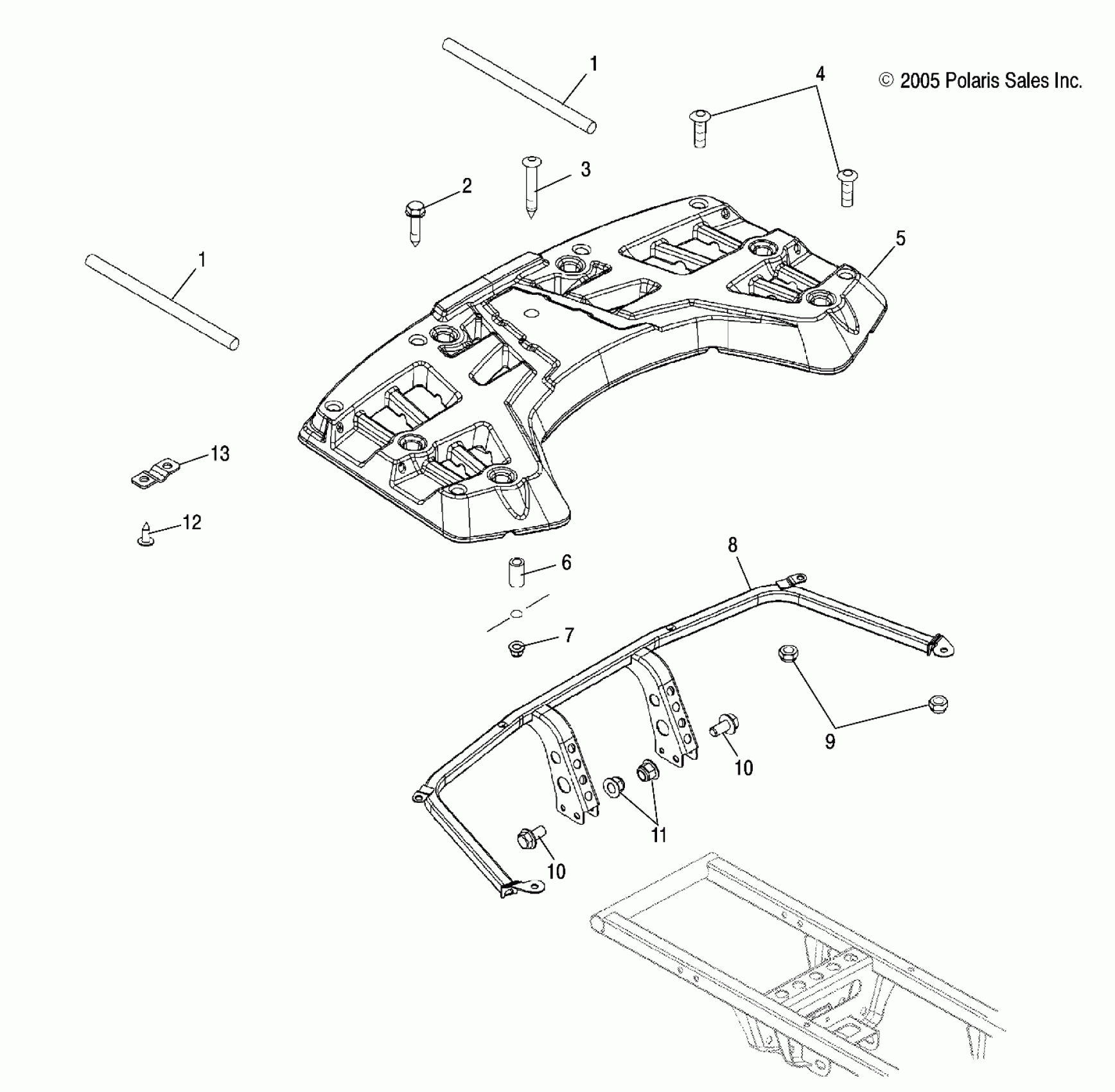

Polaris HAWKEYE 2X4/4X4 - A06LB27AA RACK, REAR - A06LB27AA/LD27AA/AB/AC (4999202079920207A06) Diagram

#

Description

Price

1

Rod, Cargo, Rack

5334785

$29.99

1

Rod, Cargo, Rack

5334785

$29.99

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

3

Screw [If built before 10/01/05]

7518462

$2.39

4

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

5

Asm., Rack, Rear [Incl. Warning Decals & Reflectors]

2633189

$212.70

6

Spacer, Cab, Rear [If built before 10/01/05]

5436146

Unavailable

7

NUT-5/16-18 HX FLG NL-Y [If built before 10/01/05]

7542343

$4.79

8

Support, Rear Rack, Black

1015408-067

Unavailable

9

NUT-M6 FLANGE,NYLOC

7547274

$1.49

10

SCREW, FLANGE

7516732

$1.59

10

SCREW, FLANGE

7516732

$1.59

11

NUT-M8X1.25,HXFLG,NYLON INS

7547317

Unavailable

12

SCREW

7512076

$1.49

13

Bracket, Hold Down, Cargo Rod

5249343

Unavailable
