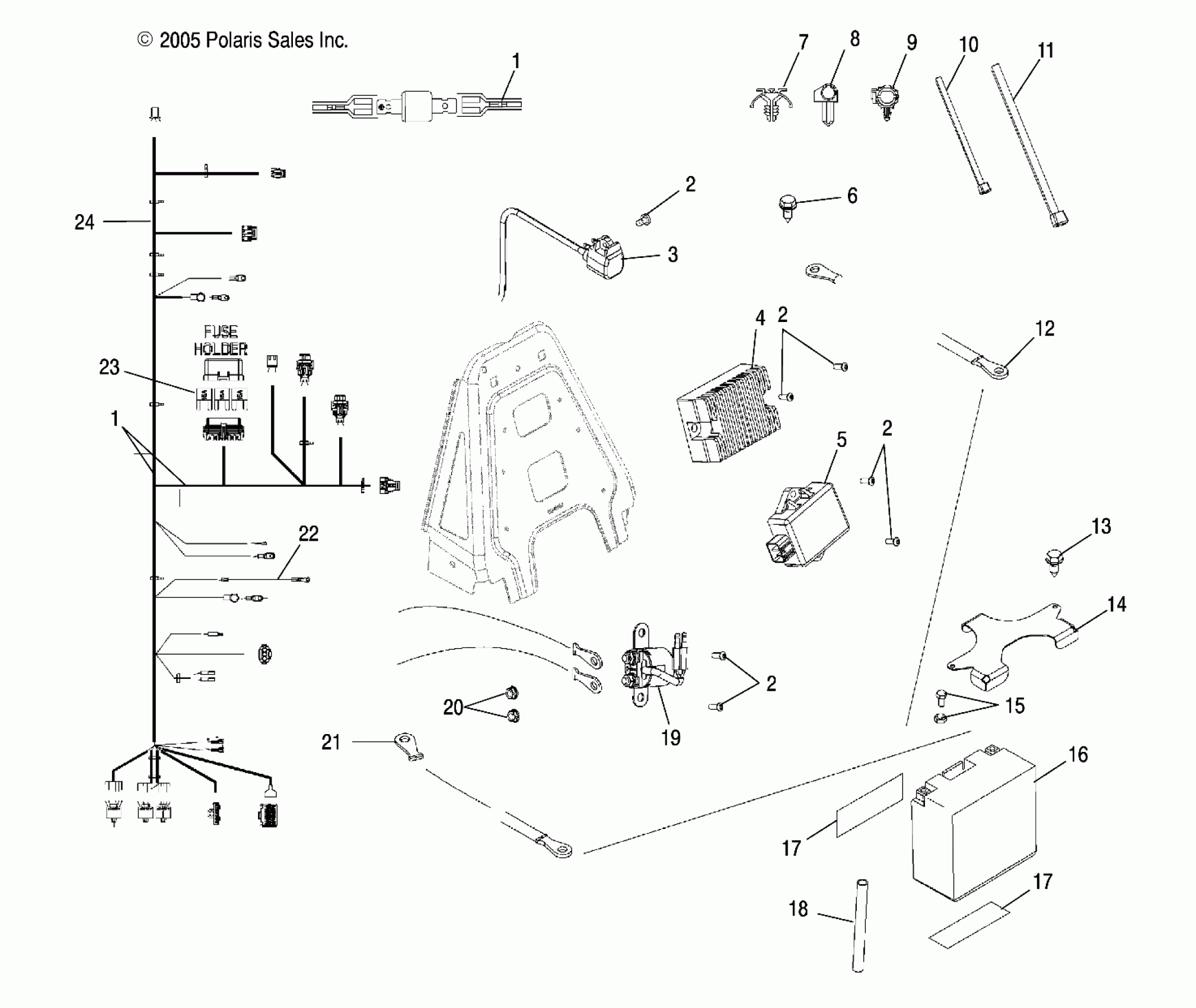

Polaris HAWKEYE 2X4/4X4 - A06LB27AA ELECTRICAL - A06LB27AA/LD27AA/AB/AC/AD (4999202079920207C09) Diagram

#

Description
Price

1

Diode

2410694

$12.13

1

Diode

2410694

$12.13

2

SCREW

7512024

$4.76

2

SCREW

7512024

$4.76

2

SCREW

7512024

$4.76

2

SCREW

7512024

$4.76

3

Coil, Ignition

3089860

Unavailable

4

Rectifier/Regulator

4011182

$324.35

5

CDI, Complete

3089862

Unavailable

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

7

MOUNT, CABLE TIE

7080965

$7.27

8

Clip

7670102

$2.38

9

CLIP, ROSEBUD

4020139

$4.76

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

Cable, Black, Battery/Frame

4011233

Unavailable

13

SCREW

7512026

$1.19

14

Bracket, Battery Hold Down, Black

5250157-067

Unavailable

15

Kit, Battery Bolt

2200361

Unavailable

16

Battery

4011359

$128.56

17

PAD-BATTERY

5810290

$7.27

17

PAD-BATTERY

5810290

$7.27

18

Tube, Vent

5433156

$1.67

19

Solenoid, Starter

4011483

$80.94

20

NUT, FLANGE

7547270

$3.97

21

Cable, Red ,Battery/Solenoid

4011287

Unavailable

22

Kit, Fisible Link, .8mm

2202607

$39.68

23

FUSE-MINI BLADE,15 AMP

2410280

$8.08

24

Harness, Main [Incl. 1,22,23, Decal]

2410610

Unavailable

24

Decal, Fuse Block

7173852

Unavailable
