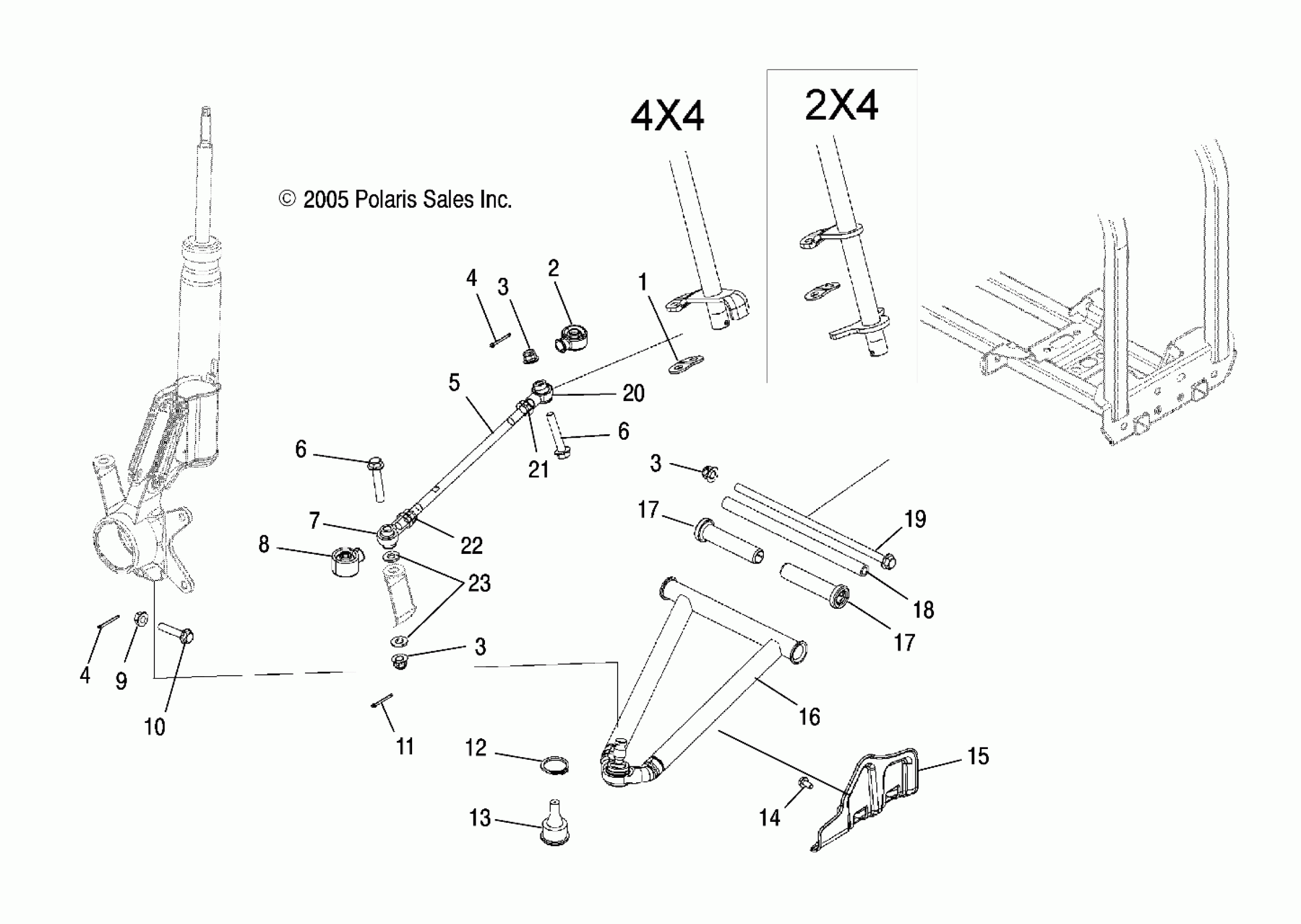

Polaris HAWKEYE 2X4/4X4 - A06LB27AA A-ARM, FRONT and TIE ROD - A06LB27AA/LD27AA/AB/AC/AD (4999202079920207B10) Diagram

#

Description
Price

1

Retainer

5248353

$3.03

2

Boot, Seal

5411291

Unavailable

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

3

Nut, Flange

7547313

$1.49

4

Pin, Cotter

7661203

$1.49

4

Pin, Cotter

7661203

$1.49

5

Rod, Tie

5134603

Unavailable

5

Asm., Tie Rod [Incl. 2,7,8,20,21,22]

1822645

Unavailable

6

Screw, Flange

7518605

Unavailable

6

Screw, Flange

7518605

Unavailable

7

Rod End, LH

7061135

$56.65

8

Boot, Seal

5411920

Unavailable

9

Nut, Flange

7547317

Unavailable

10

Screw, Flange

7518606

$3.19

11

Pin, Cotter

7661205

$1.49

12

Ring, Retainer, External

7710533

$2.39

13

Joint, Ball

7081263

$39.99

14

Screw [4x4]

7512084

$1.49

15

Shield, CV, LH, Black [4x4]

5436411-070

Unavailable

15

Shield, CV, RH, Black [4x4]

5436412-070

$32.37

16

A-Arm, 4x4, Black, LH

1542097-067

Unavailable

16

A-Arm, 4x4, Black, RH

1542098-067

Unavailable

17

Bushing, A-Arm, Long, Grey

5436220

Unavailable

17

Bushing, A-Arm, Long, Grey

5436220

Unavailable

18

Tube, Pivot

5134926

$28.32

19

Screw, Flange

7518458

$7.99

20

Rod End, RH

7061134

$55.99

21

Nut, Jam, RH

7547320

$4.76

22

Nut, Jam, LH

7547319

Unavailable

23

Washer, Flat

7556099

$1.59
